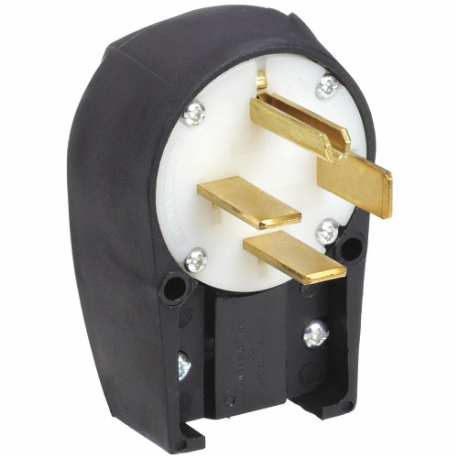

HUBBELL - BRYANT 8462ANPB Male Plug, Industrial/Commercial Grade, Angled, 60A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, 15-60P
Item: CQ2FZUModel: 8462ANPBCross Ref: 49YY39
7 In Stock
Ships within 2 days via
13.00% off
€80.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Blade Plug |
| Amps | 60A |
| Blade Material | Brass |
| Body Length | 4.19" |
| Connection Orientation | Angled |
| For Environment | Dry |
| For Location | Indoor |
| For Max. Cable Dia. | 1.38" |
| For Min. Cable Dia. | 5/8" |
| Grounding | Grounded |
| Housing Color | Black |
| Housing Material | Nylon |
| Hp | 10 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 6 AWG |
| Nema Plug Configuration | 15-60P |
| No. Of Blades | 4 |
| No. Of Poles | 3 |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-bryant-8462anpb.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Voltage | 250V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 10.64 |
| Ship width (cm) | 8.26 |
