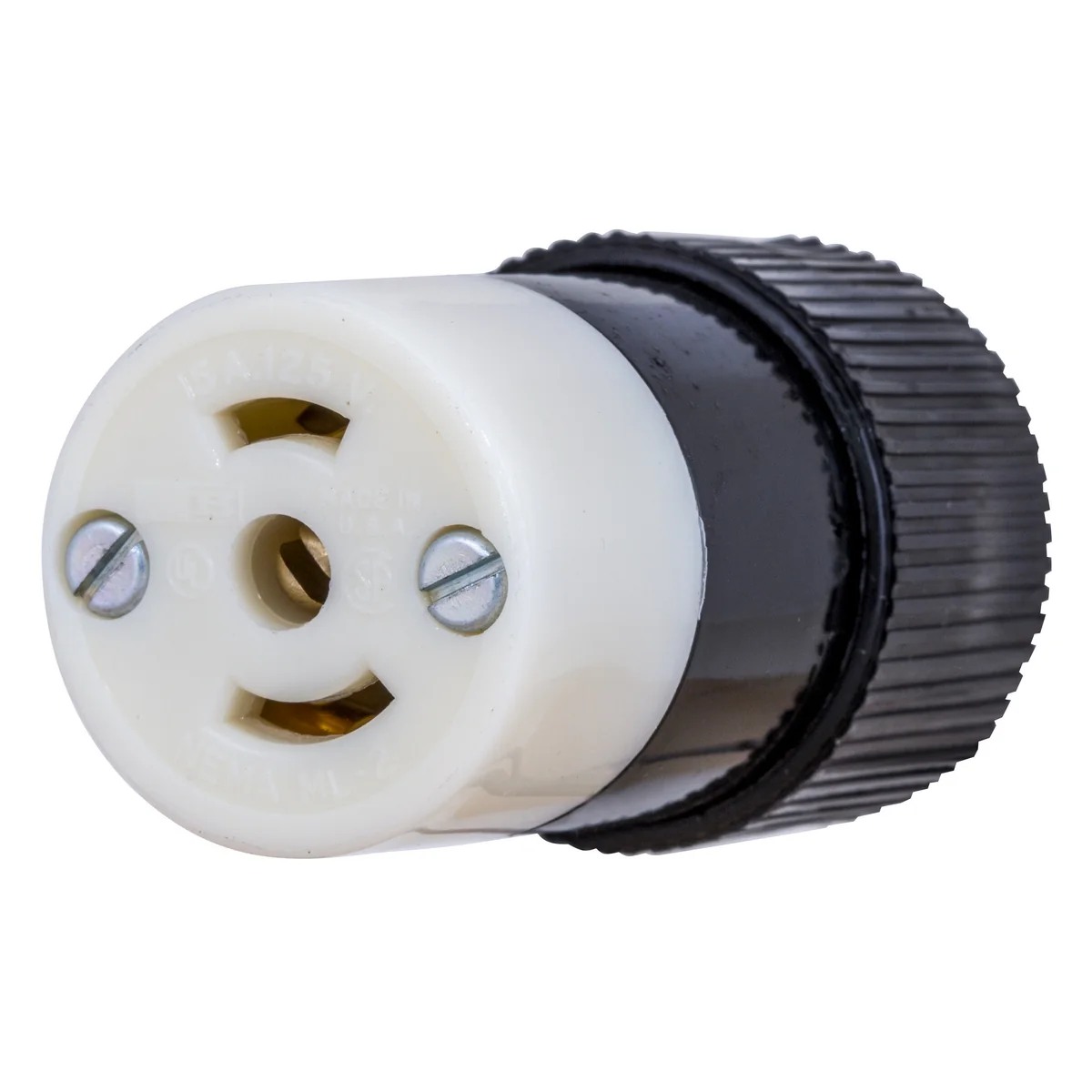

HUBBELL - BRYANT 7593NC Midget Locking Connector, ML2-15R, 15 A, 125V AC, 2 Poles, Black/White, Screw Terminals
Item: CQ2FXQModel: 7593NCCross Ref: 49YX74
7 In Stock
Ships within 2 days via
13.00% off
€28.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| For Environment | Dry |
| For Max. Cable Dia. | 5/8" |
| For Min. Cable Dia. | 0.281" |
| Grounding | Grounded |
| Housing Color | Black, White |
| Ip Rating | IP20 |
| Length | 1 1/4" |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 12 AWG |
| Midget Locking | Yes |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Receptacle Configuration | NEMA ML2-15R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Length | 1.25" |
| Phase | 1 |
| Product Datasheet | hubbell-bryant-7593nc.pdf |
| Resistance Properties | Shatter And Crack Resistant |
| Shrouded | No |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.46 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 3.18 |
