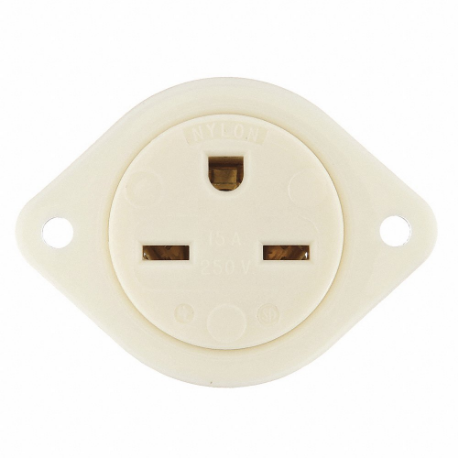

HUBBELL - BRYANT 5679 Flanged Receptacle, Single, 6-15R, 15 A, 250 VAC, White, 2 Poles, Screw Terminals
Item: CP8XTLModel: 5679Cross Ref: 49YY62
7 In Stock
Ships within 2 days via
13.00% off
€23.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Receptacle |
| Afci | No |
| Amps | 15A |
| Body Material | Nylon |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Depth | 1.47" |
| Face Dia. | 1.47" , 1.5" |
| Gfci | No |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | White |
| Hp | 1 1/2 hp |
| Mount Hole Center To Center Height | 2" |
| Mounting Location | Panel Mount |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 6-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Depth | 1.5" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-bryant-5679.pdf |
| Receptacle Type | Single |
| Special Resistance | Impact Resistant |
| Surge Protection | No |
| Voltage | 250V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 2.54 |
