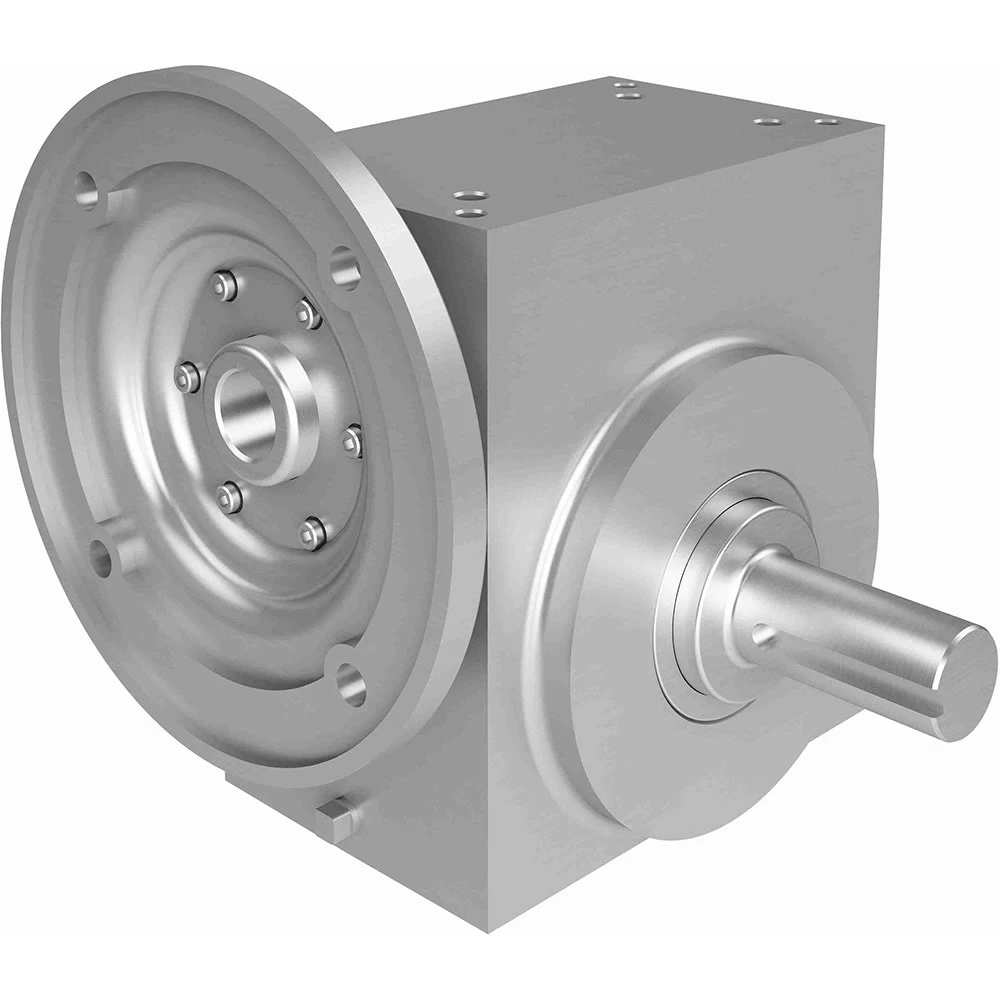

HUB CITY 0270-09250 Worm Reducer, 5.18 Hp, 1.500 Inch I.D, 1.125 Inch O.D, Stainless Steel
Get it by Tuesday, Mar 3
€3,657.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" |
| Center Distance Range | Above 3.25" |
| Frame Size | 180TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 5 hp to 7 1/2 hp |
| Input Dia. | 1 1/8" |
| Input Style | C Face Quill |
| Keyway Size | 1/4" x 1/8" |
| Max. Input Hp | 5 9/50 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Rpm | 87.5 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Overhung Load | 1100 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | C |
| Torque Rating | 3267 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 38.1 |
Product Variants
| Product | Model | Overhung Load | Max. Input Hp | Frame Size | Gear Type | Housing Material | Output Type | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-09150 | 1100 lbs.-in. | - | - | Worm Right Angle | Stainless Steel | - | - | - | RFQ
|
 |
0270-09151 | 1100 lbs.-in. | - | - | Worm Right Angle | Stainless Steel | - | - | - | RFQ
|
|
0270-09152 | 1100 lbs.-in. | - | - | Worm Right Angle | Stainless Steel | - | - | - | RFQ
|
|
0270-09153 | 1100 lbs.-in. | - | - | Worm Right Angle | Stainless Steel | - | - | - | RFQ
|
 |
0270-09154 | 1100 lbs.-in. | - | - | Worm Right Angle | Stainless Steel | - | - | - | RFQ
|
|
0270-09155 | 1100 | - | 56C | Worm Right Angle | - | Shaft | 15 | - | RFQ
|
|
0270-09156 | 1100 lbs.-in. | - | - | Worm Right Angle | Stainless Steel | - | - | - | RFQ
|
