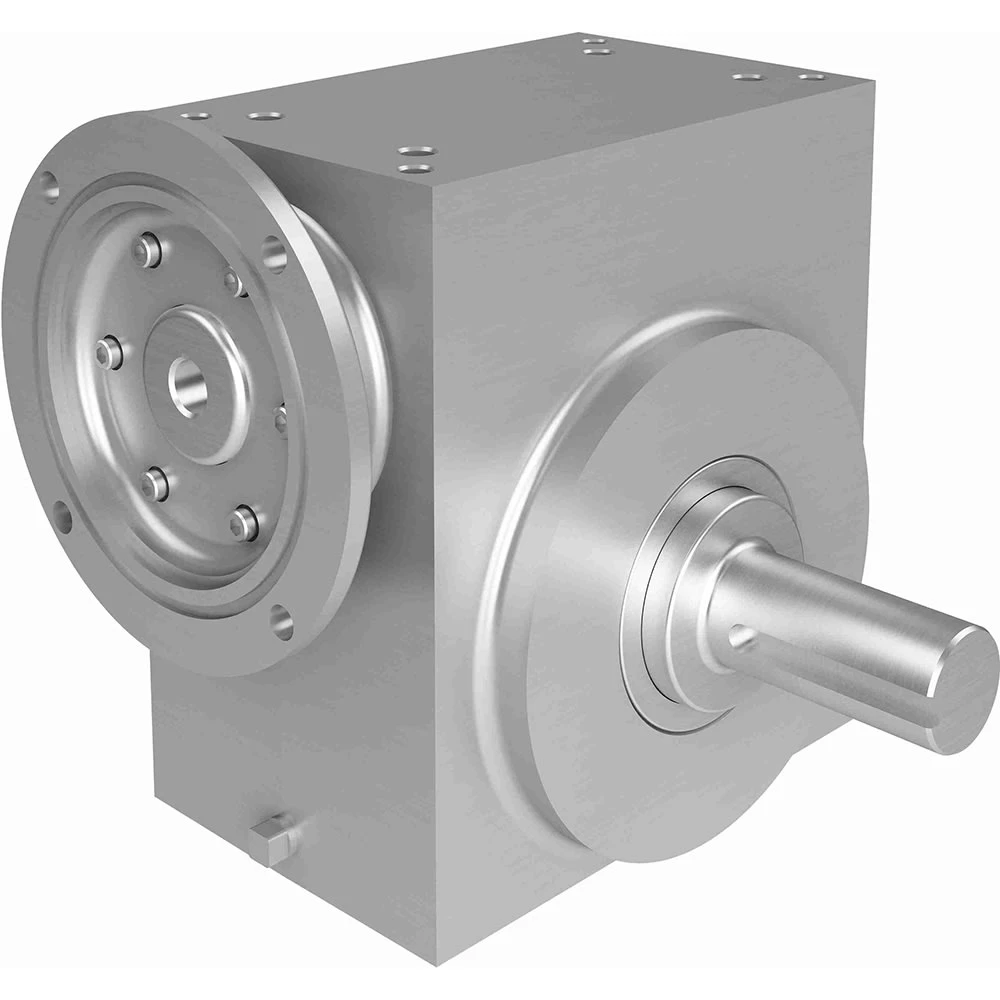

HUB CITY 0270-09217 Worm Reducer, 2.926 Hp, 1.500 Inch I.D, 0.875 Inch O.D, Stainless Steel
Get it by Thursday, Jul 16
€3,609.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" , Above 3.25" |
| Frame Size | 140TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp | 2 hp to 3 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 2.926 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Speed | 43.75 RPM |
| Output Torque | 2500 lbs.-in. to 5000 lbs.-in. |
| Overhung Load | 1100 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 40:1 |
| Service Factor | 1 |
| Style | C |
| Torque | 3303 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 38.1 |
Product Variants
| Product | Model | max. input hp | center distance | input style | ratio | output | motor frame size | frame size | gear type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-09171 | 2.114 hp | 3 1/4" | C Face Quill | 60:1 | - | - | 56C | Worm Right Angle | €3,609.58 | |
 |
0270-09183 | 2.114 hp | 3 1/4" | C Face Quill | 60:1 | - | - | 56C | Worm Right Angle | €3,609.58 | |
 |
0270-09162 | - | 3 1/4" | C Face Quill | 5:1 | 350 RPM | 56C | - | Worm Right Angle | - | RFQ
|
 |
0270-09161 | - | 3 1/4" | C Face Quill | 100:1 | 17.5 RPM | 56C | - | Worm Right Angle | - | RFQ
|
|
0270-09166 | - | 3 1/4" | C Face Quill | 20:1 | 87.5 RPM | 56C | - | Worm Right Angle | - | RFQ
|
|
0270-09197 | - | 3 1/4" | C Face Quill | 100:1 | 17.5 RPM | 140TC | - | Worm Right Angle | - | RFQ
|
|
0270-09204 | - | 3 1/4" | C Face Quill | 30:1 | 58.3 RPM | 140TC | - | Worm Right Angle | - | RFQ
|
