HUB CITY 0270-08899 Worm Reducer, 0.307 Hp, 1.250 Inch I.D, 1.125 Inch O.D, Stainless Steel
Get it by Tuesday, Jul 14
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" Thru 3.25" , 2 2/5" |
| Frame Size | 180TC |
| Gear Type | Worm Right Angle |
| Height | 11 |
| Hp | 1/3 hp (Less Than 1/2 hp) |
| Input Dia. | 1 1/8" |
| Input Flange | 180TC |
| Input Hp | 0.307 hp |
| Input Style | Quill |
| Input Type | Motor Frame |
| Key Way Size | 1/4" x 1/8" |
| Length | 11 |
| Output | Hollow |
| Output Dia. | 1 1/4" |
| Output Shaft Direction | Left, Right |
| Output Speed | 17.5 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Output Torque Rating | 648 lbs.-in. |
| Output Type | Hollow Bore |
| Paint/coating | Stainless Steel |
| Ratio | 100:01:00 , 100:1 to 250:1 |
| Series | SSW240 Series |
| Service Factor | 1 |
| Style | A |
| Width | 9 |
Shipping Info:
| Ship weight (kg) | 21.15 |
Product Variants
| Product | Model | output torque | max. input hp | center distance | input style | ratio | output | frame size | output type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

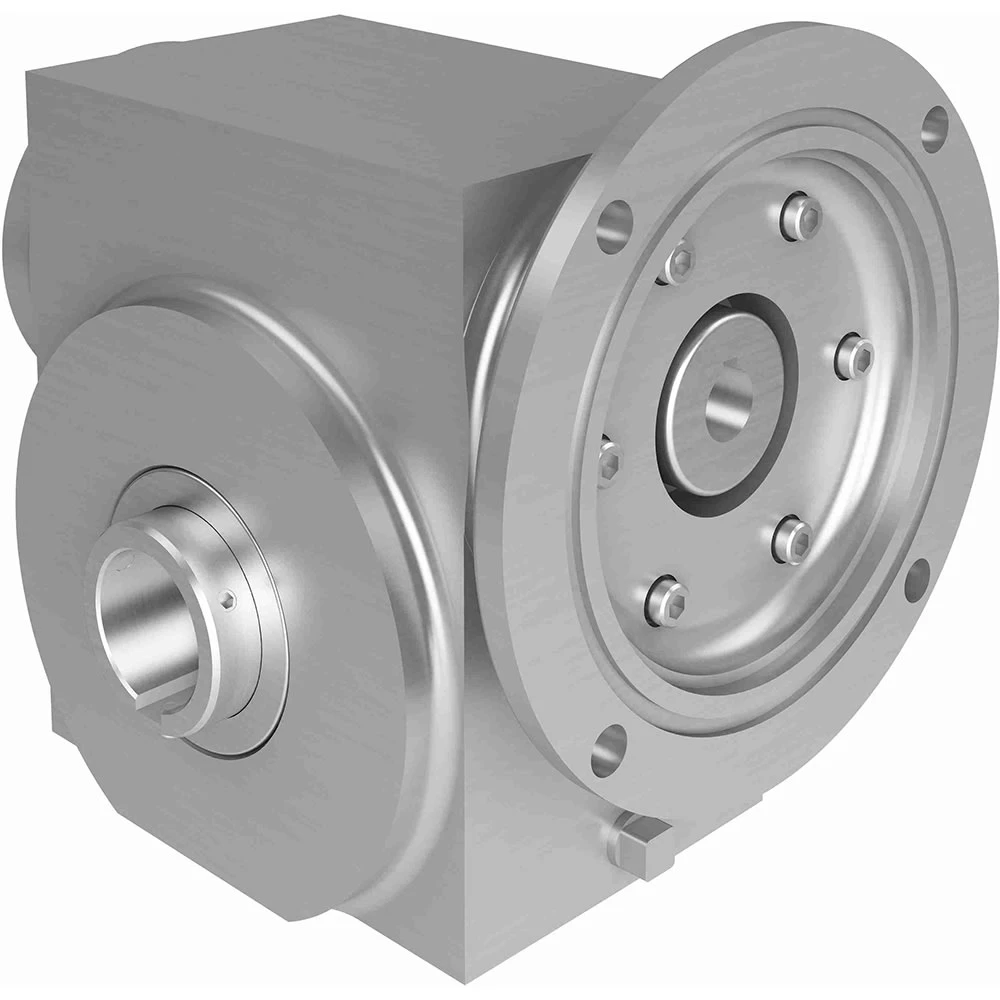

0270-08956 | 1000 lbs.-in. to 2500 lbs.-in. | - | 1" to 3 1/4" | C Face Quill | 50:1 | 35 RPM | - | - | €3,074.36 | |
 |
0270-08962 | - | - | 2.38" | C Face Quill | 10:1 | 175 RPM | - | - | - | RFQ
|
 |
0270-08806 | 1000 lbs.-in. to 2500 lbs.-in. | 3.564 hp | 2.38" | C Face Quill | 10:1 | - | 140TC | - | - | RFQ
|
 |
0270-08839 | - | - | 2.38" | C Face Quill | 100:1 | 17.5 RPM | - | - | - | RFQ
|
|
0270-08804 | - | - | 2.38" | C Face Quill | 5:1 | 350 RPM | - | - | - | RFQ
|
 |

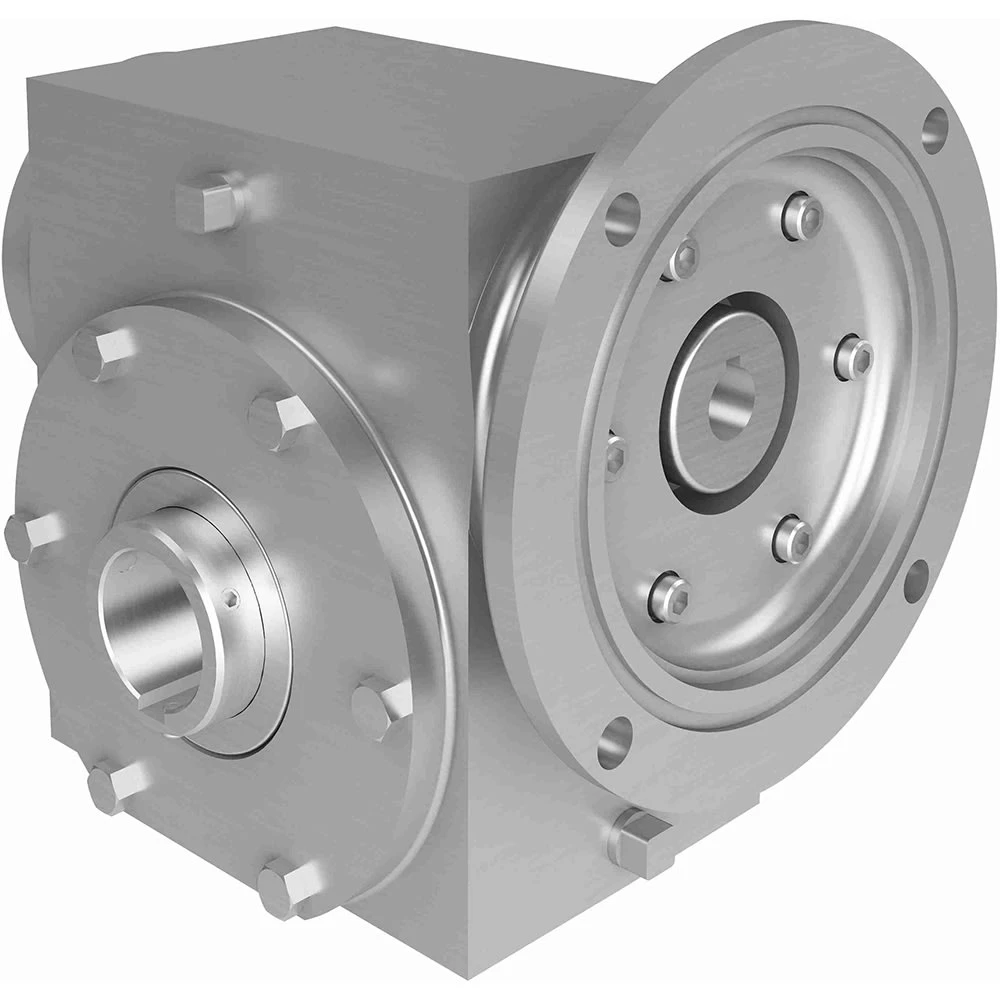

0270-08816 | 500 lbs.-in. to 1000 lbs.-in. | 5.323 hp | 2.38" | C Face Quill | 5:1 | - | 140TC | - | €3,074.36 | |
 |
0270-08935 | 500 lbs.-in. to 1000 lbs.-in. | - | 2 2/5" | Quill | 100:01:00 | Hollow | 56C | Hollow Bore | - | RFQ
|
