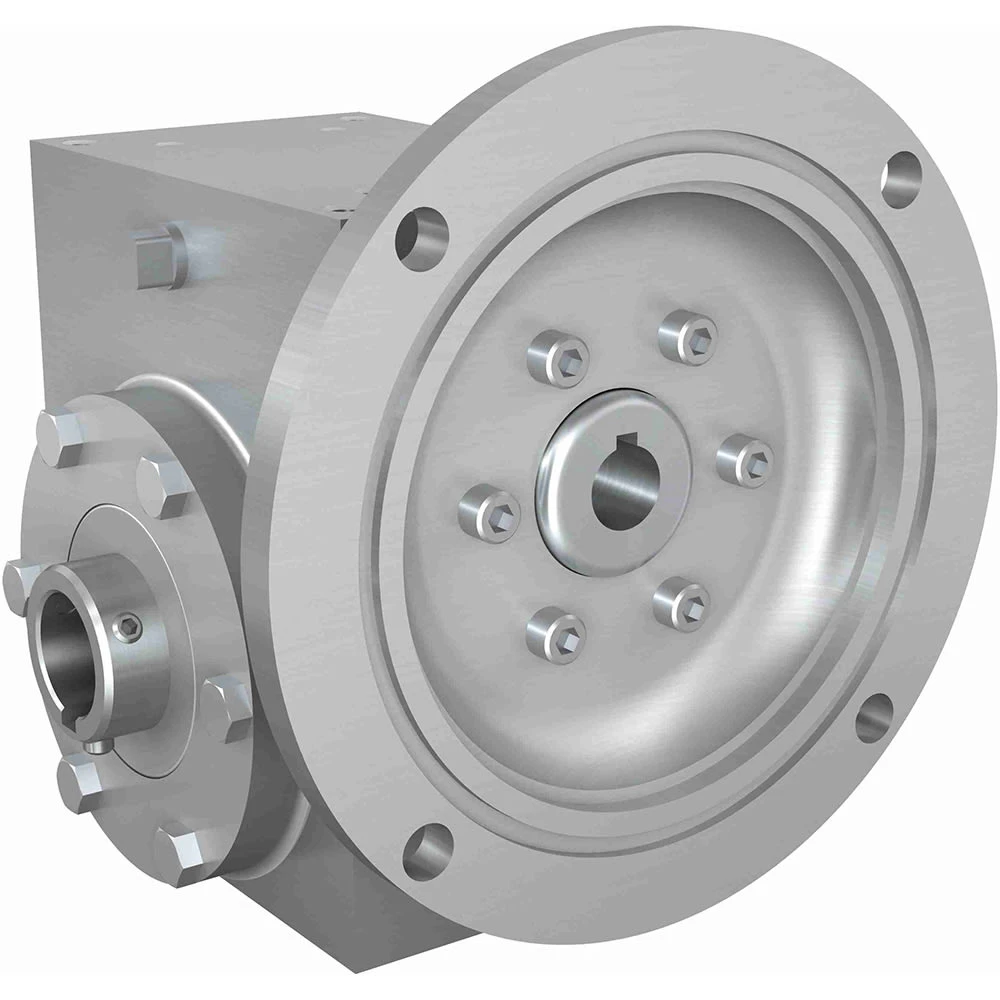

HUB CITY 0270-07788 Worm Reducer, 0.208 Hp, 0.625 Inch I.D, 0.875 Inch O.D, Stainless Steel
Get it by Tuesday, Dec 23
€2,157.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 140TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 0 hp to 1/2 hp, 1/3 hp |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 0.208 hp |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| No. Of Gear Reductions | 1 |
| Output Dia. | 5/8" |
| Output Rpm | 21.9 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 250 lbs.-in. to 500 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 80:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 356 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Frame Size | Gear Type | Max. Input Hp | Housing Material | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|
 |
0270-07770 | 56C | Worm Right Angle | - | Stainless Steel | - | €2,054.89 | |
 |
0270-07733 | - | Worm Right Angle | - | Stainless Steel | Horizontal Standard | - | RFQ
|
 |
0270-07962 | - | Worm Right Angle | - | Stainless Steel | Horizontal Standard | - | RFQ
|
 |
0270-07752 | 56C | Worm Right Angle | - | Stainless Steel | - | €2,157.62 | |
|
0270-07832 | - | Worm Right Angle | - | Stainless Steel | Horizontal Standard | - | RFQ
|
|
0270-07961 | - | Worm Right Angle | - | Stainless Steel | Horizontal Standard | - | RFQ
|
|
0270-08008 | - | Worm Right Angle | - | Stainless Steel | Horizontal Standard | - | RFQ
|
