HUB CITY 0270-07768 Worm Reducer, 1.625 Hp, 1.000 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Monday, Aug 31
€2,157.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" , 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 1 5/8 hp |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Speed | 175 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 10:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 528 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Output Dia. | Output Speed | Output Torque | Hp | Input Style | Output Shaft Direction | Style | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

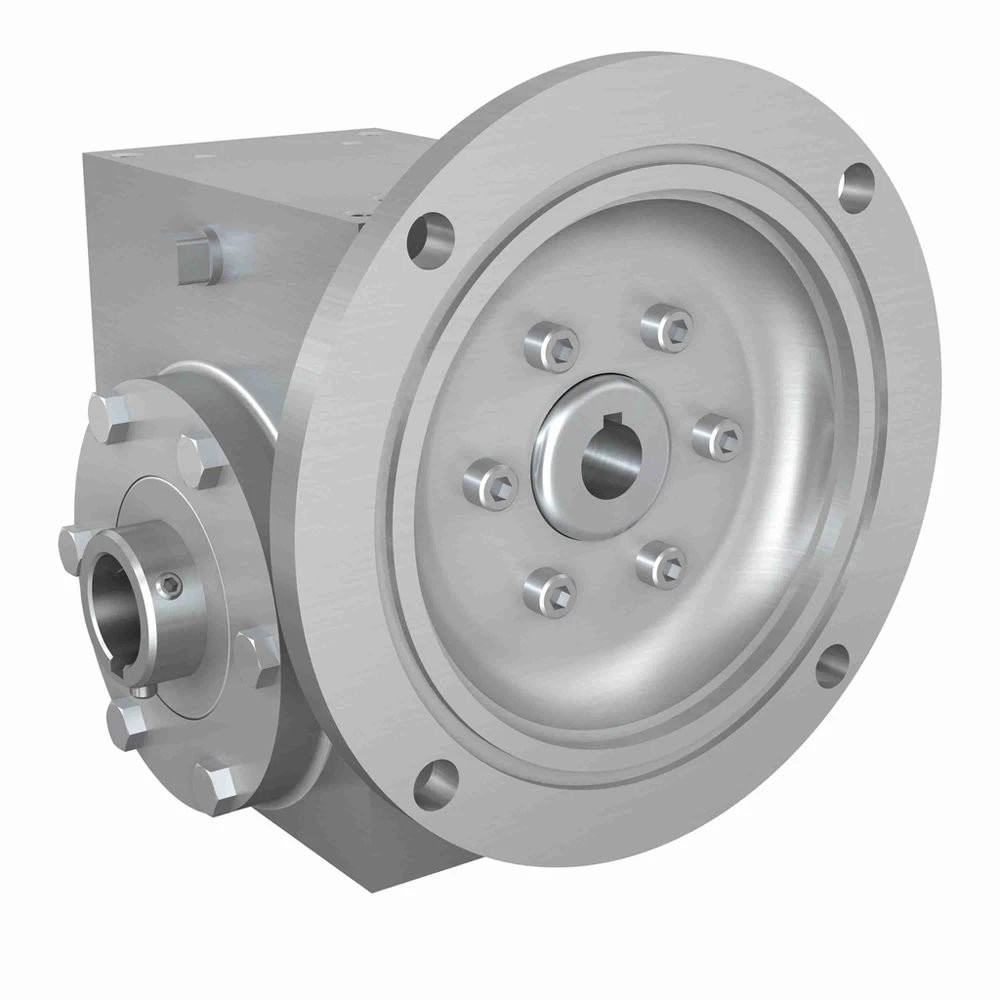

0270-07769 | 1" | 116.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1 hp to 2 hp | C Face Quill | Left Or Right | A | 15:1 | €1,868.06 | |
 |
0270-07772 | 1" | 58.3 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1/2 hp to 1 hp | C Face Quill | Left Or Right | A | 30:1 | €2,054.89 | |
 |
0270-07773 | 1" | 43.75 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1/2 hp to 1 hp | C Face Quill | Left Or Right | A | 40:1 | €2,157.62 | |
 |
0270-07774 | 1" | 35 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1/2 hp to 1 hp | C Face Quill | Left Or Right | A | 50:1 | €2,157.62 | |
 |
0270-07775 | 1" | 29.2 RPM | 500 lbs.-in. to 1000 lbs.-in. | 0 hp to 1/2 hp, 1/3 hp | C Face Quill | Left Or Right | A | 60:1 | €2,054.89 | |
 |

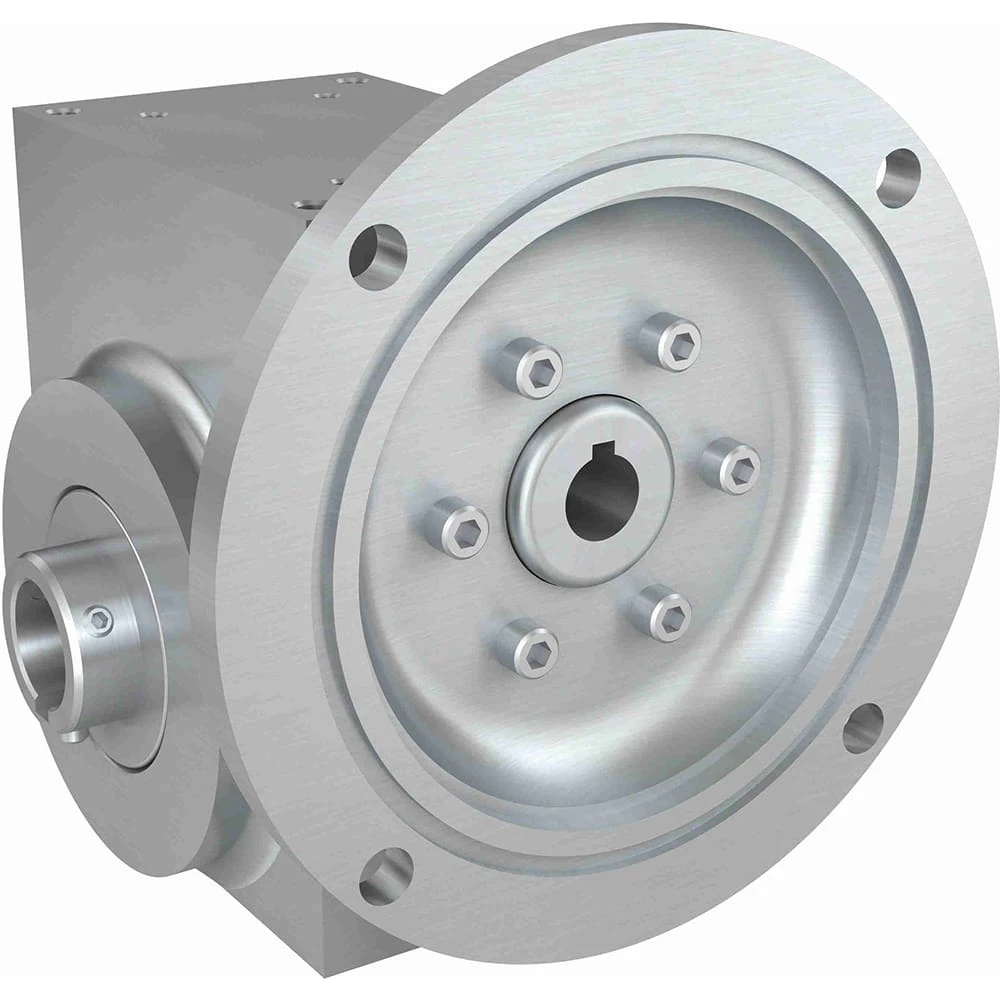

0270-07950 | 1" | 87.5 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1 hp to 2 hp | C Face Quill | Left Or Right | B | 20:1 | €2,157.62 | |
 |

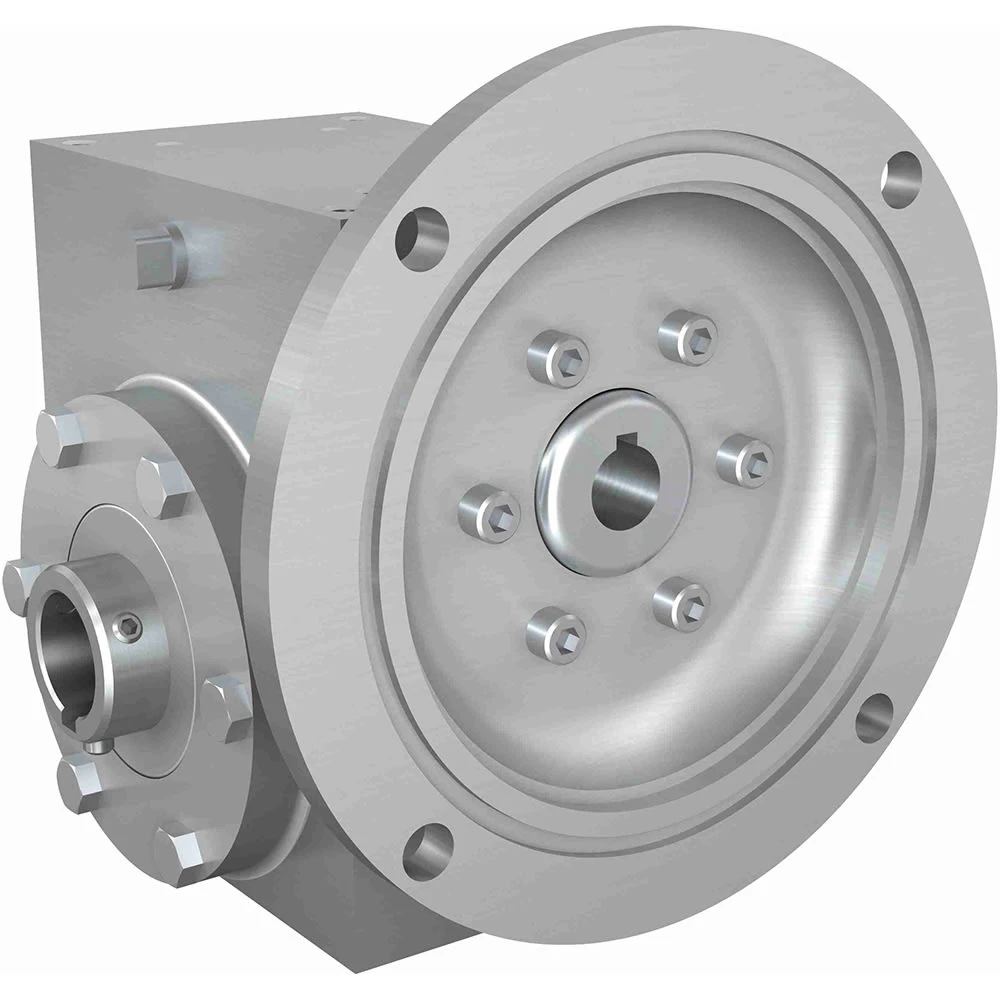

0270-07771 | 1" | 70 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1/2 hp to 1 hp | C Face Quill | Left Or Right | A | 25:1 | €2,157.62 |
