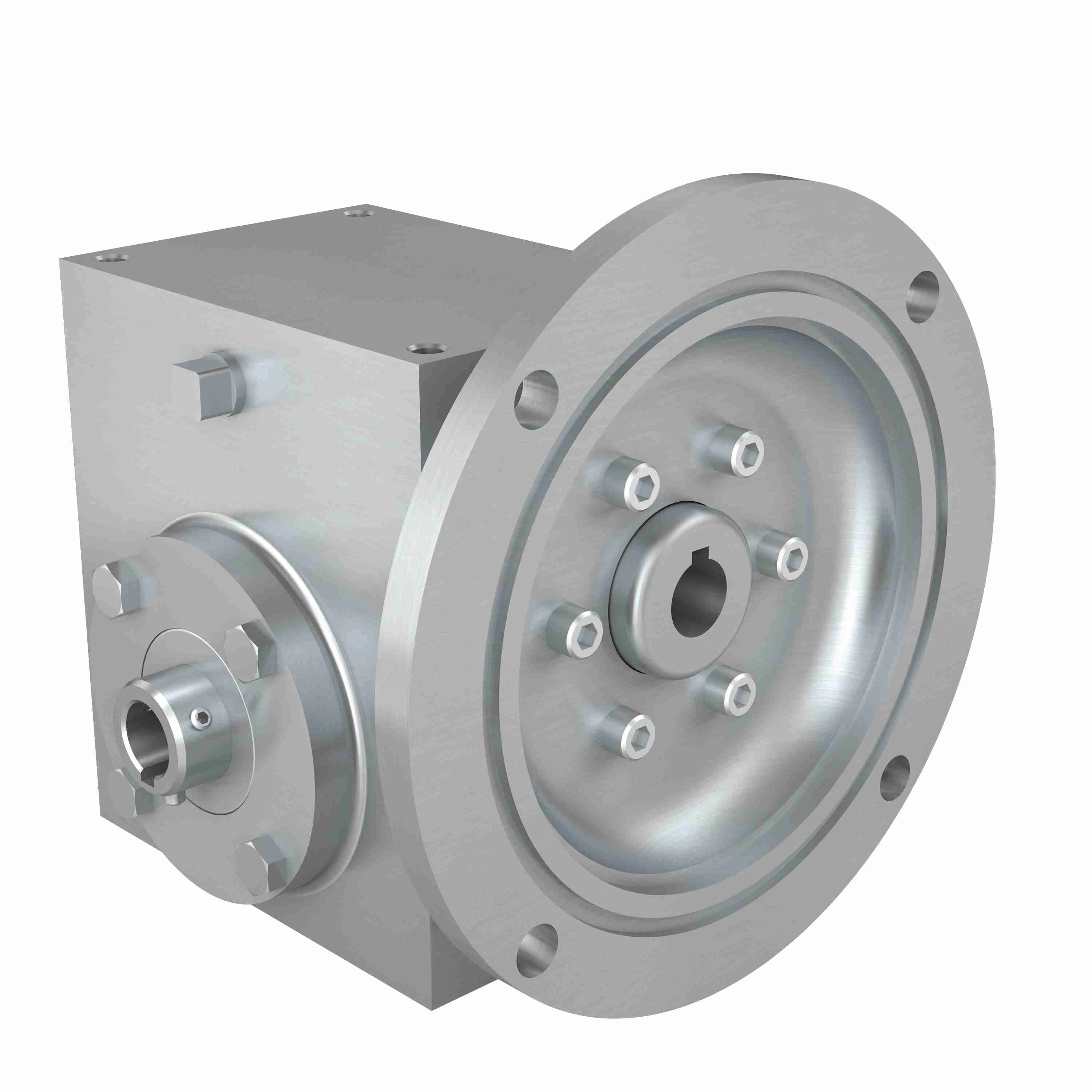

HUB CITY 0270-07490 Worm Reducer, 0.464 Hp, 0.625 Inch I.D, 0.875 Inch O.D, Stainless Steel
Get it by Friday, Aug 28
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1.54" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Dia. | 7/8" |
| Input Hp | 58/125 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 140TC |
| Mounting Style | A |
| Output | 35 RPM |
| Output Dia. | 5/8" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 494 lbs.-in. |
| Ratio | 50:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Input Dia. | Motor Frame Size | Output Torque Rating | Mounting Style | Style | Ratio | Output | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-07472 | 5/8" | 56C | 402 lbs.-in. | A | A | 10:1 | 175 RPM | Stainless Steel | €2,024.38 | |
 |
0270-07476 | 5/8" | 56C | 478 lbs.-in. | A | A | 30:1 | 58.3 RPM | Stainless Steel | €2,024.38 | |
 |
0270-07522 | 7/8" | 140TC | 518 lbs.-in. | B | B | 20:1 | 87.5 RPM | Stainless Steel | - | RFQ
|
 |
0270-07474 | 5/8" | 56C | 518 lbs.-in. | A | A | 20:1 | 87.5 RPM | Stainless Steel | - | RFQ
|
 |
0270-07526 | 7/8" | 140TC | 494 lbs.-in. | B | B | 50:1 | 35 RPM | Stainless Steel | - | RFQ
|
|
0270-07473 | 5/8" | 56C | 446 lbs.-in. | A | A | 15:1 | 116.7 RPM | Stainless Steel | - | RFQ
|
|
0270-07513 | 5/8" | 56C | 520 lbs.-in. | B | B | 40:1 | 43.75 RPM | Stainless Steel | - | RFQ
|
