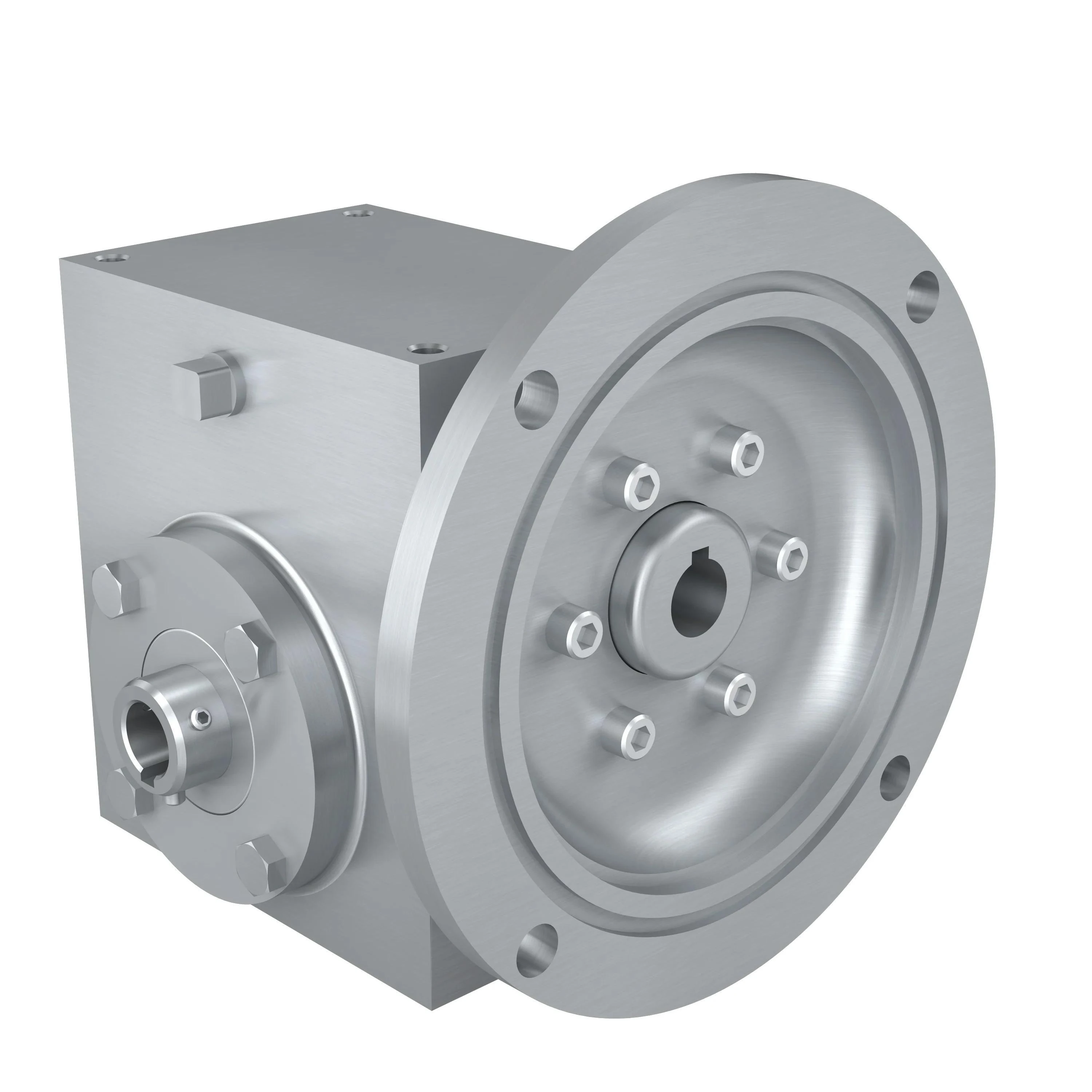

HUB CITY 0270-07479 Worm Reducer, 0.391 Hp, 0.625 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Monday, Dec 22
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1.54" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Diameter | 5/8" |
| Input Hp | 0.391 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 56C |
| Mounting Style | A |
| Output | 29.2 RPM |
| Output Diameter | 5/8" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 462 lbs.-in. |
| Ratio | 60:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Gear Type | Housing Material | Price | |
|---|---|---|---|---|---|
 |
0270-07472 | Worm Right Angle | Stainless Steel | €2,024.38 | |
 |

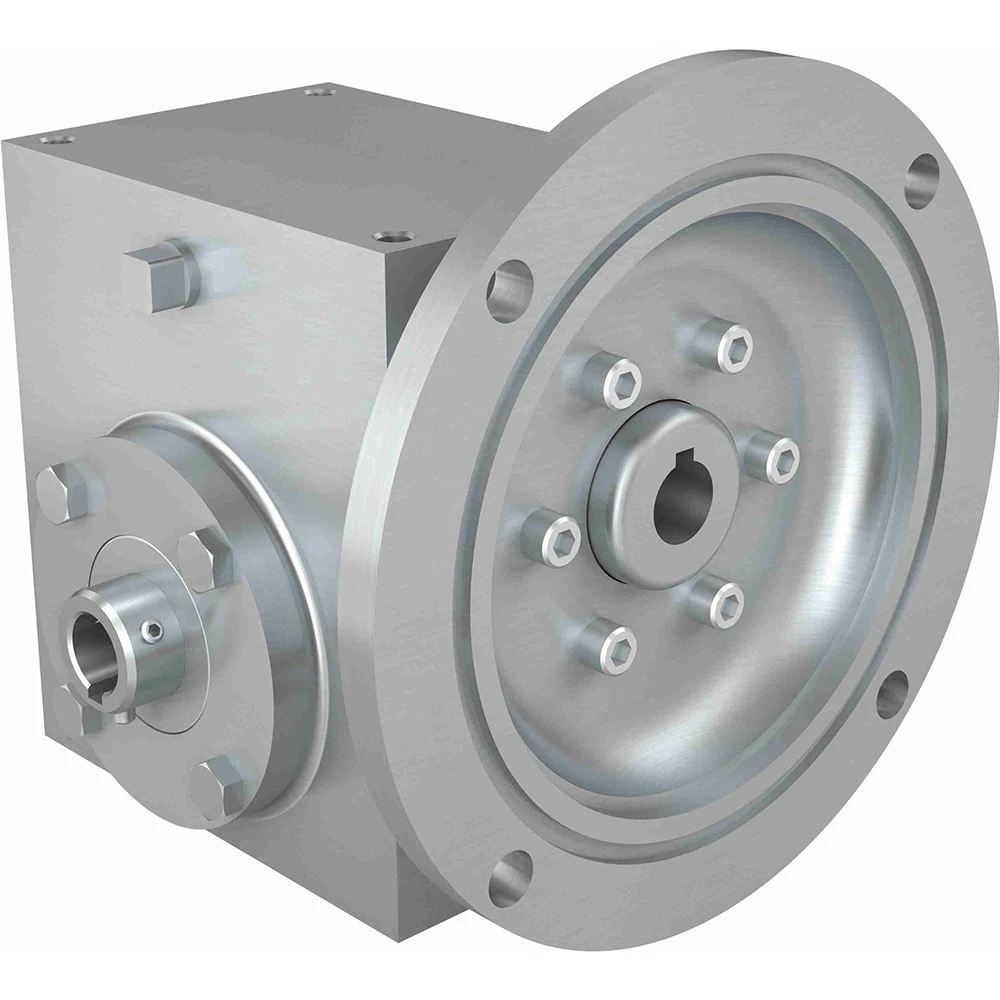

0270-07476 | Worm Right Angle | Stainless Steel | €2,024.38 | |
 |

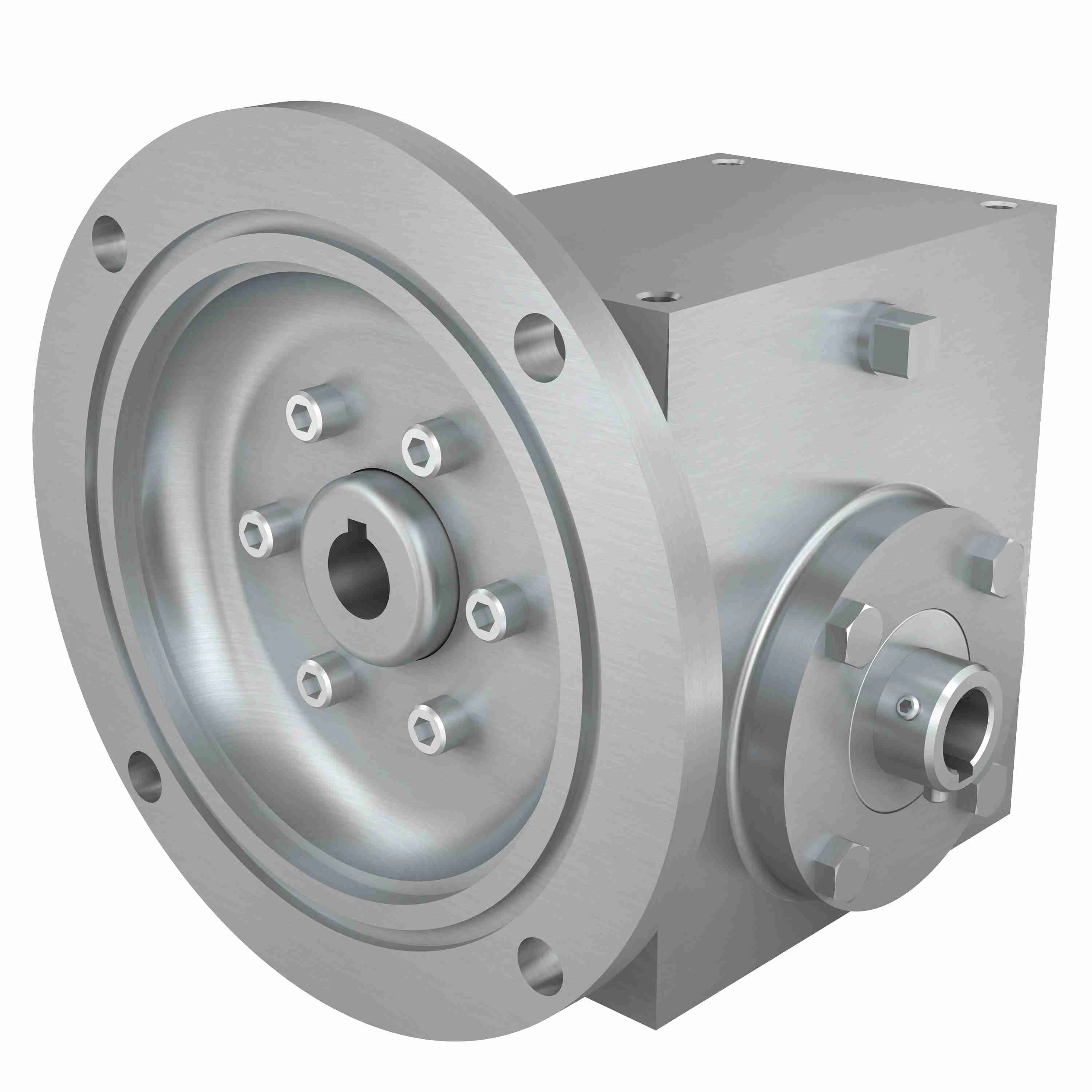

0270-07522 | Worm Right Angle | Stainless Steel | - | RFQ
|
|
0270-07474 | Worm Right Angle | Stainless Steel | - | RFQ
|
 |

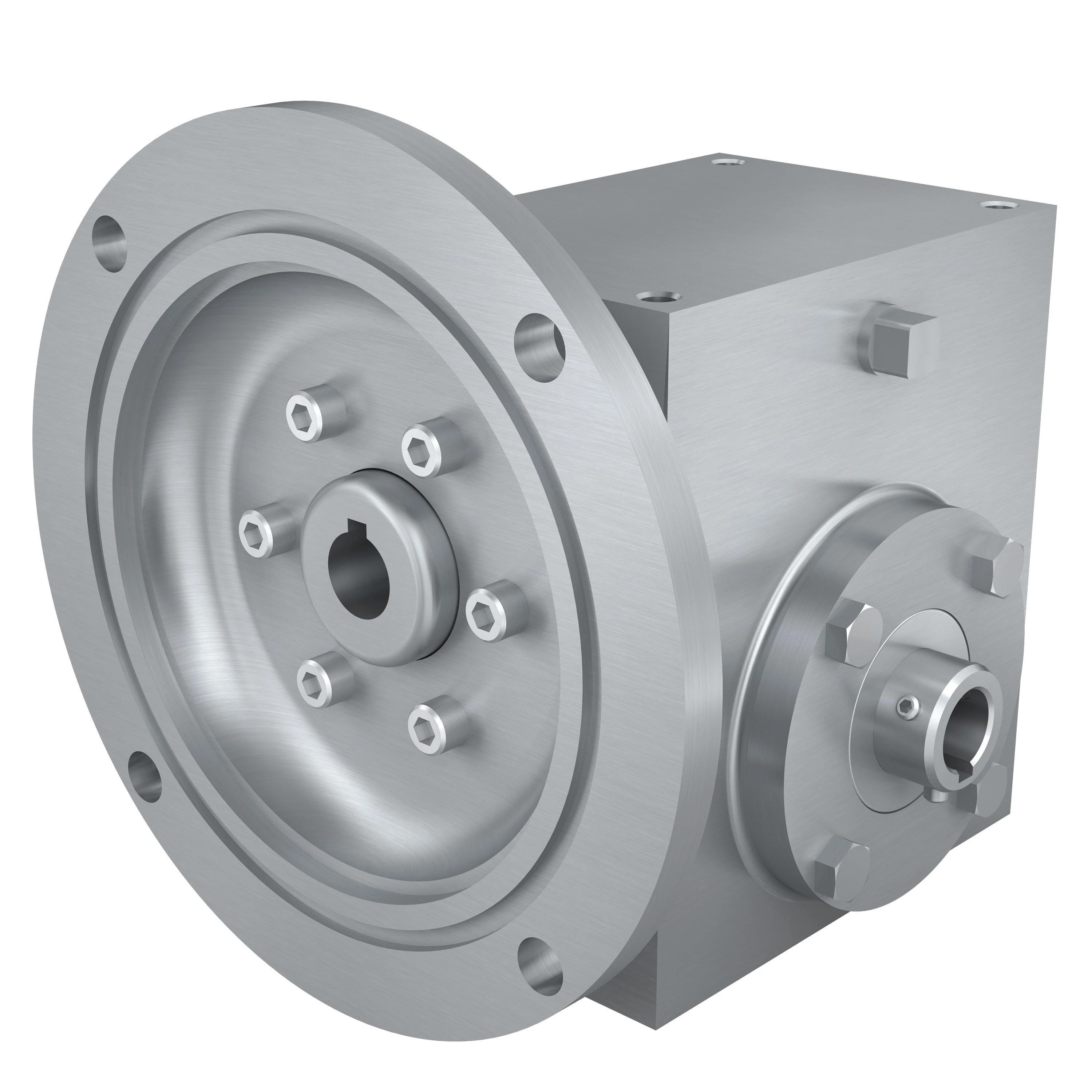

0270-07526 | Worm Right Angle | Stainless Steel | - | RFQ
|
|
0270-07473 | Worm Right Angle | Stainless Steel | - | RFQ
|
|
0270-07513 | Worm Right Angle | Stainless Steel | - | RFQ
|
