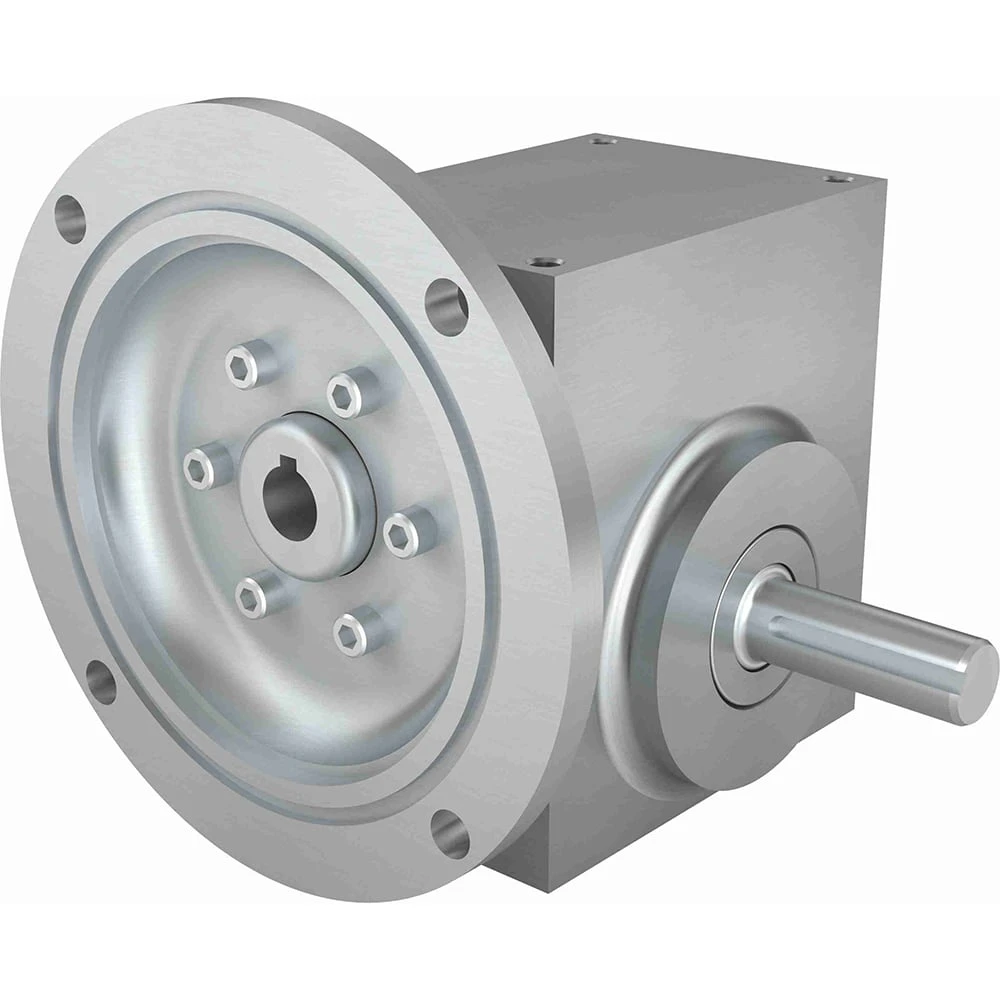

HUB CITY 0270-07415 Worm Reducer, 0.752 Hp, 0.750 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Sep 1
€1,566.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1.54" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Dia. | 5/8" |
| Input Hp | 94/125 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 56C |
| Mounting Style | C |
| Output | 70 RPM |
| Output Dia. | 3/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Torque Rating | 503 lbs.-in. |
| Overhung Load | 860 lbs.-in. |
| Ratio | 25:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | C |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Input Dia. | Motor Frame Size | Output Torque Rating | Mounting Style | Output Shaft Direction | Style | Ratio | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-07416 | 5/8" | 56C | 478 lbs.-in. | C | Right | C | 30:1 | 58.3 RPM | €1,678.52 | |
 |
0270-07401 | 5/8" | 56C | 446 lbs.-in. | B | Left | B | 15:1 | 116.7 RPM | €1,678.52 | |
 |
0270-07404 | 5/8" | 56C | 478 lbs.-in. | B | Left | B | 30:1 | 58.3 RPM | €1,678.52 | |
 |
0270-07405 | 5/8" | 56C | 520 lbs.-in. | B | Left | B | 40:1 | 43.75 RPM | €1,678.52 | |
 |
0270-07407 | 5/8" | 56C | 462 lbs.-in. | B | Left | B | 60:1 | 29.2 RPM | €1,678.52 | |
 |
0270-07413 | 5/8" | 56C | 446 lbs.-in. | C | Right | C | 15:1 | 116.7 RPM | €1,678.52 | |
 |
0270-07419 | 5/8" | 56C | 462 lbs.-in. | C | Right | C | 60:1 | 29.2 RPM | €1,678.52 |
