HUB CITY 0270-06902 Worm Reducer, 4.956 Hp, 1.125 Inch I.D, 1.438 Inch O.D, Stainless Steel
Get it by Thursday, Dec 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.63" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Diameter | 1 1/8" |
| Input Hp | 4 239/250 hp |
| Input Style | C Face Quill |
| Keyway | 1/4" x 1/8" |
| Motor Frame Size | 180TC |
| Mounting Style | A |
| Output | 233.3 RPM |
| Output Diameter | 1.438" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 1235 lbs.-in. |
| Ratio | 8.02:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 30.48 |
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Type | Housing Material | Price | |
|---|---|---|---|---|---|---|---|
 |
0270-06763 | 2.145 hp | 56C | Worm Right Angle | Stainless Steel | €3,070.12 | |
 |
0270-06752 | 1.695 hp | 56C | Worm Right Angle | Stainless Steel | €3,546.01 | |
 |
0270-06760 | 3.614 hp | 56C | Worm Right Angle | Stainless Steel | €3,546.01 | |
 |

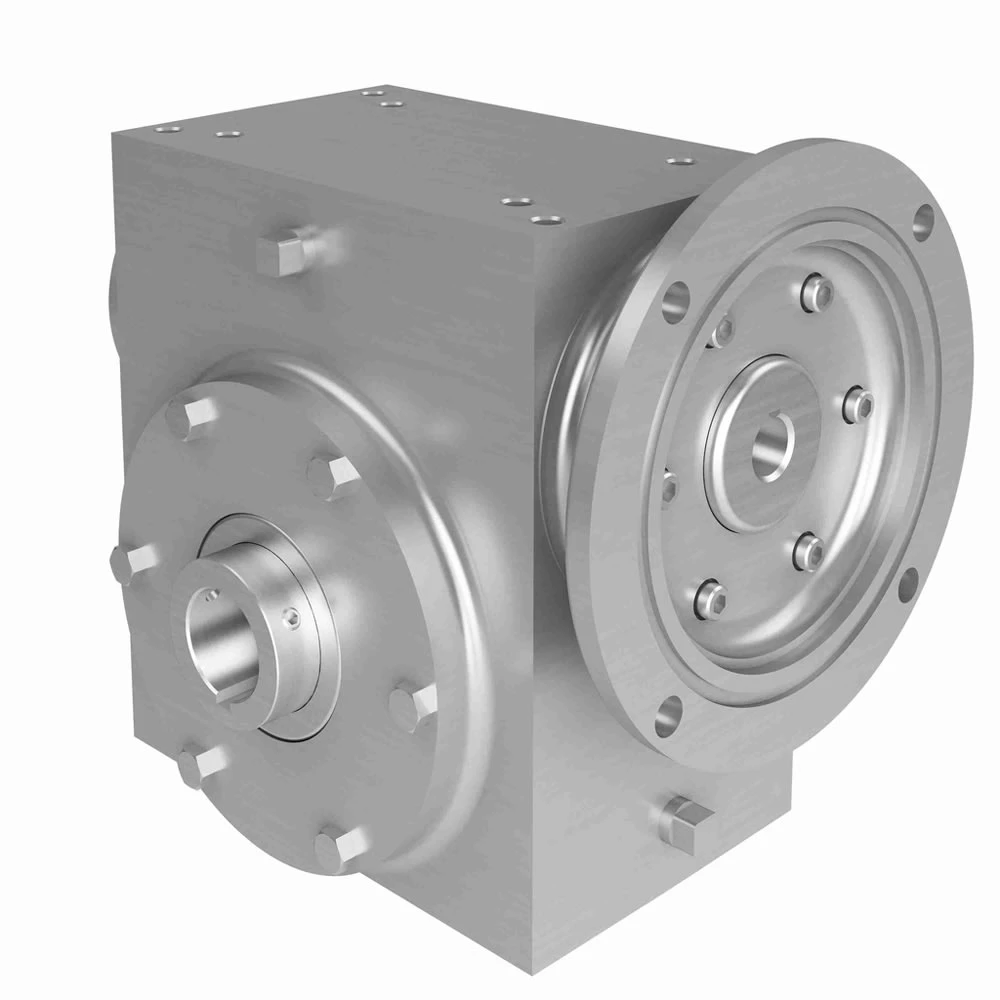

0270-06761 | 2.965 hp | 56C | Worm Right Angle | Stainless Steel | €3,546.01 | |
 |

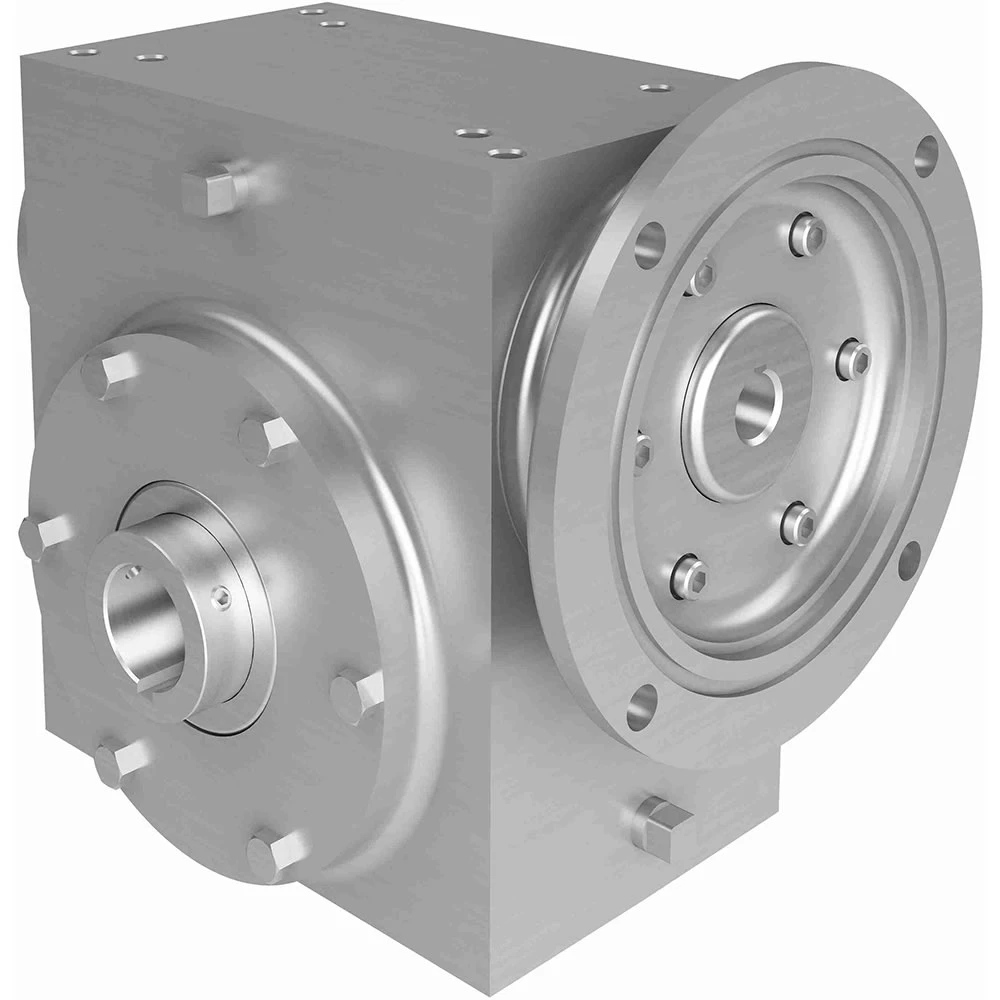

0270-06753 | 1 21/50 hp | 56C | Worm Right Angle | Stainless Steel | €3,070.12 | |
 |
0270-06751 | 2.145 hp | 56C | Worm Right Angle | Stainless Steel | €3,070.12 | |
 |
0270-06714 | 2.487 hp | 56C | Worm Right Angle | Stainless Steel | €3,546.01 |
