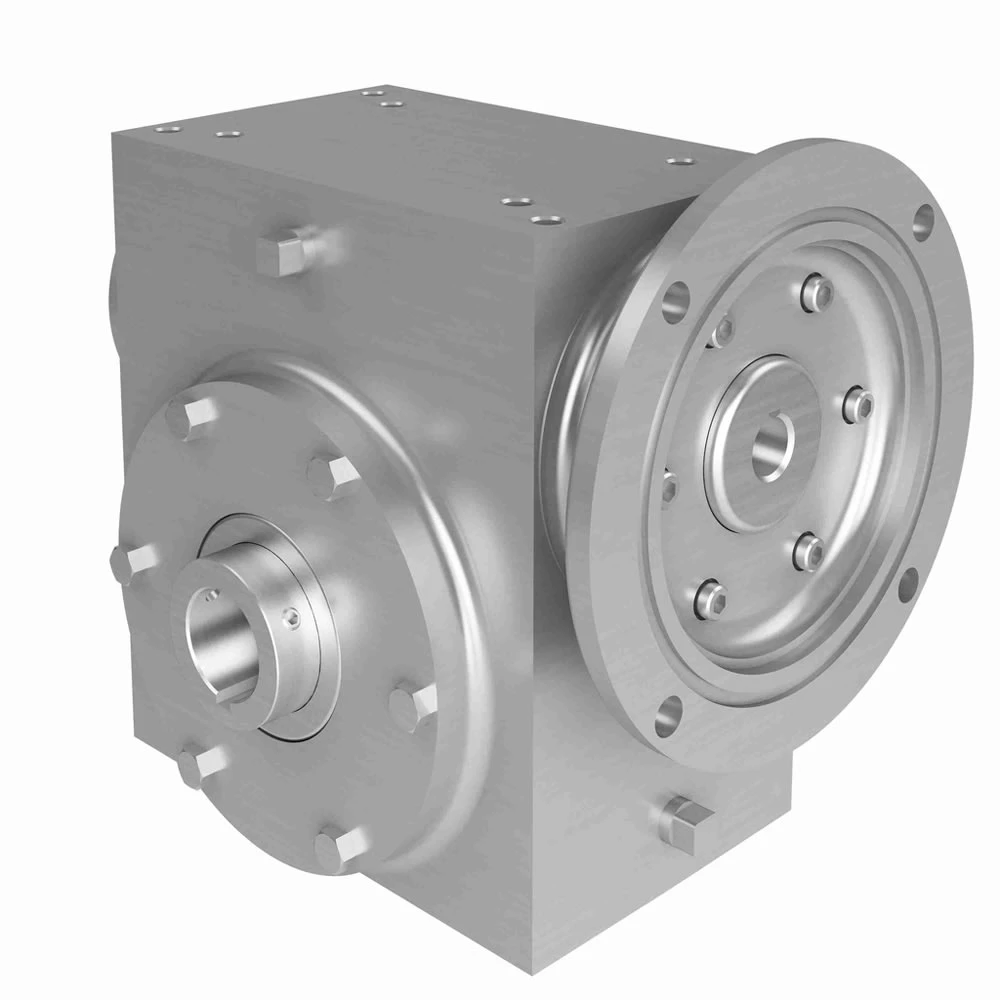

HUB CITY 0270-06756 Worm Reducer, 0.386 Hp, 0.625 Inch I.D, 1.250 Inch O.D, Stainless Steel
Get it by Tuesday, Dec 23
€3,546.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.63" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 0 hp to 1/2 hp, 1/3 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 0.386 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Rpm | 17.5 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 100:1 |
| Ratio Range | 100:1 to 250:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 851 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 30.48 |
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Type | Housing Material | Price | |
|---|---|---|---|---|---|---|---|
 |
0270-06763 | 2.145 hp | 56C | Worm Right Angle | Stainless Steel | €3,070.12 | |
 |
0270-06752 | 1.695 hp | 56C | Worm Right Angle | Stainless Steel | €3,546.01 | |
 |
0270-06760 | 3.614 hp | 56C | Worm Right Angle | Stainless Steel | €3,546.01 | |
 |
0270-06761 | 2.965 hp | 56C | Worm Right Angle | Stainless Steel | €3,546.01 | |
 |
0270-06753 | 1 21/50 hp | 56C | Worm Right Angle | Stainless Steel | €3,070.12 | |
 |
0270-06751 | 2.145 hp | 56C | Worm Right Angle | Stainless Steel | €3,070.12 | |
 |
0270-06714 | 2.487 hp | 56C | Worm Right Angle | Stainless Steel | €3,546.01 |
