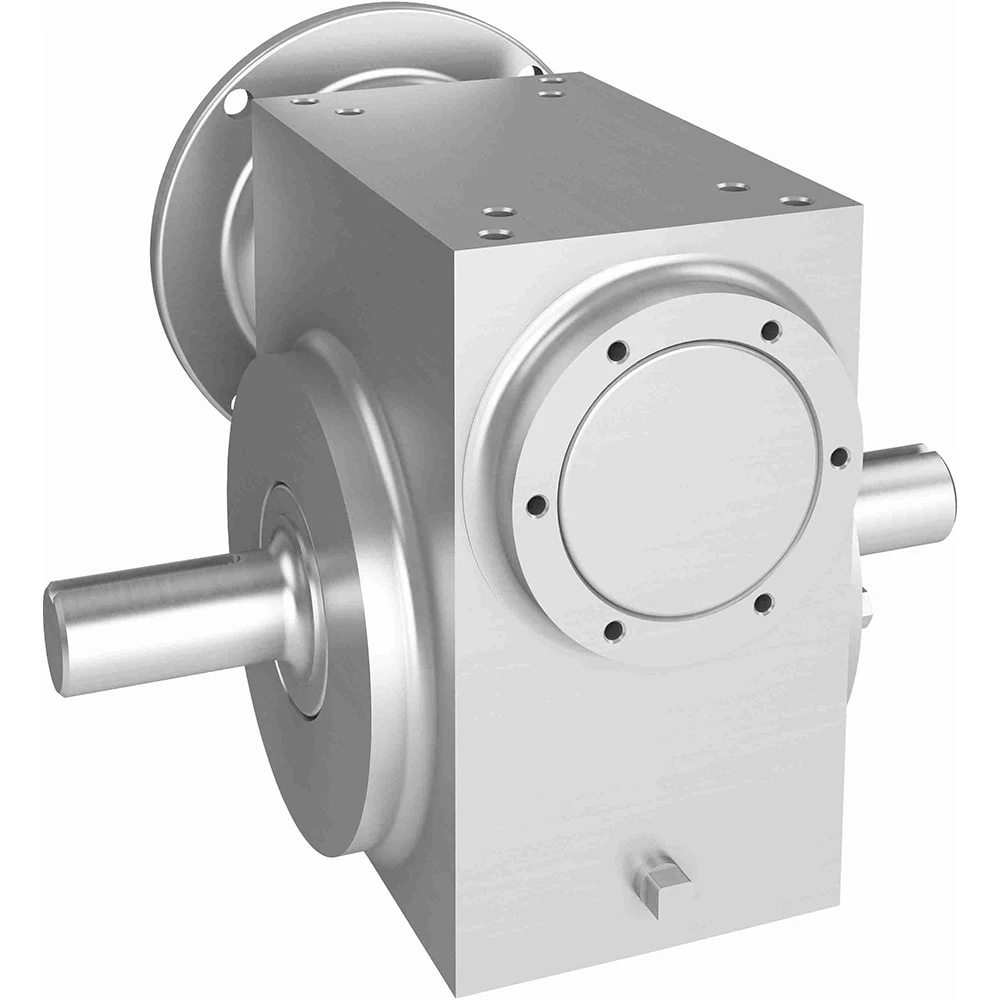

HUB CITY 0270-06601 Worm Reducer, 6.693 Hp, 0.625 Inch I.D, 1.250 Inch O.D, Stainless Steel
Get it by Tuesday, Sep 1
€2,616.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.63" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp | 5 hp to 7 1/2 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 6.693 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Speed | 350 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Overhung Load | 1150 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 5:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 1130 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 30.48 |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Speed | Output Torque | Max. Input Hp | Input Style | Style | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-06613 | 1 1/4" | 5/8" | 350 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 6.693 hp | C Face Quill | B | 5:1 | €2,616.88 | |
 |
0270-06619 | 1 1/4" | 5/8" | 58.3 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 2.145 hp | C Face Quill | B | 30:1 | €2,616.88 | |
 |
0270-06620 | 1 1/4" | 5/8" | 43.75 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 1.695 hp | C Face Quill | B | 40:1 | €2,616.88 | |
 |
0270-06621 | 1 1/4" | 5/8" | 35 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 1 21/50 hp | C Face Quill | B | 50:1 | €2,616.88 | |
 |
0270-06622 | 1 1/4" | 5/8" | 29.2 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 1.216 hp | C Face Quill | B | 60:1 | €2,616.88 | |
 |
0270-06817 | 1 1/4" | 7/8" | 350 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 6.693 hp | C Face Quill | A | 5:1 | €3,546.01 | |
 |
0270-06629 | 1 1/4" | 5/8" | 87.5 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 2.965 hp | C Face Quill | C | 20:1 | - | RFQ
|
