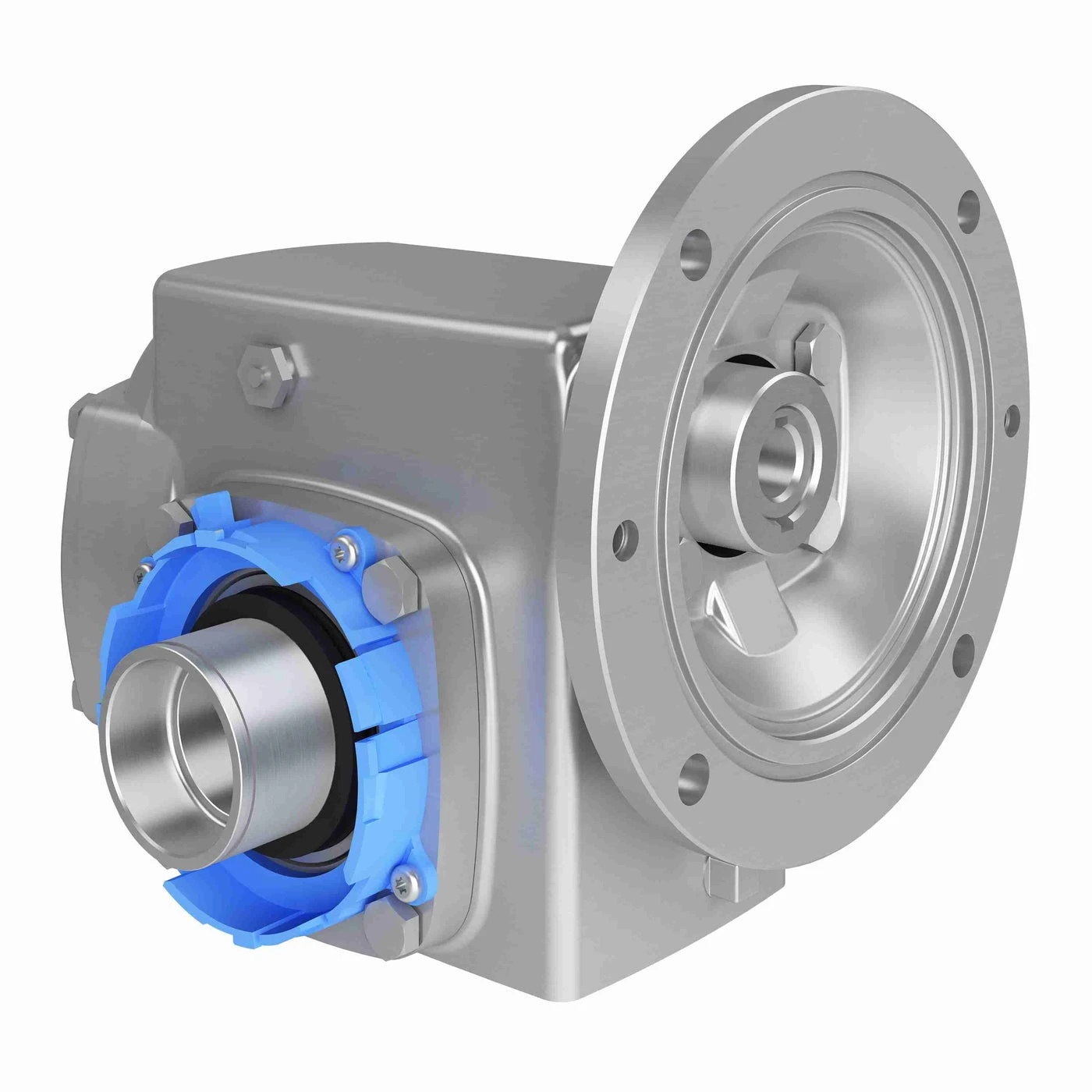

HUB CITY 0250-61172 Helical Hypoid Reducer, 4.11 HP, 0.876 Inch I.D, EK Mounting Type, Stainless Steel
Get it by Tuesday, Sep 1
€4,028.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3.263" |
| Frame Size | 140TC |
| Gear Drive Size | SSHERA45 |
| Housing Height | 7.14" |
| Housing Length | 8.02" |
| Housing Material | Stainless Steel |
| Housing Width | 6 3/4" |
| Hp | 3 hp to 5 hp |
| Input Dia. | 0.876" |
| Input Hp | 4 11/100 hp |
| Input Hp @ 1750 Rpm | 4.11 hp |
| Input Style | C Face Quill |
| Length Through Bore | 6 3/4" |
| Max. Input Hp | 4.11 hp |
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 20:1 |
| Output Shaft | Hollow Bore |
| Output Speed | 89.7 RPM |
| Output Torque | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Datasheet | hub-city-0250-61114.pdf |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 19.5:1 |
| Service Factor | 1 |
| Style | Ek |
| Torque | 2600 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Documentation:
Product Variants
| Product | Model | Input Dia. | Output Torque | Max. Input Hp | Output Speed | Input Hp @ 1750 Rpm | Nominal Ratio | Frame Size | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0250-61163 | 0.626" | 2500 lbs.-in. to 5000 lbs.-in. | 5 7/50 hp | 112.2 RPM | 5 7/50 hp | 15:1 | 56C | 2600 lbs.-in. | €4,028.36 | |
 |
0250-61104 | 0.626" | 1000 lbs.-in. to 2500 lbs.-in. | 1 7/10 hp | 87.8 RPM | 1 7/10 hp | 20:1 | 56C | 1100 lbs.-in. | €3,016.42 | |
 |
0250-61105 | 0.626" | 1000 lbs.-in. to 2500 lbs.-in. | 1.17 hp | 60.1 RPM | 1.17 hp | 30:1 | 56C | 1100 lbs.-in. | €3,556.93 | |
 |
0250-61107 | 0.626" | 1000 lbs.-in. to 2500 lbs.-in. | 13/20 hp | 33.3 RPM | 13/20 hp | 50:1 | 56C | 1100 lbs.-in. | €2,739.80 | |
 |
0250-61167 | 0.626" | 2500 lbs.-in. to 5000 lbs.-in. | 1.53 hp | 33.3 RPM | 1.53 hp | 50:1 | 56C | 2600 lbs.-in. | €3,658.92 | |
 |
0250-61114 | 0.876" | 1000 lbs.-in. to 2500 lbs.-in. | 39/50 hp | 40.2 RPM | 39/50 hp | 40:1 | 140TC | 1100 lbs.-in. | €3,016.42 | |
 |
0250-61115 | 0.876" | 1000 lbs.-in. to 2500 lbs.-in. | 13/20 hp | 33.3 RPM | 13/20 hp | 50:1 | 140TC | 1100 lbs.-in. | €3,016.42 |
