HUB CITY 0250-54571 Helical Hypoid Reducer, 2.62 HP, 0.626 Inch I.D, 1.938 Inch O.D, Cast Iron
Get it by Tuesday, Apr 14
€3,061.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3.675" |
| Frame Size | 56C |
| Gear Drive Size | HERA55 |
| Housing Height | 9 3/8" |
| Housing Length | 10 13/25" |
| Housing Material | Cast Iron |
| Housing Width | 7 1/2" |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 0.626" |
| Input Hp | 2 31/50 hp |
| Input Hp @ 1750 Rpm | 2 31/50 hp |
| Input Style | C Face Quill |
| Length Through Bore | 7 1/2" |
| Max. Input Hp | 2 31/50 hp |
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 50:1 |
| Output Dia. | 1.938" |
| Output Rpm | 33 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 53.03:1 |
| Service Factor | 1 |
| Style | ES |
| Torque Rating | 4500 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 36.9 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | max. input hp | frame size | ratio | output rpm | center distance | housing material | no. of gear reductions | service factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0250-54658 | 3 4/25 hp | 140TC | 43.97:1 | 39.8 RPM | 3.675" | Cast Iron | 2 | 1 | €2,781.10 | |
 |

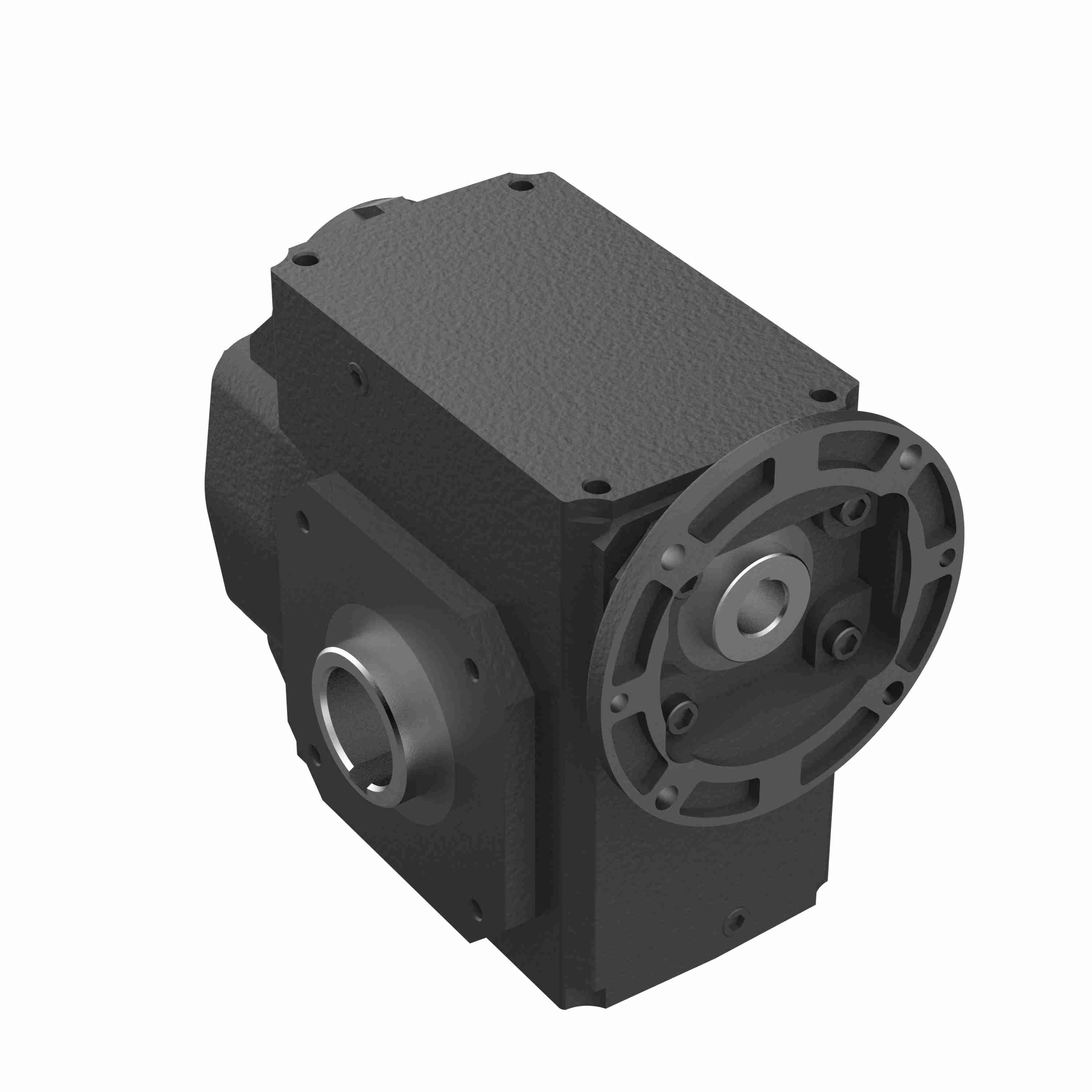

0250-54660 | 2 9/25 hp | 140TC | 58.92:1 | 29.7 RPM | 3.675" | Cast Iron | 2 | 1 | €2,781.10 | |
 |
0250-54789 | 13 hp | 210TC | 7.94:1 | 220.4 RPM | 3.675" | Cast Iron | 2 | 1 | €2,059.49 | |
 |

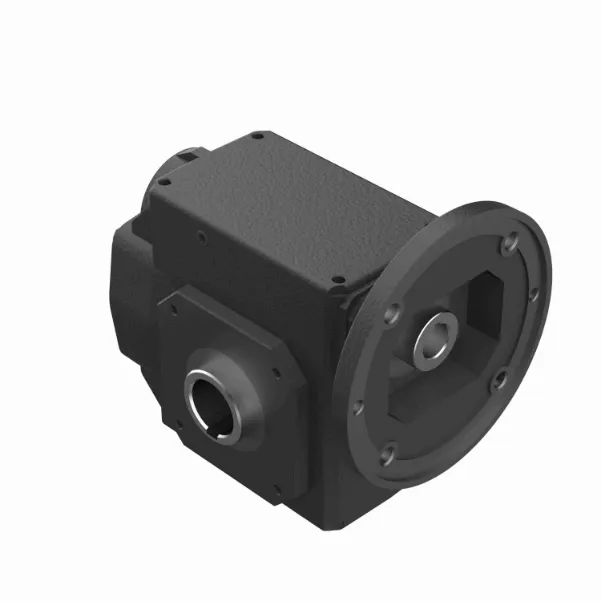

0250-54745 | 4.61 hp | 180TC | 30.14:1 | 58.1 RPM | 3.675" | Cast Iron | 2 | 1 | €2,781.10 | |
 |
0250-54619 | 2 31/50 hp | 140TC | 53.03:1 | 33 RPM | 3.675" | Cast Iron | 2 | 1 | €3,061.88 | |
 |
0250-54572 | 2 9/25 hp | 56C | 58.92:1 | 29.7 RPM | 3.675" | Cast Iron | 2 | 1 | €3,061.88 | |
 |
0250-54705 | 4.61 hp | 180TC | 30.14:1 | 58.1 RPM | 3.675" | Cast Iron | 2 | 1 | €3,061.88 |
