HUB CITY HERA55 Series Helical Hypoid Reducers, ES Type, Cast Iron
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2
G2
H2
I2| Style | Model | Output Dia. | Input Dia. | Output Speed | Max. Input Hp | Nominal Ratio | Frame Size | Torque | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-54615 | 1 1/2" | 0.876" | 116.3 RPM | 9 11/50 hp | 15:1 | 140TC | 4500 lbs.-in. | 7 1/2 hp to 10 hp | €3,061.88 | |
| B | 0250-54705 | 1 1/2" | 1.126" | 58.1 RPM | 4.61 hp | 30:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| C | 0250-54619 | 1 1/2" | 0.876" | 33 RPM | 2 31/50 hp | 50:1 | 140TC | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| D | 0250-54532 | 1 1/2" | 0.626" | 29.7 RPM | 2 9/25 hp | 60:1 | 56C | 4500 lbs.-in. | 2 hp to 3 hp | €2,781.10 | |
| E | 0250-54620 | 1 1/2" | 0.876" | 29.7 RPM | 2 9/25 hp | 60:1 | 140TC | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| F | 0250-54789 | 1 1/2" | 1.376" | 220.4 RPM | 13 hp | 7.5:1 | 210TC | 3346 lbs.-in. | 10 hp to 15 hp | €2,059.49 | |
| G | 0250-54706 | 1 1/2" | 1.126" | 39.8 RPM | 3 4/25 hp | 40:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| H | 0250-54527 | 1 1/2" | 0.626" | 116.3 RPM | 9 11/50 hp | 15:1 | 56C | 4500 lbs.-in. | 7 1/2 hp to 10 hp | €2,059.49 | |
| I | 0250-54704 | 1 1/2" | 1.126" | 82.7 RPM | 6 14/25 hp | 20:1 | 180TC | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €3,061.88 | |
| J | 0250-54531 | 1 1/2" | 0.626" | 33 RPM | 2 31/50 hp | 50:1 | 56C | 4500 lbs.-in. | 2 hp to 3 hp | €2,059.49 | |
| K | 0250-54790 | 1 1/2" | 1.376" | 162.5 RPM | 12.89 hp | 10:1 | 210TC | 4500 lbs.-in. | 10 hp to 15 hp | €2,059.49 | |
| L | 0250-54689 | 1 1/4" | 1.126" | 58.1 RPM | - | 30:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| M | 0250-54816 | 1 3/4" | 1.376" | 82.7 RPM | 6 14/25 hp | 20:1 | 210TC | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €3,061.88 | |
| N | 0250-54625 | 1 5/8" | 0.876" | 58.1 RPM | 4.61 hp | 30:1 | 140TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| O | 0250-54626 | 1 5/8" | 0.876" | 39.8 RPM | 3 4/25 hp | 40:1 | 140TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| P | 0250-54533 | 1 5/8" | - | 220.4 RPM | 13 hp | 7.5:1 | 56C | 3346 lbs.-in. | 10 hp to 15 hp | €3,061.88 | |
| Q | 0250-54713 | 1 5/8" | 1.126" | 58.1 RPM | 4.61 hp | 30:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| R | 0250-54628 | 1 5/8" | 0.876" | 29.7 RPM | 2 9/25 hp | 60:1 | 140TC | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| S | 0250-54716 | 1 5/8" | 1.126" | 29.7 RPM | 2 9/25 hp | 60:1 | 180TC | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| T | 0250-54714 | 1 5/8" | 1.126" | 39.8 RPM | 3 4/25 hp | 40:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| U | 0250-54736 | 1 7/8" | 1.126" | - | 6 14/25 hp | 20:1 | 180TC | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €2,292.28 | |
| V | 0250-54564 | 1 7/8" | 0.626" | 29.7 RPM | 2 9/25 hp | 60:1 | 56C | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| W | 0250-54697 | 1.438" | 1.126" | 58.1 RPM | 4.61 hp | 30:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €2,059.49 | |
| X | 0250-54782 | 1.438" | 1.376" | 162.5 RPM | 12.89 hp | 10:1 | 210TC | 4500 lbs.-in. | 10 hp to 15 hp | €3,061.88 | |
| Y | 0250-54612 | 1.438" | 0.876" | 29.7 RPM | 2 9/25 hp | 60:1 | 140TC | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| Z | 0250-54696 | 1.438" | 1.126" | 82.7 RPM | 6 14/25 hp | 20:1 | 180TC | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €3,061.88 | |
| A1 | 0250-54609 | 1.438" | 0.876" | 58.1 RPM | 4.61 hp | 30:1 | 140TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| B1 | 0250-54632 | 1.688" | 0.876" | 82.7 RPM | 6 14/25 hp | 20:1 | 140TC | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €3,061.88 | |
| C1 | 0250-54631 | 1.688" | 0.876" | 116.3 RPM | 9 11/50 hp | 15:1 | 140TC | 4500 lbs.-in. | 7 1/2 hp to 10 hp | €3,061.88 | |
| D1 | 0250-54660 | 1.938" | 0.876" | 29.7 RPM | 2 9/25 hp | 60:1 | 140TC | 4500 lbs.-in. | 2 hp to 3 hp | €2,781.10 | |
| E1 | 0250-54742 | 1.938" | 1.126" | 162.5 RPM | 12.89 hp | 10:1 | 180TC | 4500 lbs.-in. | 10 hp to 15 hp | €3,061.88 | |
| F1 | 0250-54658 | 1.938" | 0.876" | 39.8 RPM | 3 4/25 hp | 40:1 | 140TC | 4500 lbs.-in. | 3 hp to 5 hp | €2,781.10 | |
| G1 | 0250-54830 | 1.938" | 1.376" | 162.5 RPM | 12.89 hp | 10:1 | 210TC | 4500 lbs.-in. | 10 hp to 15 hp | €2,781.10 | |
| H1 | 0250-54744 | 1.938" | 1.126" | 82.7 RPM | 6 14/25 hp | 20:1 | 180TC | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €3,398.18 | |
| I1 | 0250-54745 | 1.938" | 1.126" | 58.1 RPM | 4.61 hp | 30:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €2,781.10 | |
| J1 | 0250-54569 | 1.938" | 0.626" | 58.1 RPM | 4.61 hp | 30:1 | 56C | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| K1 | 0250-54743 | 1.938" | 1.126" | 116.3 RPM | 9 11/50 hp | 15:1 | 180TC | 4500 lbs.-in. | 7 1/2 hp to 10 hp | €3,061.88 | |
| L1 | 0250-54746 | 1.938" | 1.126" | 39.8 RPM | 3 4/25 hp | 40:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €2,781.10 | |
| M1 | 0250-54659 | 1.938" | 0.876" | 33 RPM | 2 31/50 hp | 50:1 | 140TC | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| N1 | 0250-54571 | 1.938" | 0.626" | 33 RPM | 2 31/50 hp | 50:1 | 56C | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| O1 | 0250-54568 | 1.938" | 0.626" | 82.7 RPM | 6 14/25 hp | 20:1 | 56C | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €2,059.49 | |

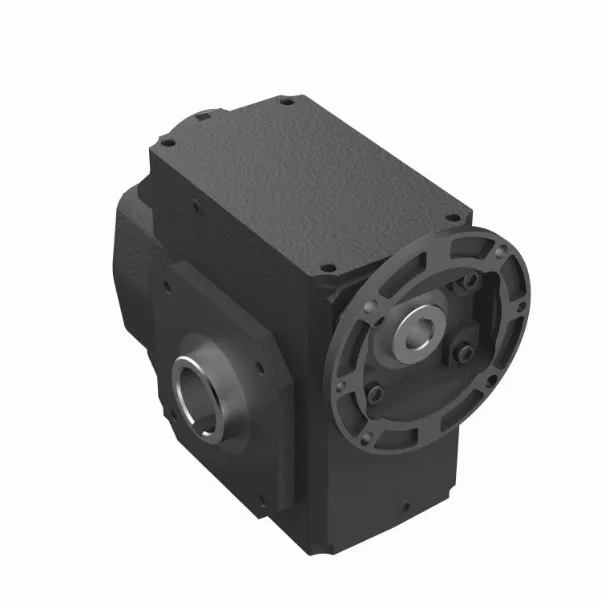

| P1 | 0250-54657 | 1.938" | 0.876" | 58.1 RPM | 4.61 hp | 30:1 | 140TC | 4500 lbs.-in. | 3 hp to 5 hp | €2,790.36 | |
| Q1 | 0250-54747 | 1.938" | 1.126" | 33 RPM | 2 31/50 hp | 50:1 | 180TC | 4500 lbs.-in. | 2 hp to 3 hp | €2,059.49 | |
| R1 | 0250-54836 | 1.938" | 1.376" | 29.7 RPM | 2 9/25 hp | 60:1 | 210TC | 4500 lbs.-in. | 2 hp to 3 hp | €2,169.48 | |
| S1 | 0250-54833 | 1.938" | 1.376" | 58.1 RPM | 4.61 hp | 30:1 | 210TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| T1 | 0250-54748 | 1.938" | 1.126" | 29.7 RPM | 2 9/25 hp | 60:1 | 180TC | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| U1 | 0250-54834 | 1.938" | 1.376" | 39.8 RPM | 3 4/25 hp | 40:1 | 210TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| V1 | 0250-54572 | 1.938" | 0.626" | 29.7 RPM | 2 9/25 hp | 60:1 | 56C | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| W1 | 0250-54741 | 1.938" | 1.126" | 220.4 RPM | 13 hp | 7.5:1 | 180TC | 3346 lbs.-in. | 10 hp to 15 hp | €3,061.88 | |
| X1 | 0250-54831 | 1.938" | 1.376" | 116.3 RPM | 9 11/50 hp | 15:1 | 210TC | 4500 lbs.-in. | 7 1/2 hp to 10 hp | €3,061.88 | |
| Y1 | 0250-54752 | 2" | 1.126" | 82.7 RPM | 6 14/25 hp | 20:1 | 180TC | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €2,059.49 | |
| Z1 | 0250-54580 | 2" | 0.626" | 29.7 RPM | 2 9/25 hp | 60:1 | 56C | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| A2 | 0250-54666 | 2" | 0.876" | 39.8 RPM | 3 4/25 hp | 40:1 | 140TC | 4500 lbs.-in. | 3 hp to 5 hp | €2,059.49 | |

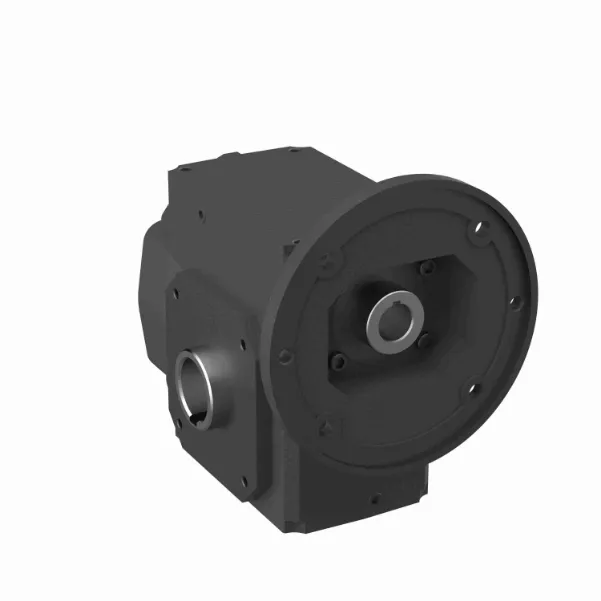

| B2 | 0250-54751 | 2" | 1.126" | 116.3 RPM | 9 11/50 hp | 15:1 | 180TC | 4500 lbs.-in. | 7 1/2 hp to 10 hp | €2,781.10 | |
| C2 | 0250-54753 | 2" | 1.126" | 58.1 RPM | 4.61 hp | 30:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| D2 | 0250-54754 | 2" | 1.126" | 39.8 RPM | 3 4/25 hp | 40:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| E2 | 0250-54665 | 2" | 0.876" | 58.1 RPM | 4.61 hp | 30:1 | 140TC | 4500 lbs.-in. | 3 hp to 5 hp | €3,061.88 | |
| F2 | 0250-54838 | 2" | 1.376" | 162.5 RPM | 12.89 hp | 10:1 | 210TC | 4500 lbs.-in. | 10 hp to 15 hp | €3,061.88 | |
| G2 | 0250-54760 | 2.188" | 1.126" | 82.7 RPM | 6 14/25 hp | 20:1 | 180TC | 4500 lbs.-in. | 5 hp to 7 1/2 hp | €2,059.49 | |
| H2 | 0250-54676 | 2.188" | 0.876" | 29.7 RPM | 2 9/25 hp | 60:1 | 140TC | 4500 lbs.-in. | 2 hp to 3 hp | €3,061.88 | |
| I2 | 0250-54762 | 2.188" | 1.126" | 39.8 RPM | 3 4/25 hp | 40:1 | 180TC | 4500 lbs.-in. | 3 hp to 5 hp | €2,059.49 |
