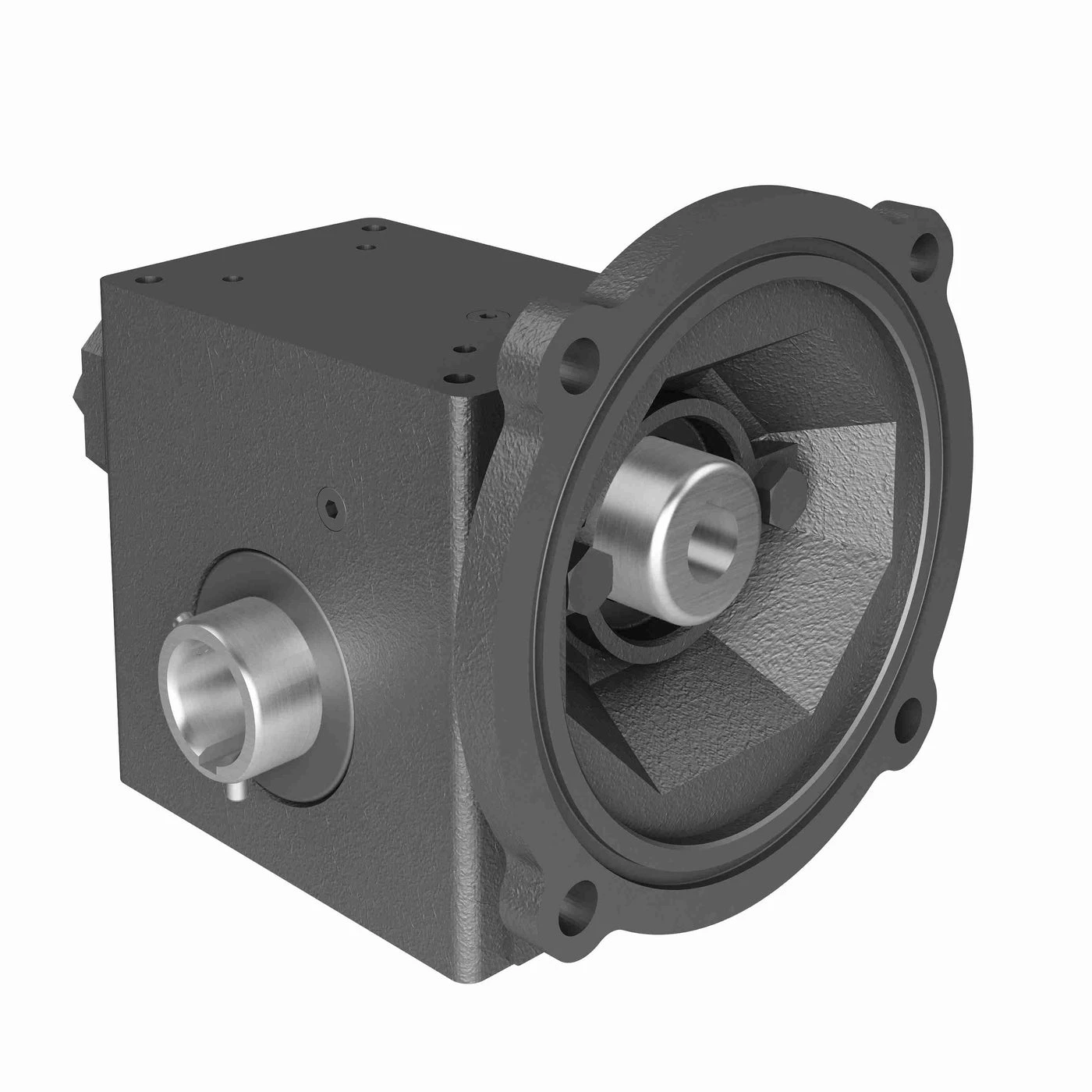

HUB CITY 0230-46282 Worm Reducer, 2.05 Hp, 1.000 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Wednesday, Aug 26
€1,202.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" , 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 2 hp to 3 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 2 1/20 hp |
| Output Dia. | 1" |
| Output Shaft | Hollow Bore |
| Output Speed | 233 RPM |
| Output Torque | 250 lbs.-in. to 500 lbs.-in. |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 7.5:1 |
| Service Factor | 1 |
| Style | B |
| Torque | 468 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 24.13 |
Product Variants
| Product | Model | Output Dia. | Output Torque | Max. Input Hp | Output Speed | Torque | Hp | Input Style | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-01610 | 1" | 500 lbs.-in. to 1000 lbs.-in. | 11/20 hp | 43.8 RPM | 540 lbs.-in. | 1/2 hp to 1 hp | C Face Quill | A | €1,145.28 | |
 |
0230-01612 | 1" | 250 lbs.-in. to 500 lbs.-in. | 0.37 hp | 29.2 RPM | 490 lbs.-in. | 0 hp to 1/2 hp, 1/3 hp | C Face Quill | A | €1,271.16 | |
 |
0230-01607 | 1" | 500 lbs.-in. to 1000 lbs.-in. | 1 hp | 87.5 RPM | 541 lbs.-in. | 1 hp to 2 hp | C Face Quill | A | €1,041.15 | |
 |
0230-01756 | 1" | 250 lbs.-in. to 500 lbs.-in. | 0.37 hp | - | 490 lbs.-in. | 0 hp to 1/2 hp, 1/3 hp | C Face Quill | R | €1,275.63 | |
 |
0230-01611 | 1" | 500 lbs.-in. to 1000 lbs.-in. | 11/25 hp | 35 RPM | 516 lbs.-in. | 0 hp to 1/2 hp, 1/3 hp | C Face Quill | A | €1,202.53 | |
 |
0230-01752 | 1" | 500 lbs.-in. to 1000 lbs.-in. | 39/50 hp | 70 RPM | 536 lbs.-in. | 1/2 hp to 1 hp | C Face Quill | R | €1,159.65 | |
 |
0230-01677 | 1" | 250 lbs.-in. to 500 lbs.-in. | 1.63 hp | 175 RPM | 491 lbs.-in. | 1 hp to 2 hp | C Face Quill | L | €1,339.40 |
