HUB CITY 0230-18511 Worm Reducer, 0.078 Hp, 1.000 Inch I.D, 0.5 Inch O.D, Cast Iron
Get it by Tuesday, Jul 14
€1,877.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" , 1" to 3 1/4" |
| Gear Type | Double Worm |
| Housing Material | Cast Iron |
| Input Dia. | 1/2" |
| Input Style | Shaft |
| Max. Input Hp | 0.078 hp |
| Output Dia. | 1" |
| Output Shaft | Hollow Bore |
| Output Speed | 2.33 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 750:1 , 750:1 to 1000:1 |
| Service Factor | 1 |
| Torque | 806 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
Product Variants
| Product | Model | max. input hp | center distance | ratio | gear type | output torque | input style | housing material | service factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-18504 | - | 1 3/4" | 150:1 | Double Worm | - | Shaft | Cast Iron | 1 | - | RFQ
|
 |

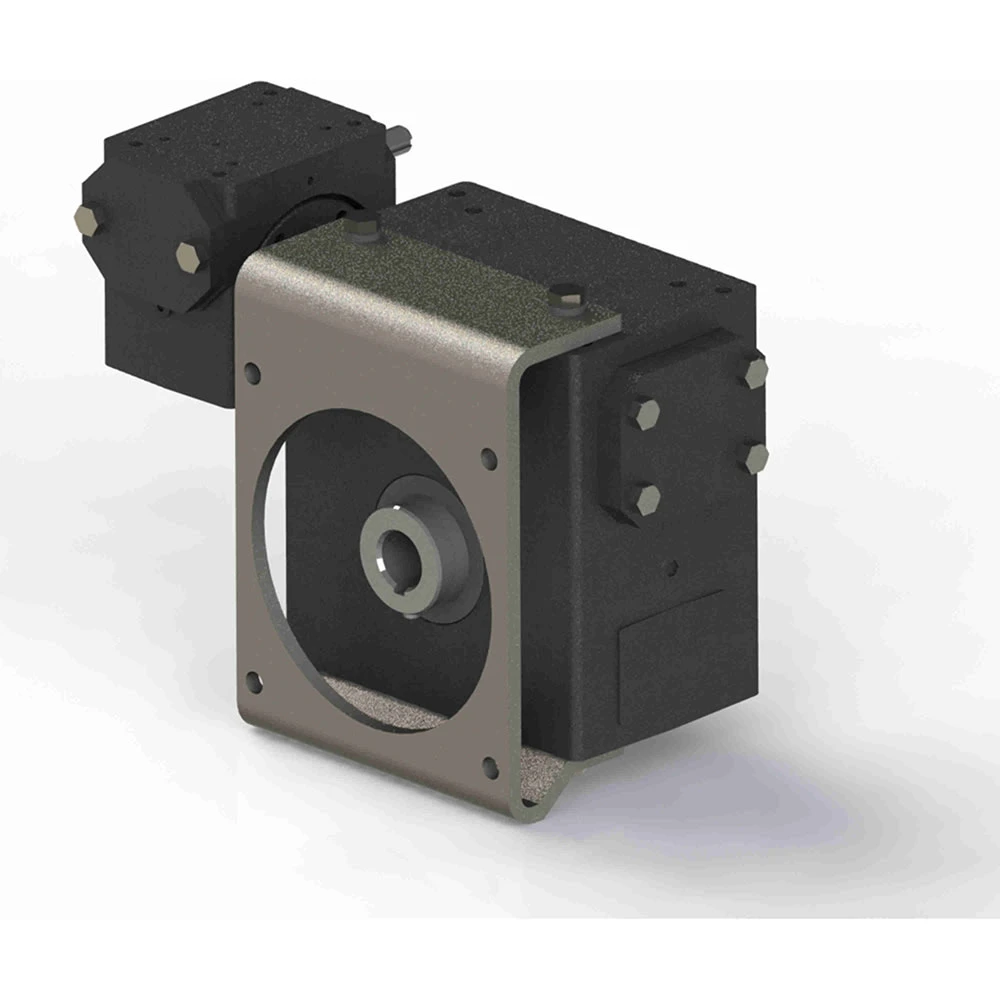

0230-18506 | 0.152 hp | 1 3/4" | 250:1 | Double Worm | 500 lbs.-in. to 1000 lbs.-in. | Shaft | Cast Iron | 1 | €1,877.66 |
