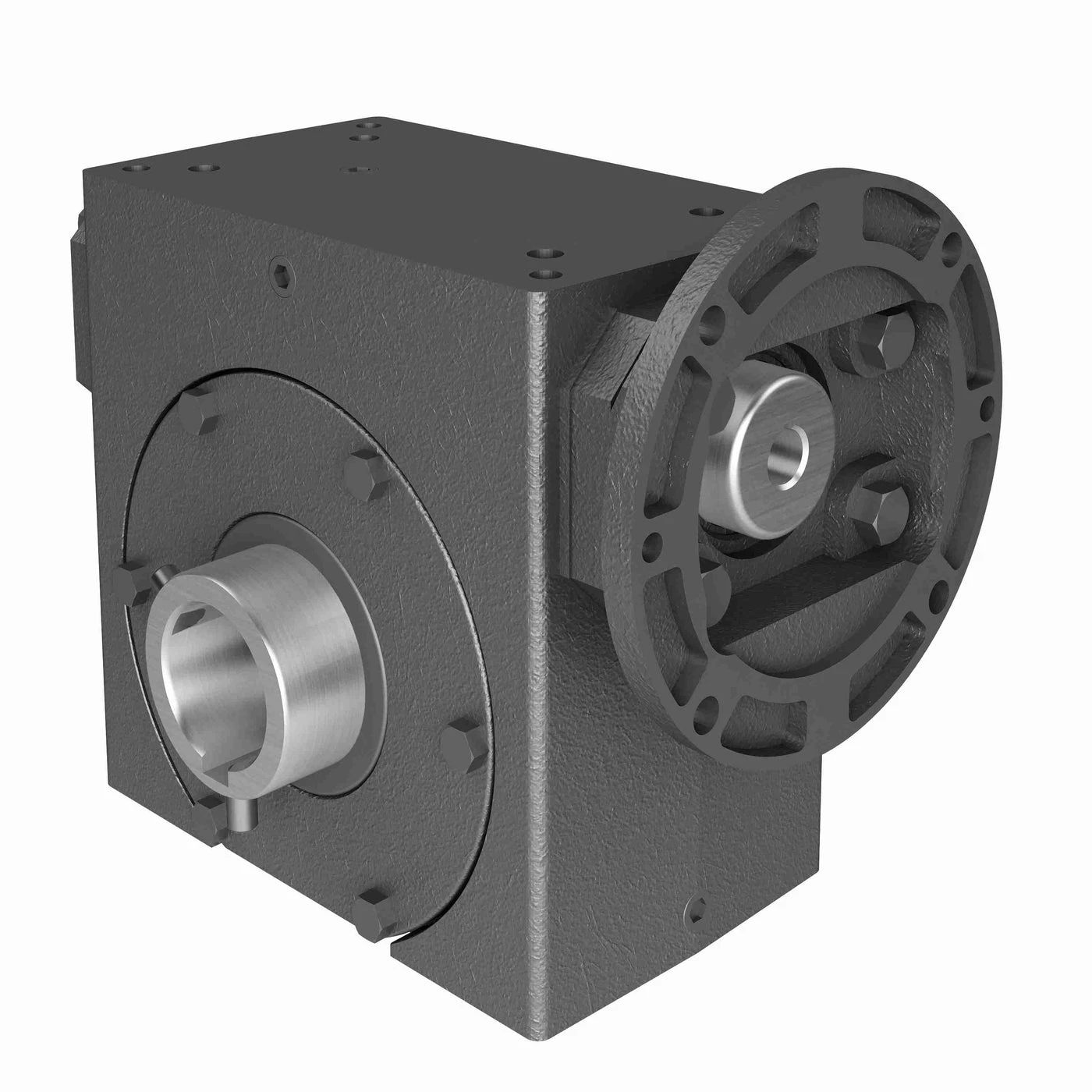

HUB CITY 0230-14946 Worm Reducer, 1.85 Hp, 1.938 Inch I.D, 0.625 Inch O.D, Cast Iron
€2,457.02 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" , Above 3.25" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 5/8" |
| Input Hp | 1 17/20 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 56C |
| Mounting Style | A |
| Output | 29.2 RPM |
| Output Dia. | 1.938" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque | 2500 lbs.-in. to 5000 lbs.-in. |
| Output Torque Rating | 2706 lbs.-in. |
| Product Datasheet | hub-city-0230-09537.pdf |
| Ratio | 60:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
Documentation:
Product Variants
| Product | Model | output torque | max. input hp | center distance | input style | output shaft | ratio | frame size | motor frame size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-15015 | 2500 lbs.-in. to 5000 lbs.-in. | 3 14/25 hp | 3 1/4" | C Face Quill | Hollow Bore | 30:1 | 140TC | - | €2,457.02 | |
 |
0230-14850 | 2500 lbs.-in. to 5000 lbs.-in. | 1 17/20 hp | 3 1/4" | C Face Quill | Shaft | 60:1 | 140TC | - | €1,676.91 | |
 |
0230-14737 | 2500 lbs.-in. to 5000 lbs.-in. | 4.59 hp | 3 1/4" | Shaft | Hollow Bore | 20:1 | - | - | €2,185.89 | |
 |
0230-14901 | 1000 lbs.-in. to 2500 lbs.-in. | 10 hp | 3 1/4" | C Face Quill | Shaft | 5:1 | 180TC | - | €1,936.83 | |
 |
0230-14631 | 2500 lbs.-in. to 5000 lbs.-in. | 3 14/25 hp | 3 1/4" | Shaft | Shaft | 30:1 | - | - | €1,657.75 | |
 |
0230-15047 | 1000 lbs.-in. to 2500 lbs.-in. | 6 19/25 hp | 3 1/4" | C Face Quill | Hollow Bore | 10:1 | 180TC | - | €2,457.02 | |
 |
0230-14978 | 2500 lbs.-in. to 5000 lbs.-in. | 3 23/25 hp | 3 1/4" | C Face Quill | Hollow Bore | 25:1 | 140TC | - | €2,457.02 |
