HUB CITY 0230-08047 Worm Reducer, 2.83 Hp, 1.125 Inch I.D, 0.875 Inch O.D, Cast Iron
Get it by Monday, Aug 31
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.63" |
| Frame Size | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 2 hp to 3 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 2.83 hp |
| Output Dia. | 1 1/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Speed | 87.5 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Datasheet | hub-city-0230-07175.pdf |
| Product Line | Pag Lubed Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 1792 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Documentation:
Product Variants
| Product | Model | Input Dia. | Output Speed | Max. Input Hp | Torque | Hp | Input Style | Output Shaft Direction | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-08037 | 5/8" | 58.3 RPM | 2 hp | 1785 lbs.-in. | 2 hp to 3 hp | C Face Quill | Double | A | €1,455.50 | |
 |
0230-07829 | 3/4" | 175 RPM | 5 hp | 1623 lbs.-in. | 5 hp to 7 1/2 hp | Shaft | Left | B | €1,370.56 | |
 |

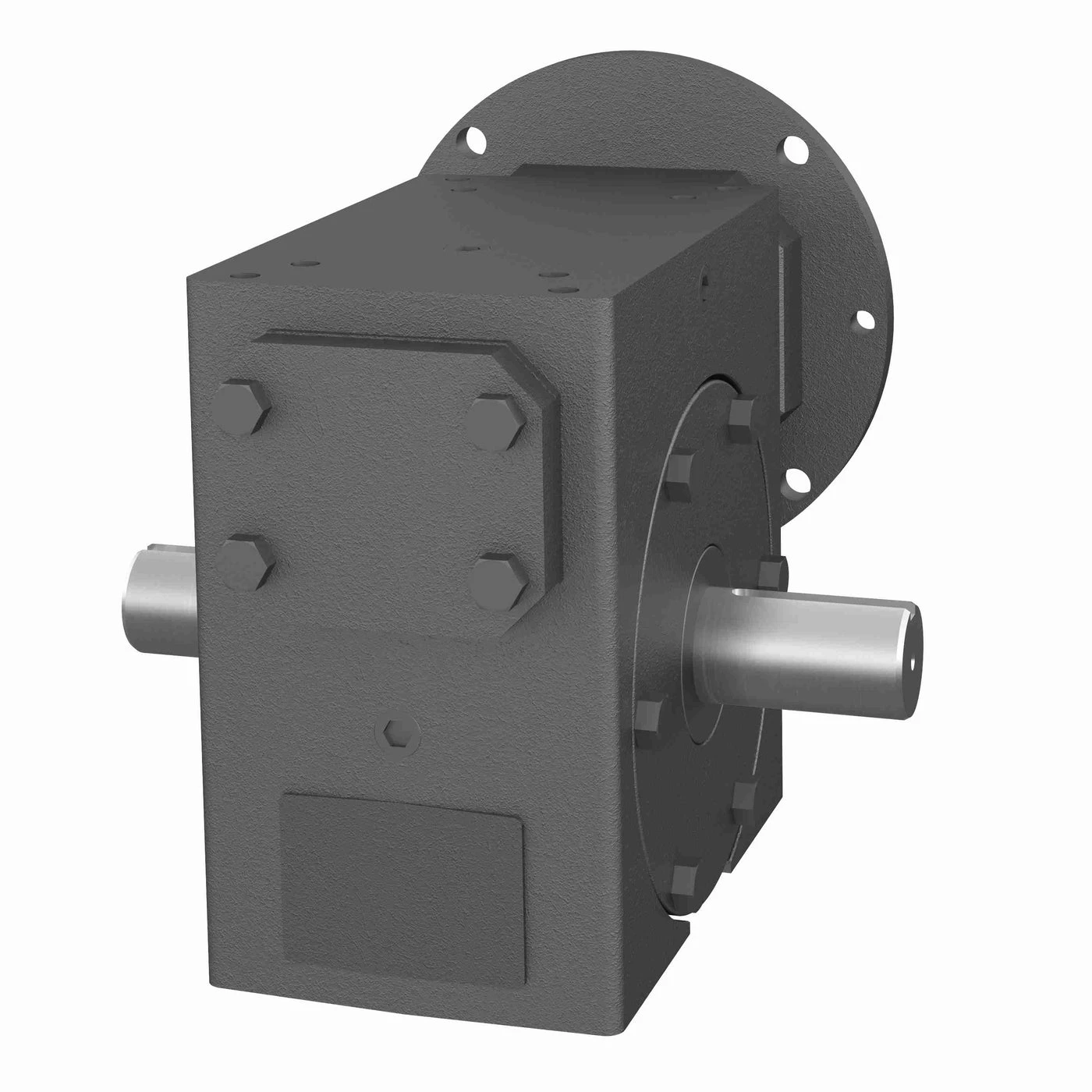

0230-08073 | 5/8" | 58.3 RPM | 2 hp | 1785 lbs.-in. | 2 hp to 3 hp | C Face Quill | Left | B | €1,455.50 | |
 |
0230-08048 | 7/8" | 70 RPM | 2.31 hp | 1793 lbs.-in. | 2 hp to 3 hp | C Face Quill | Double | A | €1,455.50 |
