HUB CITY 0230-07351 Worm Reducer, 2.83 Hp, 1.188 Inch I.D, 0.875 Inch O.D, Cast Iron
Get it by Tuesday, Sep 1
€1,847.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.63" |
| Frame Size | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 2 hp to 3 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 2.83 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1.188" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Speed | 87.5 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 1640 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | Output Dia. | Style | Ratio | Housing Material | Input Dia. | Output Speed | Output Torque | Max. Input Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

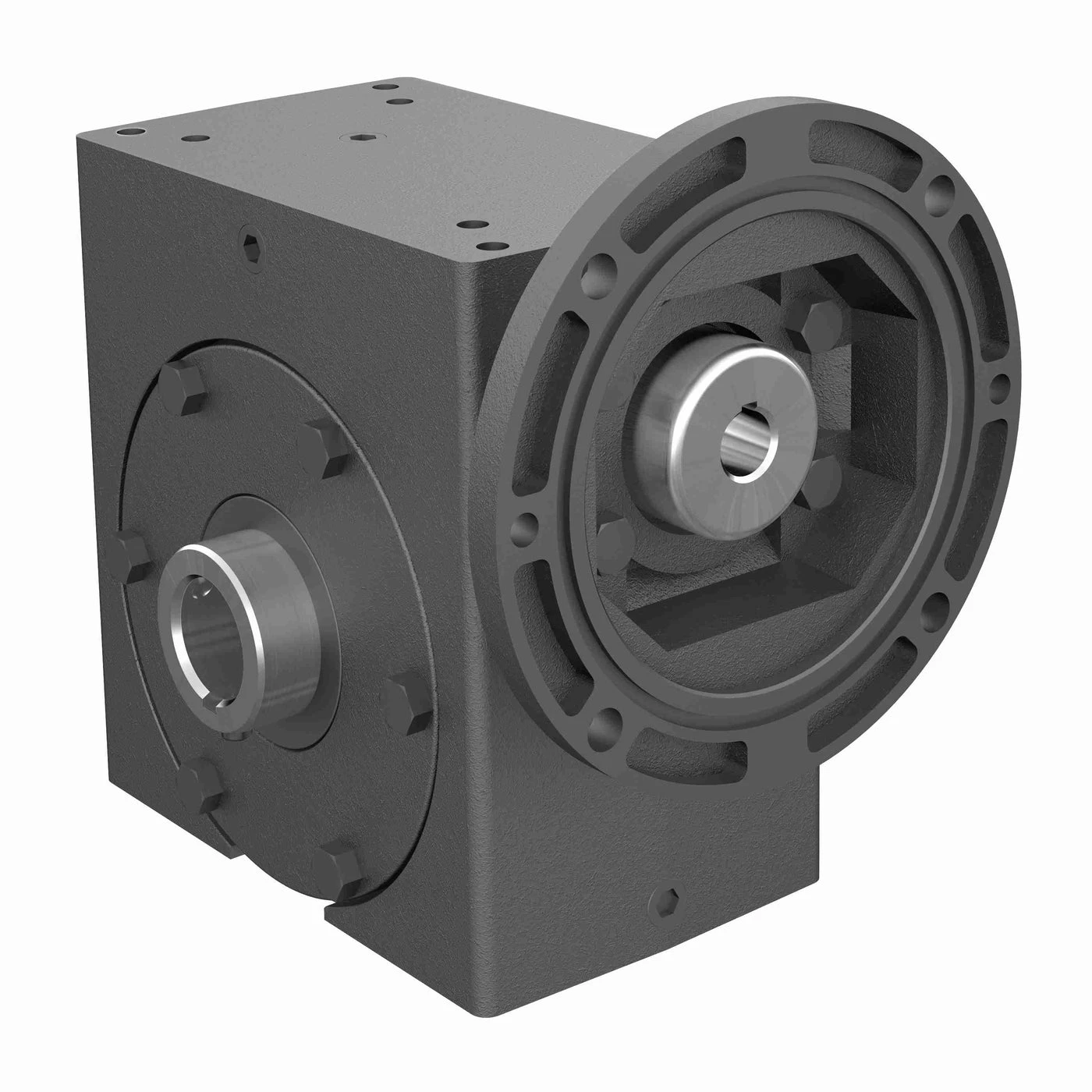

0230-07363 | 1 1/4" | A | 20:1 | Cast Iron | 7/8" | 87.5 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 2.83 hp | €1,847.63 | |
 |

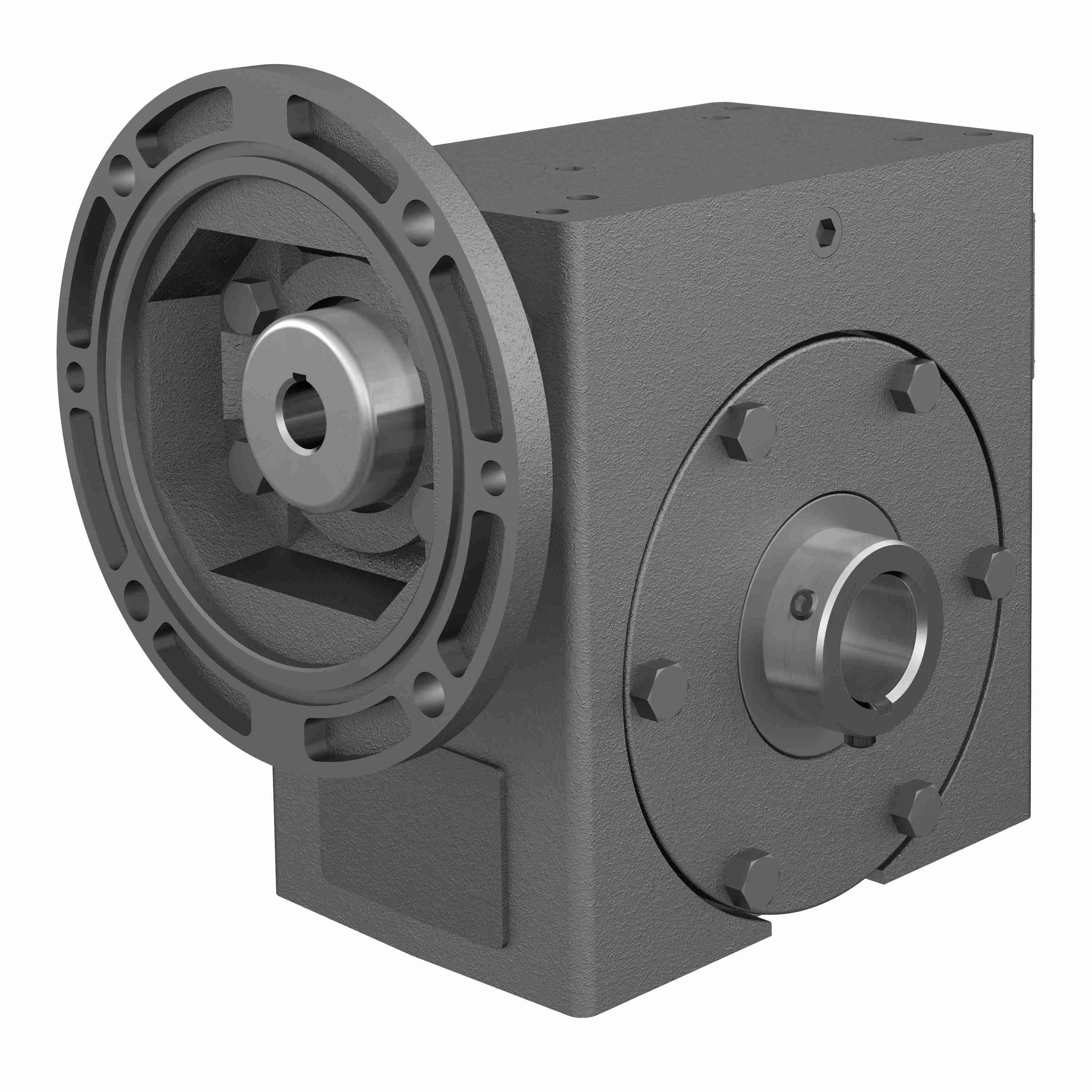

0230-47177 | 1 1/4" | B | 50:1 | Cast Iron | 7/8" | - | - | - | - | RFQ
|
