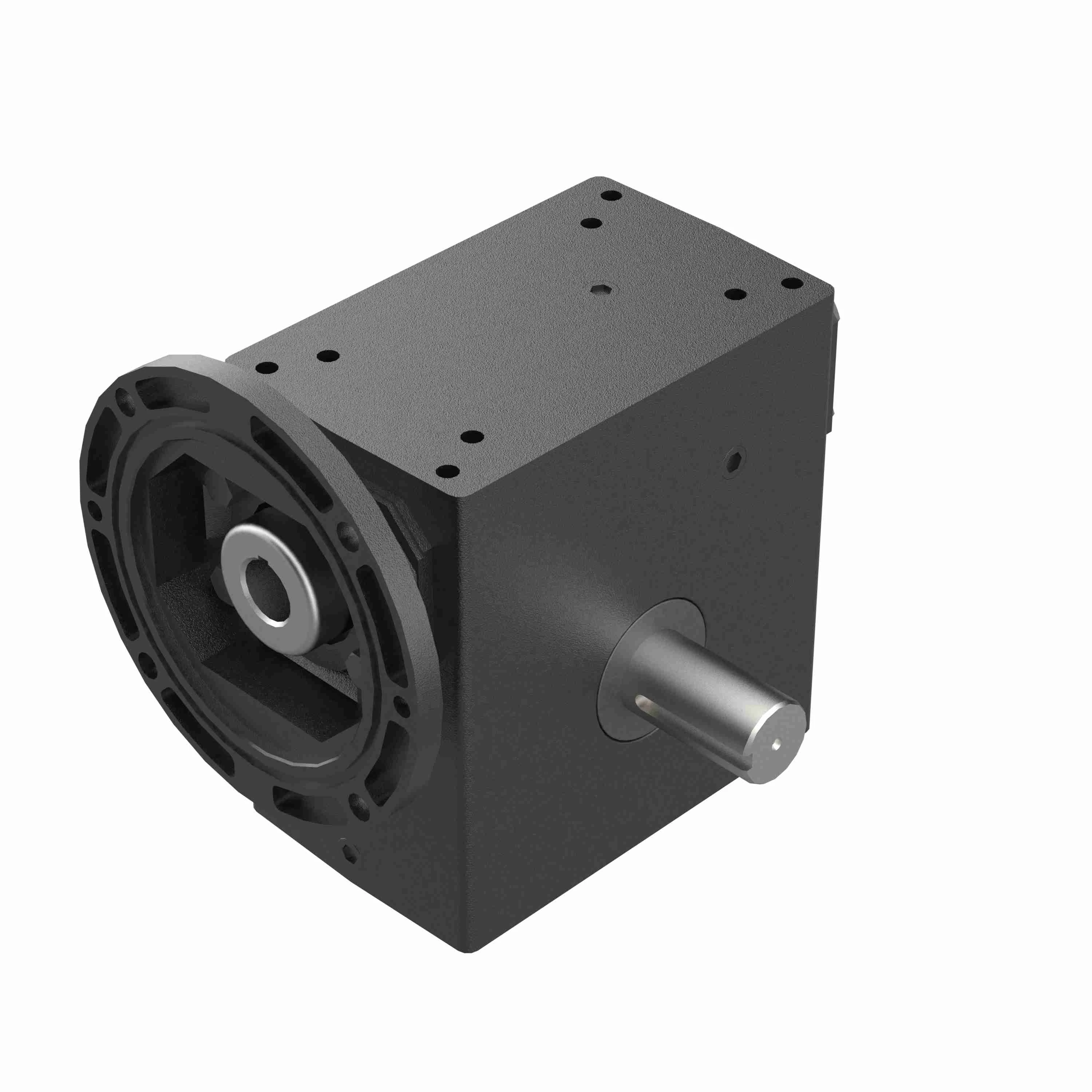

HUB CITY 0230-07245 Worm Reducer, 2 Hp, 1.250 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Thursday, Aug 27
€1,260.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.63" |
| Efficiency | 77% |
| Frame Size | 56C |
| Gear Ratio | 30:1 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 2 hp to 3 hp |
| Input Dia. | 5/8" |
| Input Hp | 2 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Style | C Face Quill |
| Input Type | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Lubrication Type | Conventional Oil |
| Material | Cast Iron |
| Max. Input Hp | 2 hp |
| Max. Input Speed | 1750 RPM |
| Max. Output Speed | 58.3 RPM |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Keyway Size | 1/4" x 1/8" |
| Output Length | 2 1/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Speed | 58.3 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Output Torque Rating | 1634 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 1150 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 30:1 |
| Series | 260PCX Series |
| Service Factor | 1 |
| Style | C |
| Torque | 1634 lbs.-in. |
| Type | Right Angle Single Reduction Style C |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | Input Dia. | Output Speed | Max. Input Hp | Frame Size | Torque | Hp | Output Shaft Direction | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-07233 | 1 1/8" | 58.3 RPM | 2 hp | 180TC | 1634 lbs.-in. | 2 hp to 3 hp | Left | B | €1,455.50 | |
 |
0230-07246 | 5/8" | 43.8 RPM | 1 29/50 hp | 56C | 1642 lbs.-in. | 1 hp to 2 hp | Right | C | €1,260.16 | |
 |
0230-07209 | 5/8" | 58.3 RPM | 2 hp | 56C | 1634 lbs.-in. | 2 hp to 3 hp | Left | B | €1,260.16 | |
 |
0230-07247 | 5/8" | 35 RPM | 1.27 hp | 56C | 1583 lbs.-in. | 1 hp to 2 hp | Right | C | €1,260.16 | |
 |
0230-07229 | 1 1/8" | 175 RPM | 5 hp | 180TC | 1485 lbs.-in. | 5 hp to 7 1/2 hp | Left | B | €1,455.50 | |
 |
0230-07205 | 5/8" | 175 RPM | 5 hp | 56C | 1485 lbs.-in. | 5 hp to 7 1/2 hp | Left | B | €1,455.50 | |
|
0230-07176 | 5/8" | 29.2 RPM | 1.03 hp | 56C | 1493 lbs.-in. | 1 hp to 2 hp | Double | A | €1,260.16 |
