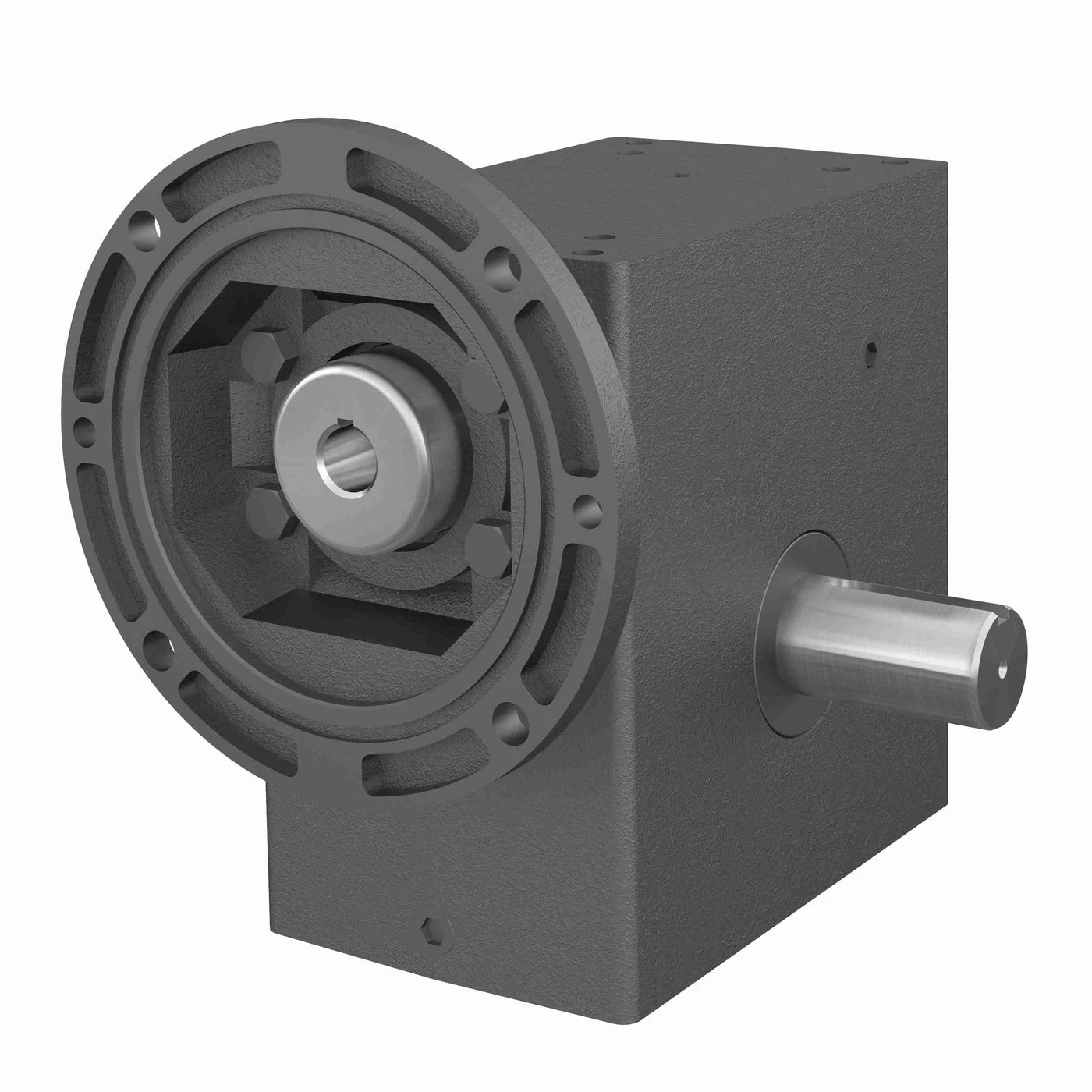

HUB CITY 0230-07243 Worm Reducer, 2.83 Hp, 1.250 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Tuesday, Dec 23
€1,455.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.63" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 2.83 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Rpm | 87.5 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Overhung Load | 1150 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | C |
| Torque Rating | 1640 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Type | Overhung Load | Gear Ratio | Housing Material | Output Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-07233 | 2 hp | 180TC | Worm | 1150 | - | Cast Iron | - | - | €1,455.50 | |
 |
0230-07246 | 1 29/50 hp | 56C | Worm | 1150 | - | Cast Iron | - | - | €1,260.16 | |
 |
0230-07209 | 2 hp | 56C | Worm | 1150 | - | Cast Iron | - | - | €1,260.16 | |
 |
0230-07247 | 1.27 hp | 56C | Worm | 1150 | - | Cast Iron | - | - | €1,260.16 | |
 |
0230-07229 | 5 hp | 180TC | Worm | 1150 | - | Cast Iron | - | - | €1,455.50 | |
 |
0230-07205 | 5 hp | 56C | Worm | 1150 | - | Cast Iron | - | - | €1,455.50 | |
|
0230-07176 | 1.03 hp | 56C | Worm | 1150 | - | Cast Iron | - | - | €1,260.16 |
