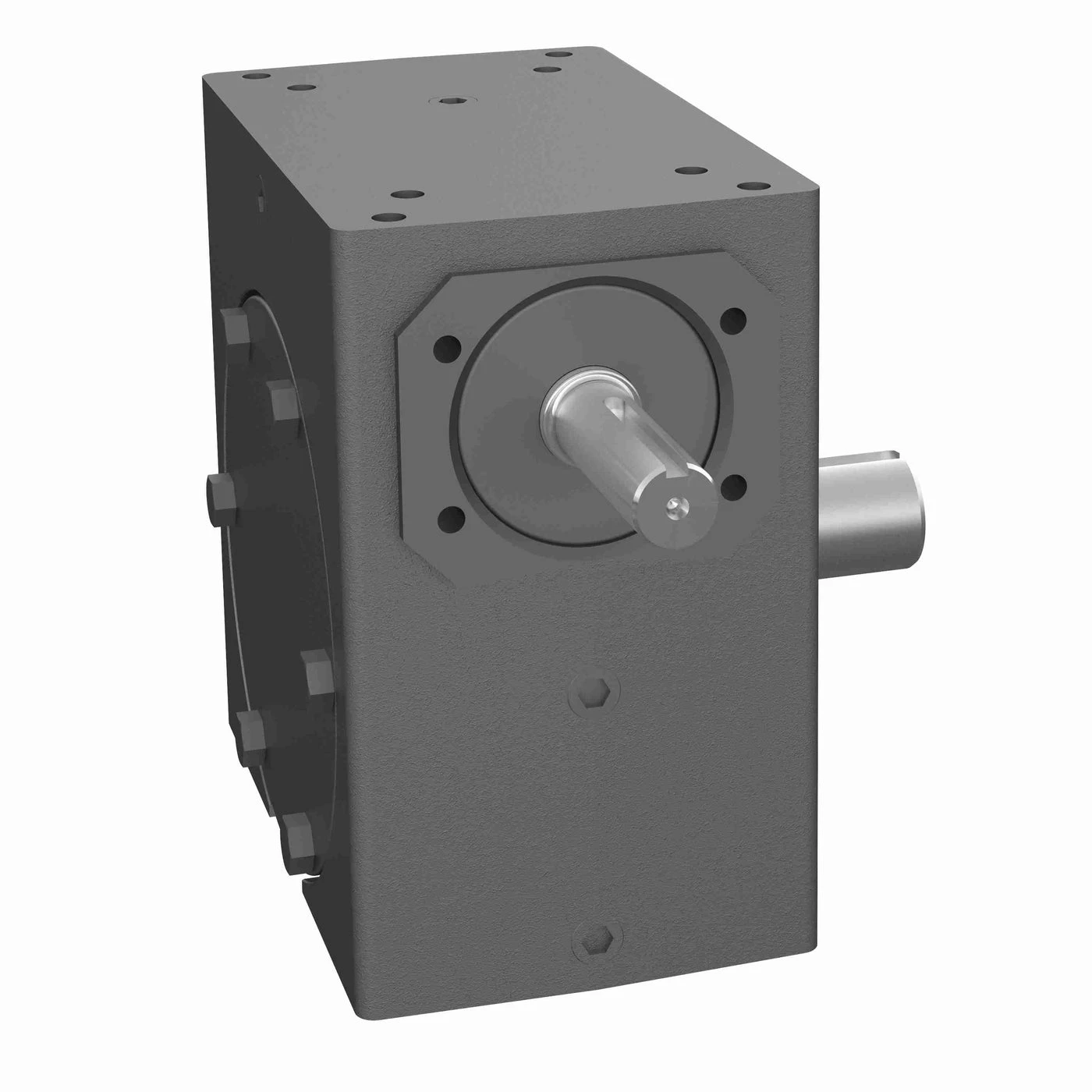

HUB CITY 0230-06978 Worm Reducer, 3.49 Hp, 1.250 Inch I.D, 0.75 Inch O.D, Cast Iron
Get it by Friday, Aug 28
€1,211.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.63" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 3 hp to 5 hp |
| Input Dia. | 3/4" |
| Input Style | Shaft |
| Max. Input Hp | 3.49 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Speed | 117 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 15:1 |
| Service Factor | 1 |
| Style | C |
| Torque | 1570 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | Output Speed | Max. Input Hp | Torque | Hp | Output Shaft Direction | Style | Ratio | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

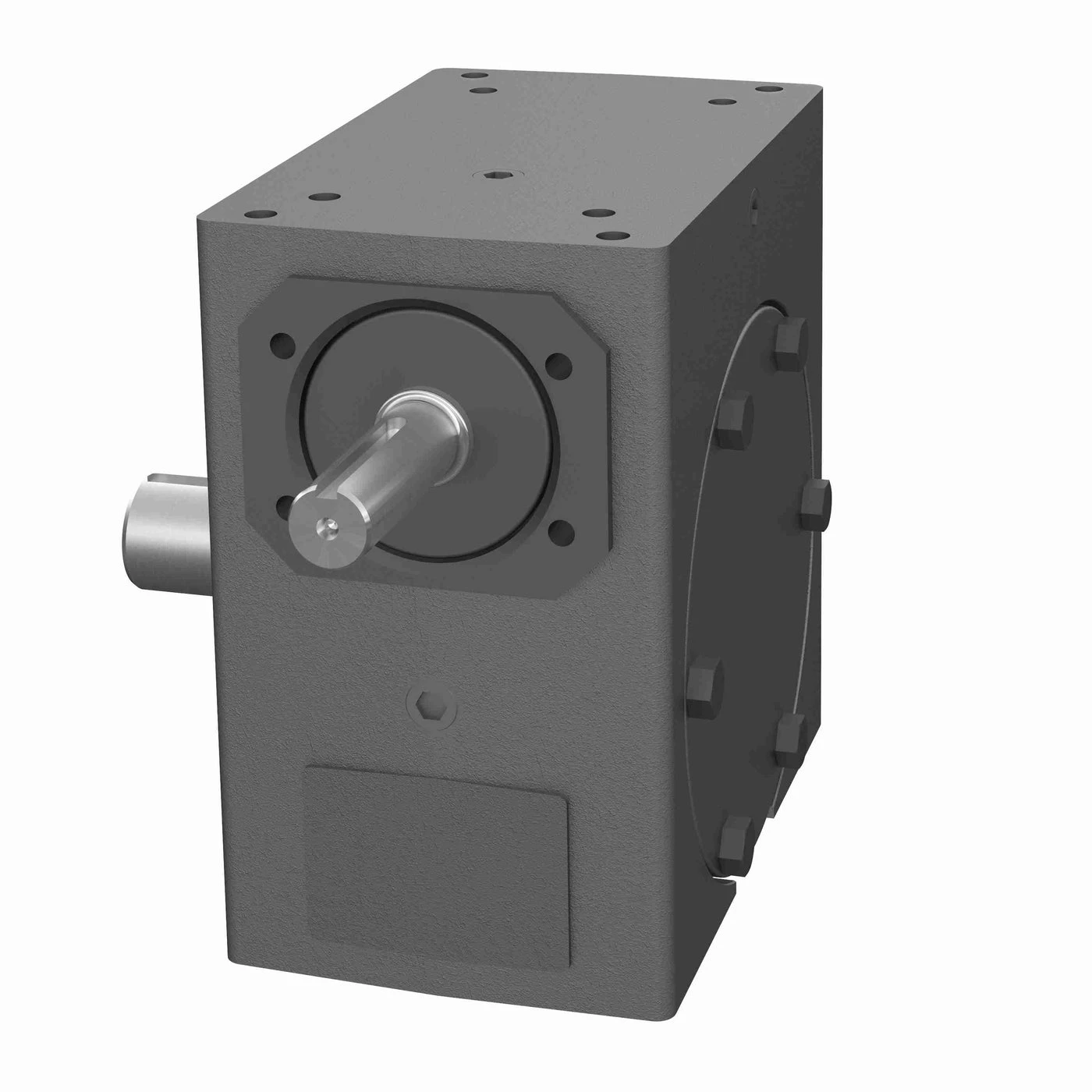

0230-06969 | 58.3 RPM | 2 hp | 1634 lbs.-in. | 2 hp to 3 hp | Left | B | 30:1 | Cast Iron | €1,211.04 | |
 |
0230-06981 | 58.3 RPM | 2 hp | 1634 lbs.-in. | 2 hp to 3 hp | Right | C | 30:1 | Cast Iron | €1,211.04 | |
 |
0230-06984 | 29.2 RPM | 1.03 hp | 1493 lbs.-in. | 1 hp to 2 hp | Right | C | 60:1 | Cast Iron | €1,211.04 |
