HUB CITY 0230-00159 Worm Reducer, 0.86 Hp, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Tuesday, Sep 1
€709.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 1.33" |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 1/2 hp to 1 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 43/50 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 5/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Speed | 175 RPM |
| Output Torque | 250 lbs.-in. to 500 lbs.-in. |
| Overhung Load | 225 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 10:1 |
| Service Factor | 1 |
| Style | C |
| Torque | 253 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 24.13 |
Product Variants
| Product | Model | Output Speed | Output Torque | Max. Input Hp | Torque | Hp | Output Shaft Direction | Style | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-00089 | 87.5 RPM | 250 lbs.-in. to 500 lbs.-in. | 0.51 hp | 275 lbs.-in. | 1/2 hp to 1 hp | Double | A | 20:1 | €819.31 | |
 |
0230-00088 | 117 RPM | 250 lbs.-in. to 500 lbs.-in. | 13/20 hp | 271 lbs.-in. | 1/2 hp to 1 hp | Double | A | 15:1 | €819.31 | |
 |

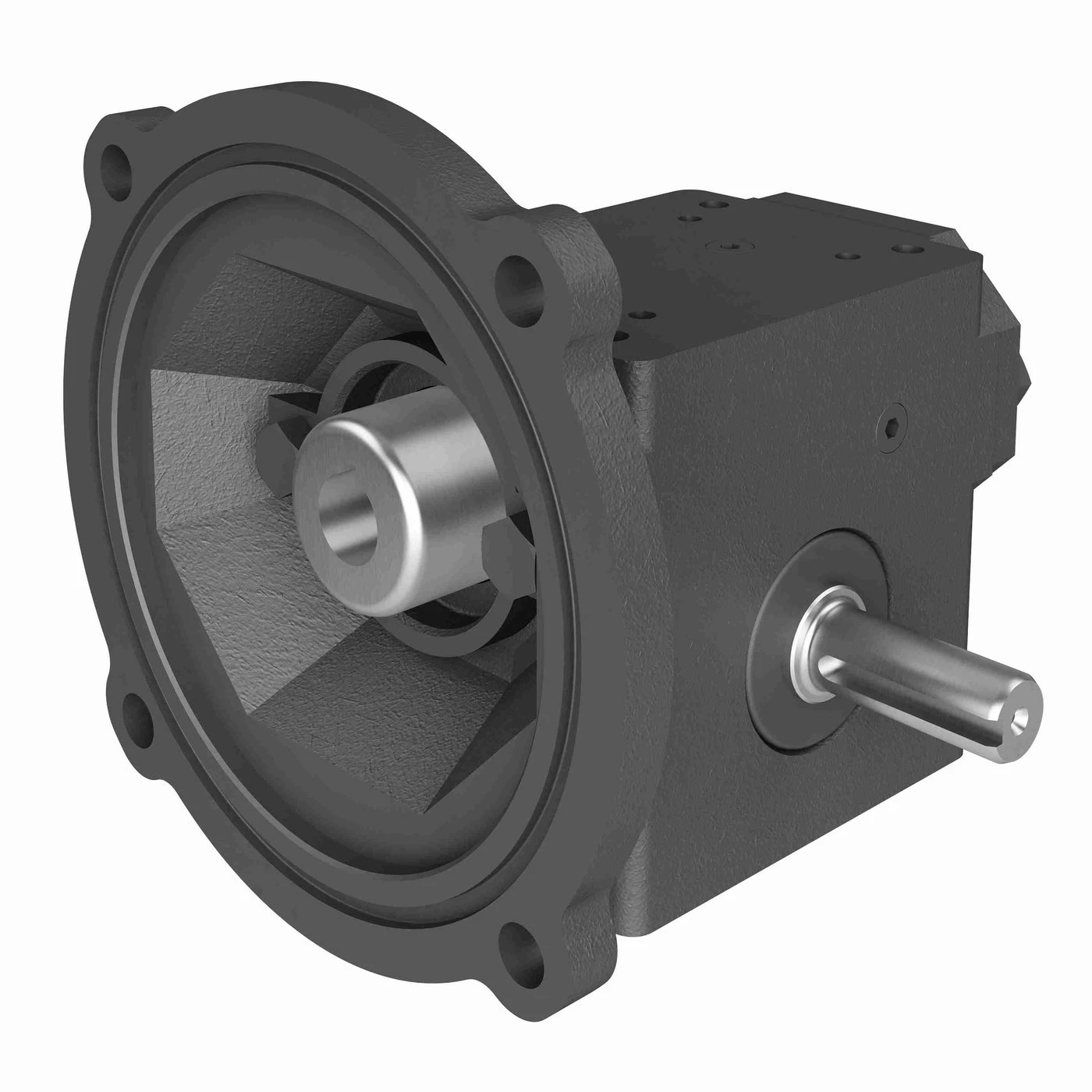

0230-00161 | 87.5 RPM | 250 lbs.-in. to 500 lbs.-in. | 0.51 hp | 275 lbs.-in. | 1/2 hp to 1 hp | Right | C | 20:1 | €819.31 | |
 |

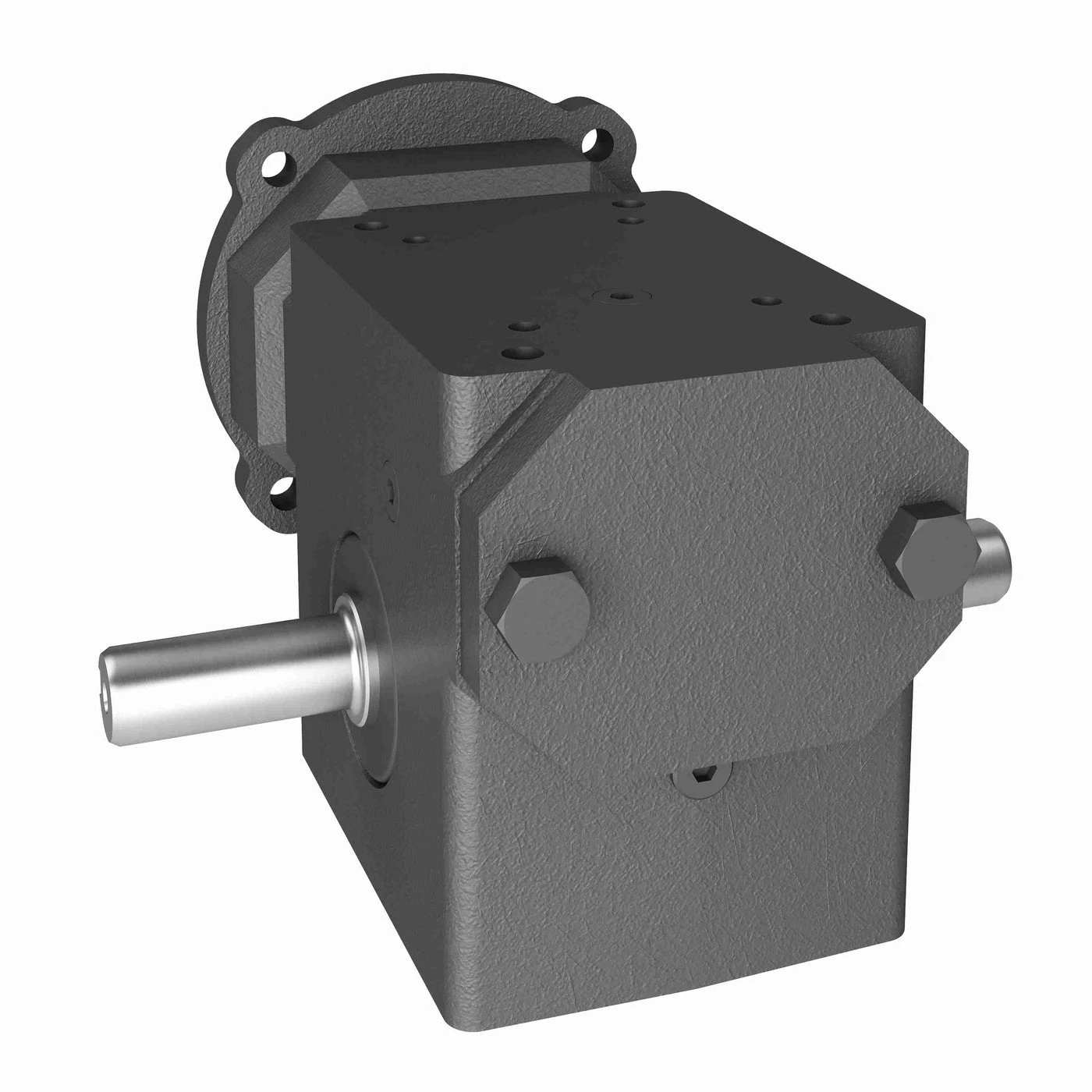

0230-00085 | 350 RPM | 0 lbs.-in. to 250 lbs.-in. | 1 19/50 hp | 211 lbs.-in. | 1 hp to 2 hp | Double | A | 5:1 | €819.31 | |
 |

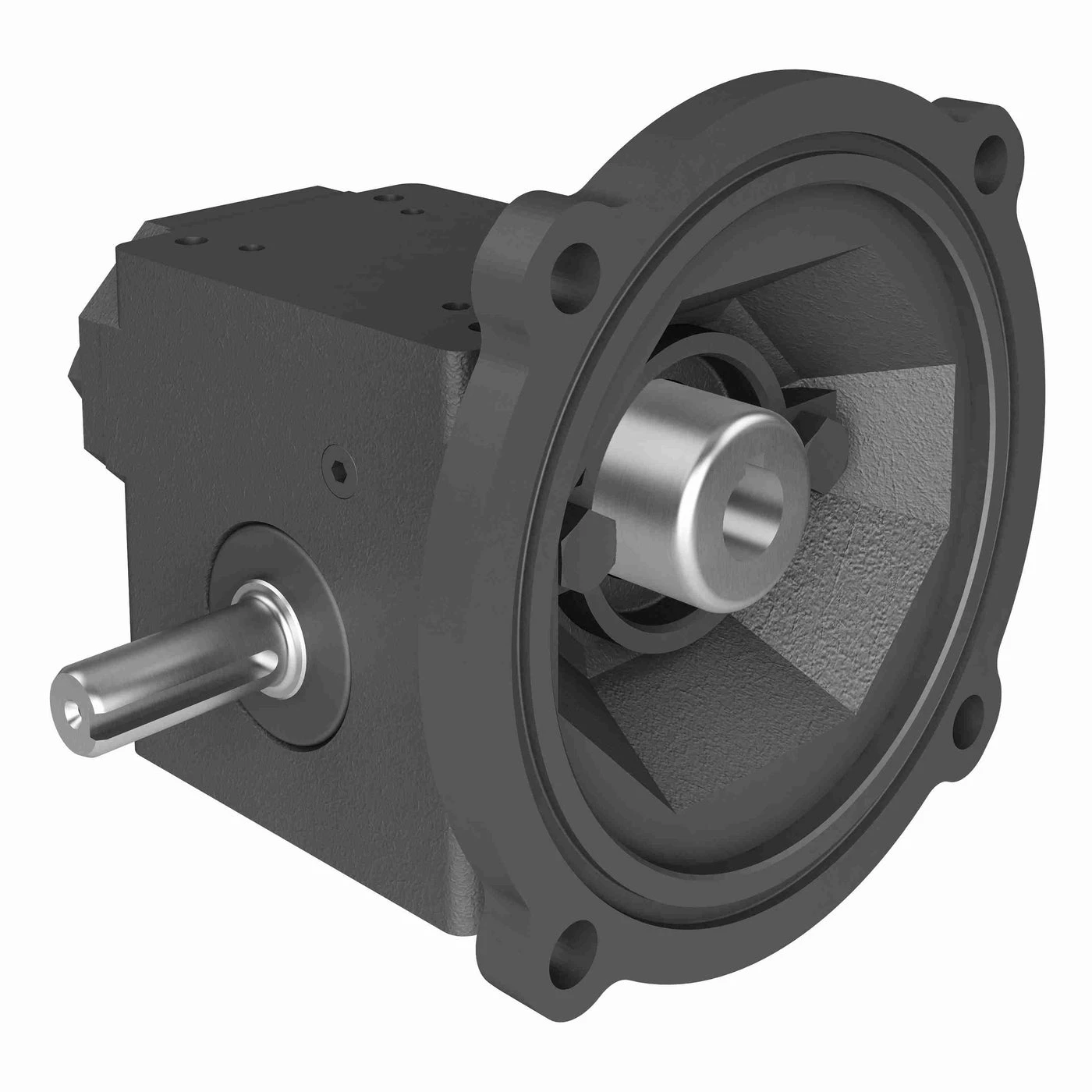

0230-00130 | 29.2 RPM | 250 lbs.-in. to 500 lbs.-in. | 0.207 hp | 250 lbs.-in. | 0 hp to 1/2 hp, 1/3 hp | Left | B | 60:1 | €819.31 | |
 |
0230-00087 | 175 RPM | 250 lbs.-in. to 500 lbs.-in. | 43/50 hp | 253 lbs.-in. | 1/2 hp to 1 hp | Double | A | 10:1 | €709.36 | |
 |
0230-00157 | 350 RPM | 0 lbs.-in. to 250 lbs.-in. | 1 19/50 hp | 211 lbs.-in. | 1 hp to 2 hp | Right | C | 5:1 | €709.36 |
