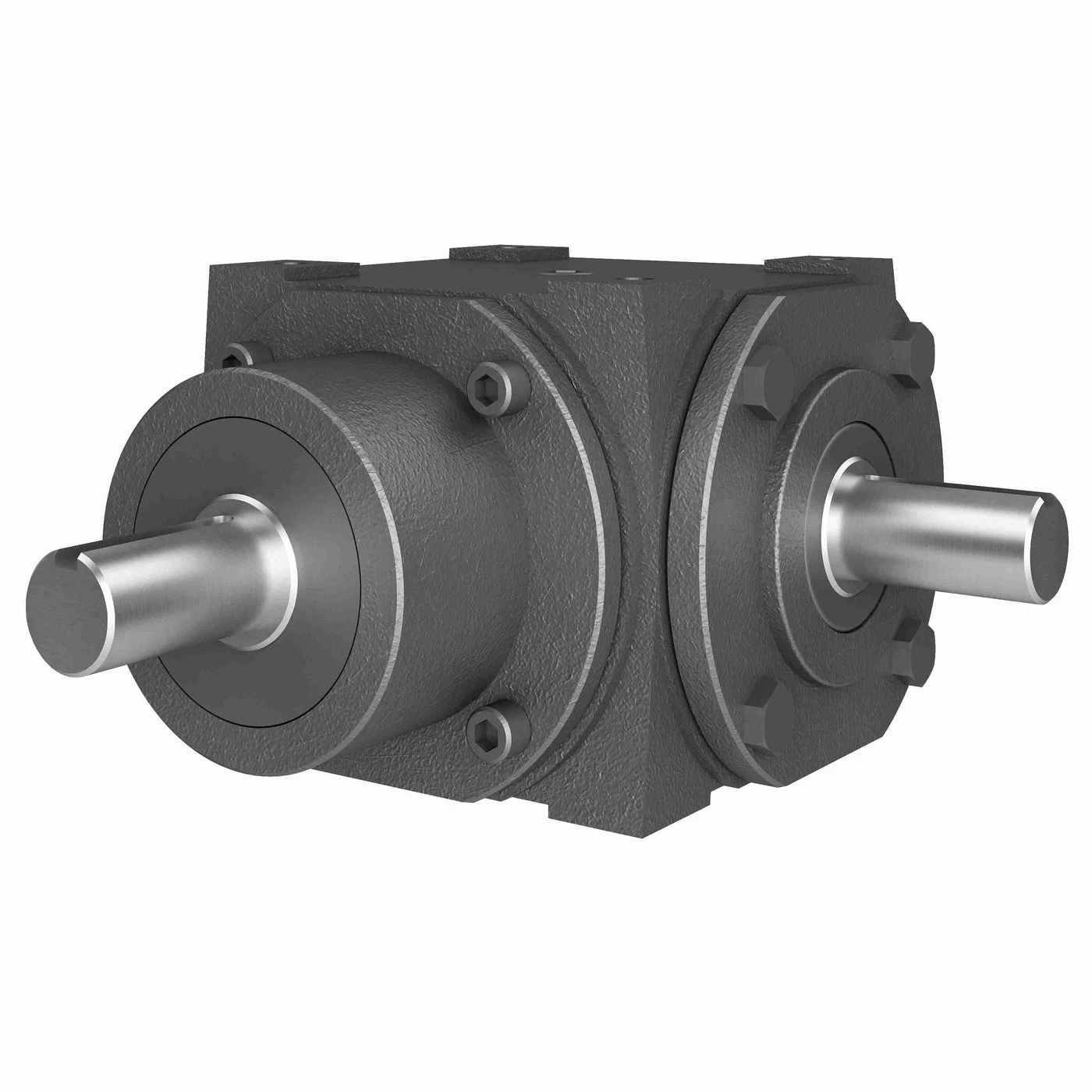

HUB CITY 0220-75464 Bevel Gear Drive, 19.96 HP, 0.750 Inch I.D, 0.750 Inch O.D, Cast Iron
719 lbs.-in.
1750 RPM
Left/Right
Get it by Thursday, Aug 27
€996.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 44 |
| Gear Type | Straight Bevel |
| Housing Height | 3 5/8" |
| Housing Length | 5 5/8" |
| Housing Material | Cast Iron |
| Housing Width | 4 31/32" |
| Hp | 15 hp to 20 hp |
| Input Dia. | 3/4" |
| Input Hp | 19 24/25 hp |
| Input Hp @ 1750 Rpm | 19 24/25 hp |
| Input Style | Shaft |
| Max. Input Hp | 19 24/25 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 3/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Speed | 1750 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Service Factor | 1 |
| Style | C, F |
| Torque | 719 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 6.21 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
Product Variants
| Product | Model | Output Speed | Output Torque | Max. Input Hp | Torque | Hp | Output Shaft Direction | Style | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-75460 | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | 19 24/25 hp | 719 lbs.-in. | 15 hp to 20 hp | Double | A, B | 1:1 | €790.61 | |
 |
0220-75467 | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 5 19/20 hp | 429 lbs.-in. | 5 hp to 7 1/2 hp | Left Or Right | C, F | 2:1 | €1,290.36 | |
 |
0220-75468 | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | 19 24/25 hp | 719 lbs.-in. | 15 hp to 20 hp | Left Or Right | D, E | 1:1 | €996.19 | |
 |
0220-75466 | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 10 1/20 hp | 516 lbs.-in. | 10 hp to 15 hp | Left Or Right | C, F | 1.5:1 | €1,290.36 | |
 |
0220-75471 | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 5 19/20 hp | 429 lbs.-in. | 5 hp to 7 1/2 hp | Left Or Right | D, E | 2:1 | €1,290.36 | |
 |
0220-75470 | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 10 1/20 hp | 516 lbs.-in. | 10 hp to 15 hp | Left Or Right | D, E | 1.5:1 | €1,290.36 | |
 |

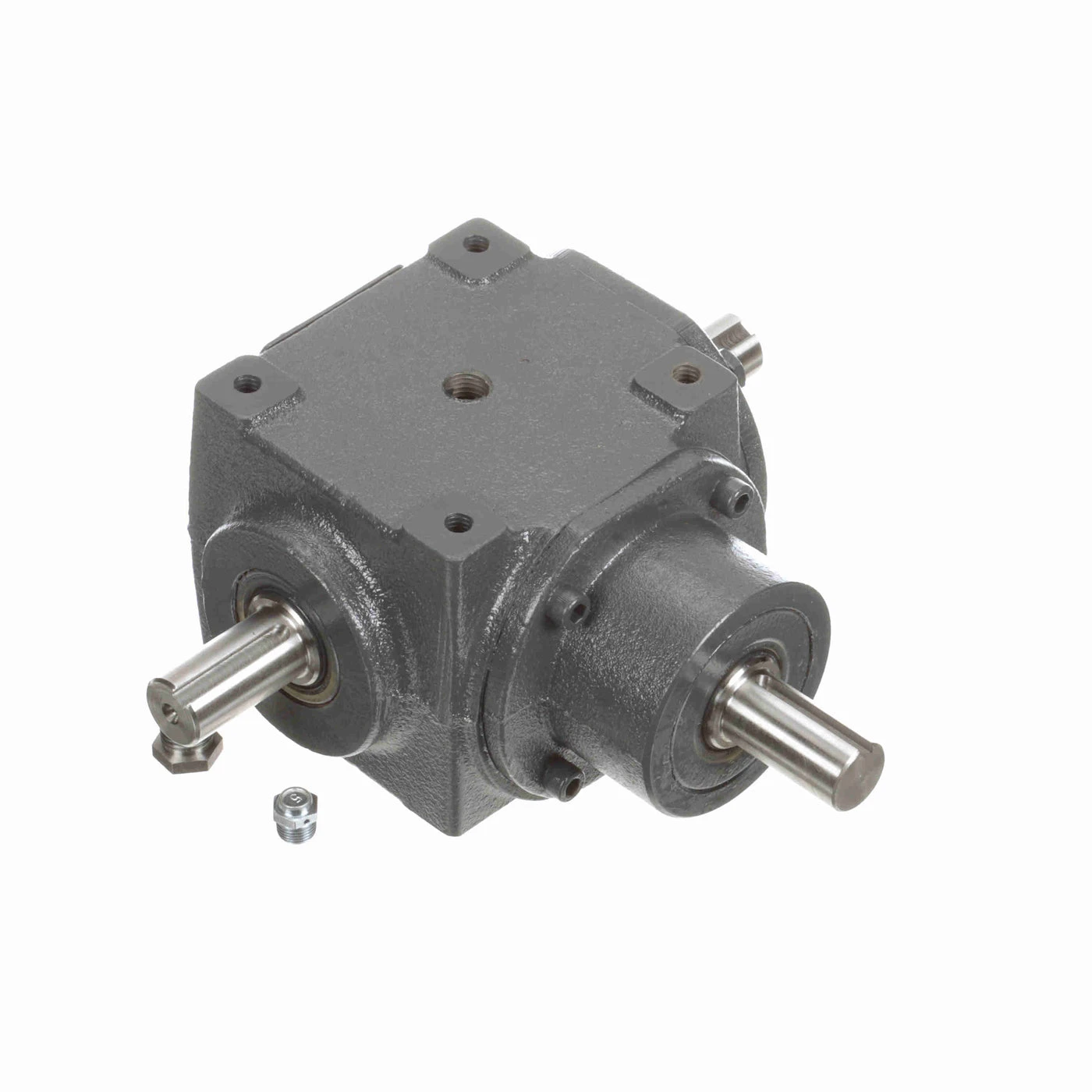

0220-75462 | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 10 1/20 hp | 516 lbs.-in. | 10 hp to 15 hp | Double | A, B | 1.5:1 | €1,290.36 |
