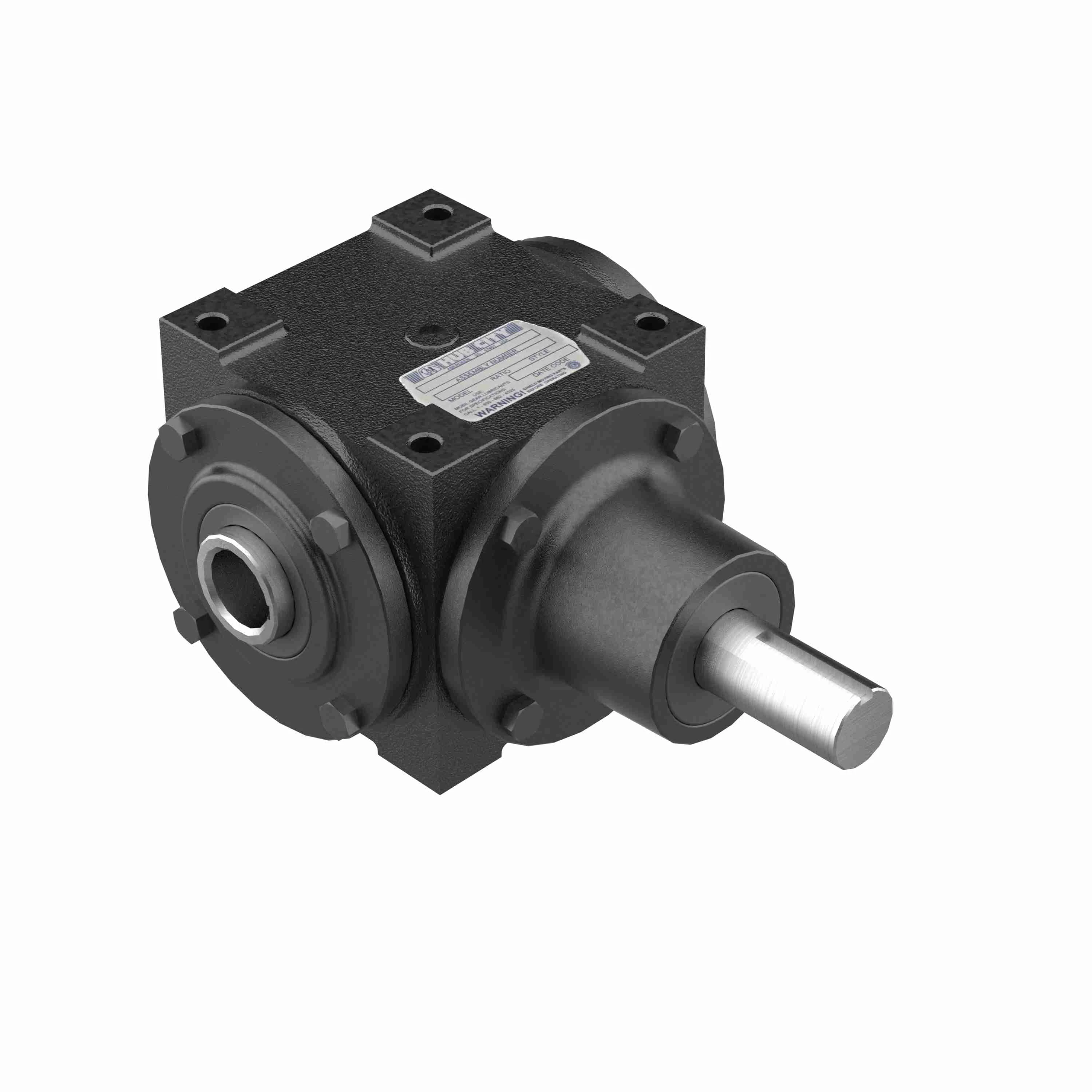

HUB CITY 0220-74759 Bevel Gear Drive, 46 HP, 1.250 Inch I.D, 1.250 Inch O.D, Cast Iron
Get it by Tuesday, Sep 1
€2,057.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 65 |
| Gear Type | Spiral Bevel |
| Housing Height | 5 5/8" |
| Housing Length | 8 11/16" |
| Housing Material | Cast Iron |
| Housing Width | 7 3/16" |
| Input Dia. | 1 1/4" |
| Input Hp @ 1750 Rpm | 46 hp |
| Input Style | Shaft |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Double |
| Output Speed | 1750 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Service Factor | 1 |
| Style | A, B |
| Torque | 1650 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 18.09 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 33.02 |
Product Variants
| Product | Model | Output Speed | Output Torque | Max. Input Hp | Torque | Style | Ratio | Housing Material | Output Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-74762 | 583.3 RPM | 500 lbs.-in. to 1000 lbs.-in. | 9 1/5 hp | 975 lbs.-in. | A, B | 3:1 | Cast Iron | 1 1/4" | €2,723.52 | |
 |

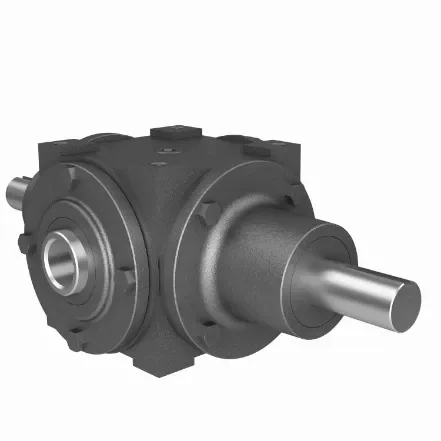

0220-74763 | 1750 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 46 hp | 1650 lbs.-in. | Gg | 1:1 | Cast Iron | 1 1/4" | €3,593.12 | |
 |
0220-74760 | 1143.8 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 35 hp | 1887 lbs.-in. | A, B | 1.53:1 | Cast Iron | 1 1/4" | €2,181.44 | |
 |
0220-74761 | 875 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 15 2/5 hp | 1112 lbs.-in. | A, B | 2:1 | Cast Iron | 1 1/4" | €3,308.95 |
