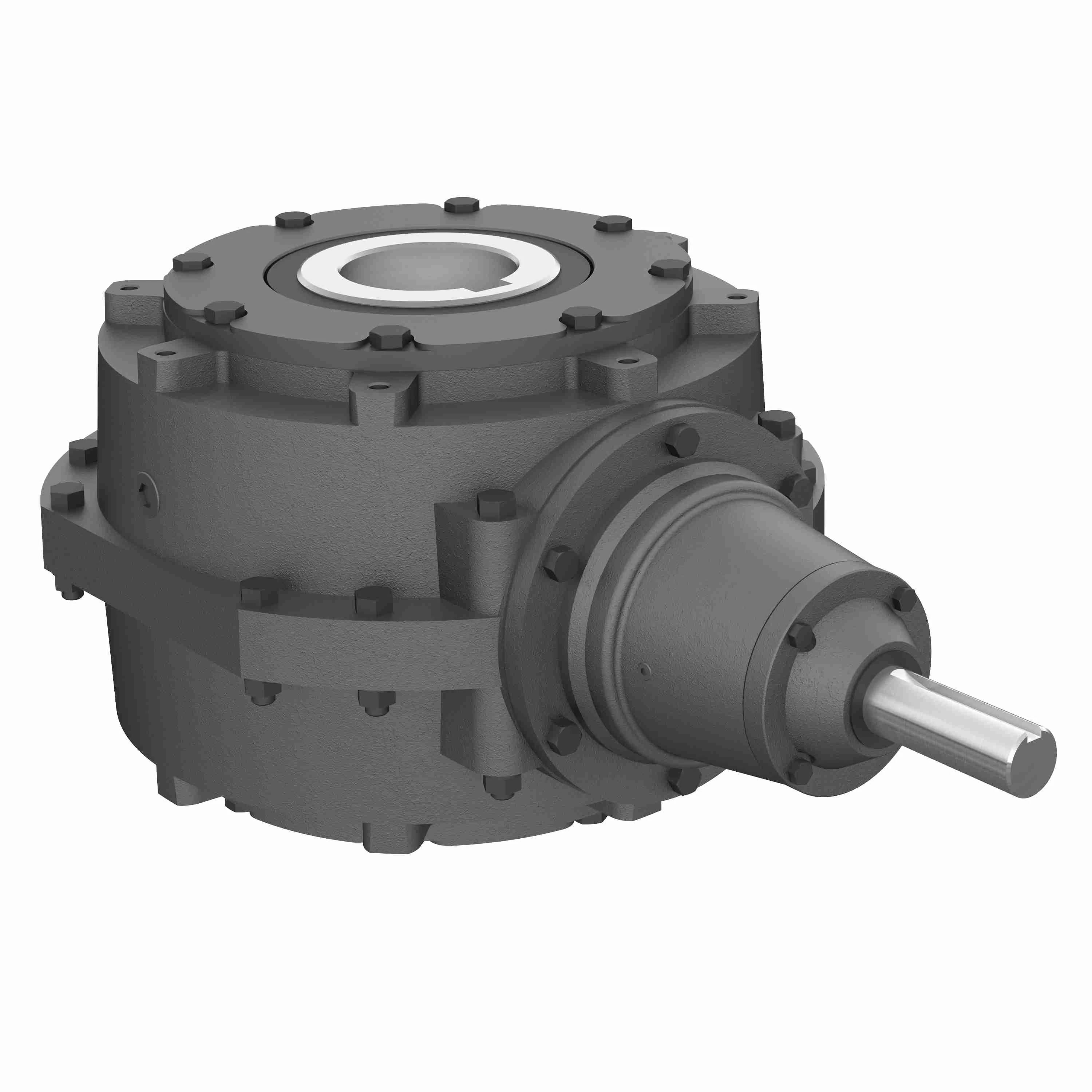

HUB CITY 0220-04553 Bevel Gear Drive, 164 HP, 1.375 Inch I.D, 4.438 Inch O.D, Cast Iron
Get it by Tuesday, Jul 14
€13,153.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 950 |
| Gear Type | Spiral Bevel |
| Housing Height | 16" |
| Housing Length | 23 11/16" |
| Housing Material | Cast Iron |
| Housing Width | 11 1/2" |
| Input Dia. | 1 3/8" |
| Input Hp | 164 hp @ 1750 RPM |
| Input Style | Shaft |
| Output | 383.8 RPM |
| Output Dia. | 4.438" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque | 20000 lbs.-in. to 30000 lbs.-in. |
| Output Torque Rating | 26933 lbs.-in. |
| Ratio | 4.561 |
| Reduction | Single |
| Service Factor | 1 |
| Style | STD |
Shipping Info:
| Ship weight (kg) | 153 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 60.96 |
Product Variants
| Product | Model | output torque | output | ratio | gear type | input style | housing material | service factor | output shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-04556 | 30000 lbs.-in. to 40000 lbs.-in. | 318.2 RPM | 5.51 | Spiral Bevel | Shaft | Cast Iron | 1 | Hollow Bore | €17,887.17 | |
|
0220-04560 | 20000 lbs.-in. to 30000 lbs.-in. | 238.7 RPM | 7.331 | Spiral Bevel | Shaft | Cast Iron | 1 | Hollow Bore | - | RFQ
|
