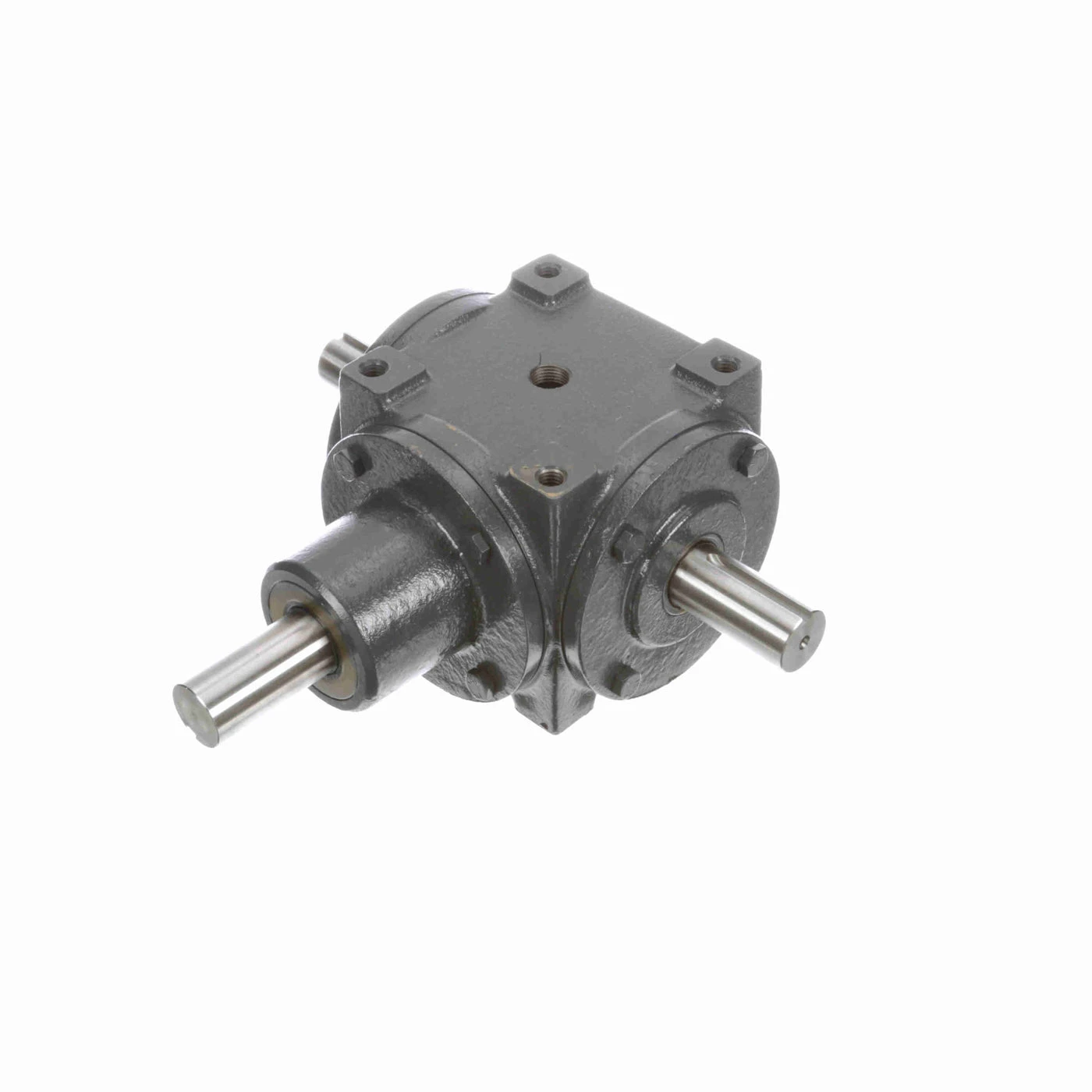

HUB CITY 0220-03604 Bevel Gear Drive, 9.2 HP, 1.250 Inch I.D, 1.250 Inch O.D, Cast Iron
Get it by Tuesday, Dec 23
€3,543.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 66 |
| Gear Type | Spiral Bevel |
| Housing Height | 5 5/8" |
| Housing Length | 8 11/16" |
| Housing Material | Cast Iron |
| Housing Width | 7 1/4" |
| Input Dia. | 1 1/4" |
| Input Style | Shaft |
| Max. Input Hp | 9 1/5 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Rpm | 583.3 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Product Datasheet | hub-city-0220-04065.pdf |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 3:1 |
| Service Factor | 1 |
| Style | G |
| Torque Rating | 975 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
Documentation:
Product Variants
| Product | Model | Gear Type | Max. Input Hp | Gear Ratio | Hp | Housing Material | Output Type | Material | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-03535 | Straight Bevel | 24 1/5 hp | - | - | Cast Iron | - | - | - | €2,198.23 | |
 |
0220-03546 | Straight Bevel | 15 hp | - | - | Cast Iron | - | - | - | €1,620.68 | |
 |
0220-03602 | Spiral Bevel | - | - | - | Cast Iron | - | - | - | €2,362.45 | |
 |
0220-03516 | Straight Bevel | 24 1/5 hp | - | - | Cast Iron | - | - | - | €1,235.40 | |
 |
0220-03536 | Straight Bevel | 24 1/5 hp | - | - | Cast Iron | - | - | - | €1,983.81 | |
 |
0220-03549 | Straight Bevel | 15 hp | - | - | Cast Iron | - | - | - | €1,620.68 | |
|
0220-03547 | Straight Bevel | 15 hp | - | - | Cast Iron | - | - | - | €1,620.68 |
