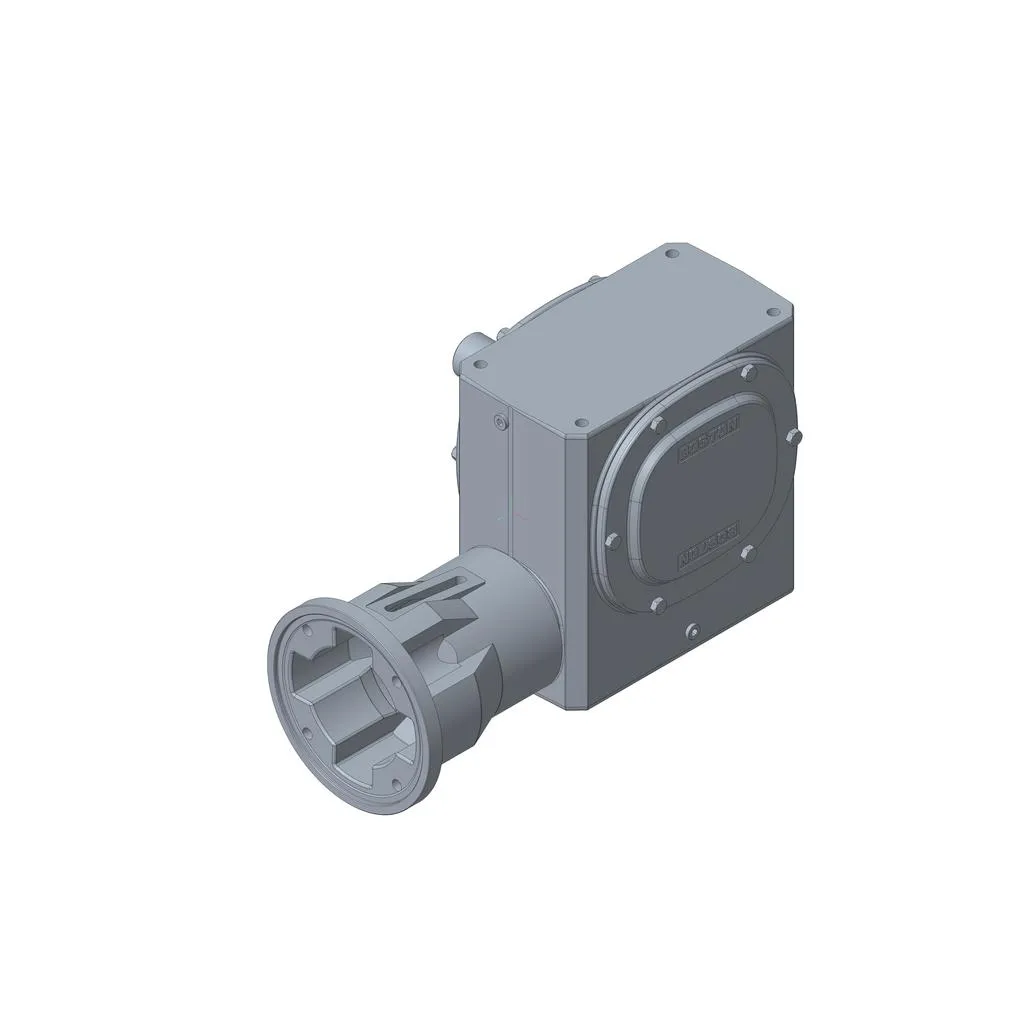

BOSTON GEAR RF752-40-B9-J Reducer, Single Reduction, 40:1 Ratio, No Base, J Assembly
€9,477.67 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Fan Cooled | No |
| Input Motor Hp | 5 hp At AGMA Service Class I |
| Input Power | 5.6 hp |
| Input Style | RF Coupled Flange |
| Motor Frame Size | B9-180TC/210C |
| Motor Hp | 5 hp |
| Output Bore/shaft Diameter | 2" |
| Output Shaft | J Solid Right Output |
| Output Speed | 43.8 RPM |
| Output Torque | 6889 lbs.-in. |
| Pre-lubricated | No |
| Rated Efficiency | 85% |
| Ratio | 40:1 |
| Recommended Lubrication | Klubersynth UH1 6-460 |
| Reducer Material/paint | Cast Iron, Standard Paint |
| Reduction Type | Single Reduction Right Angle |
Product Variants
| Model | Gear Ratio | Max. Input Hp | Motor Frame Designation | Worm Center Distance | Base To Shaft Center | Overhung Load | Finish | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RF752-10E-B11-G | 101 | 17 3/10 hp | 210Tc/250Uc | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 | |
| RF752-10E-B13-G | 101 | 17 3/10 hp | 250TC | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 | |
| RF752-15E-B11-G | 151 | 13 1/10 hp | 210Tc/250Uc | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 | |
| RF752-20E-B11-G | 201 | 10 1/5 hp | 210Tc/250Uc | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 | |
| RF752-30E-B9-G | 301 | 7 3/10 hp | 180Tc/210C | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,531.37 | |
| RF752-30E-B11-G | 301 | 7 3/10 hp | 210Tc/250Uc | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,928.62 | |
| RF752-40E-B9-G | 401 | 5 3/5 hp | 180Tc/210C | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 |
