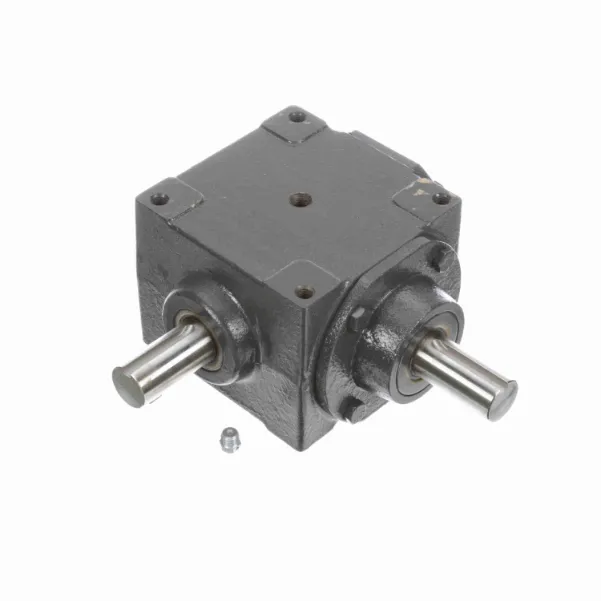

HUB CITY 0220-00819 Bevel Gear Drive, 6.25 HP, 1 Inch I.D, 1 Inch O.D, Cast Iron
2:1
442 lbs.-in.
Left/Right
Get it by Monday, Dec 22
€1,047.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 150 |
| Gear Type | Straight Bevel |
| Housing Height | 4 1/8" |
| Housing Length | 6 9/32" |
| Housing Material | Cast Iron |
| Housing Width | 6 3/16" |
| Hp Range | 5 hp to 7 1/2 hp |
| Input Dia. | 1" |
| Input Hp | 6 1/4 hp |
| Input Hp @ 1750 Rpm | 6 1/4 hp |
| Input Style | Shaft |
| Max. Input Hp | 6 1/4 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Rpm | 875 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 250 lbs.-in. to 500 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 2:1 |
| Service Factor | 1 |
| Style | D, E |
| Torque Rating | 442 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
Product Variants
| Product | Model | Gear Type | Max. Input Hp | Gear Ratio | Hp | Housing Material | Output Type | Material | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-00813 | Spiral Bevel | - | - | - | Cast Iron | - | - | - | €1,256.44 | |
 |
0220-00846 | Straight Bevel | 8 1/5 hp | - | - | Cast Iron | - | - | - | €1,090.39 | |
 |
0220-00834 | Straight Bevel | 7 1/5 hp | - | - | Cast Iron | - | - | - | €1,176.83 | |
 |
0220-00845 | Straight Bevel | 7 1/5 hp | - | - | Cast Iron | - | - | - | €1,176.83 | |
 |
0220-00833 | Straight Bevel | 7 1/5 hp | - | - | Cast Iron | - | - | - | €1,176.83 | |
 |
0220-00827 | Straight Bevel | 7 1/5 hp | - | - | Cast Iron | - | - | - | €1,576.82 | |
 |
0220-00838 | Straight Bevel | 7 1/5 hp | - | - | Cast Iron | - | - | - | €2,112.38 |
