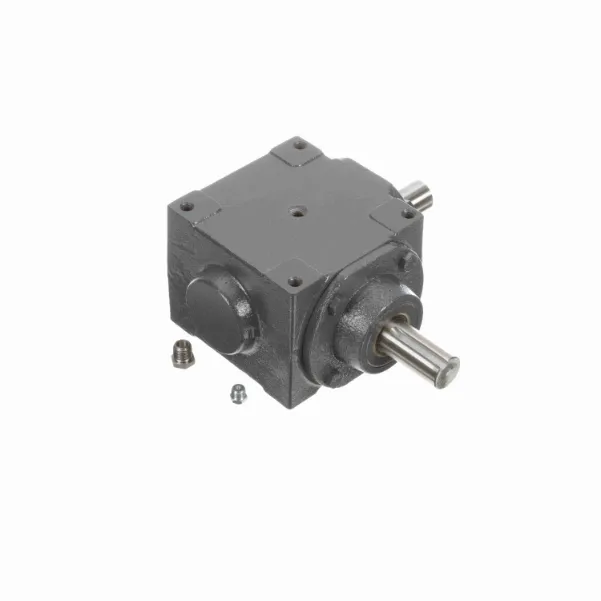

HUB CITY 0220-00816 Bevel Gear Drive, 16 HP, 1 Inch I.D, 1 Inch O.D, Cast Iron
Get it by Tuesday, Sep 1
€1,635.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Centre Distance | 5 23/32" |
| Dimensions | 8 9/32" x 4 1/8" |
| Efficiency | 97.5% |
| Gear Drive Size | 150 |
| Gear Ratio | 1:1 |
| Gear Type | Spiral Bevel |
| Housing Height | 4 1/8" |
| Housing Length | 6 9/32" |
| Housing Material | Cast Iron |
| Housing Width | 6 3/16" |
| Hp | 16 hp |
| Input Dia. | 1" |
| Input Hp @ 1750 Rpm | 16 hp |
| Input Keyway Size | 1/4" x 1/8" |
| Input Length | 2" |
| Input Style | Shaft |
| Input Type | Shaft |
| Lubrication Type | Conventional Oil |
| Material | Cast Iron |
| Max. Input Speed | 1750 RPM |
| Max. Output Speed | 1750 RPM |
| Mounting Type | Four Bolt Surface |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Speed | 1750 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Output Type | Shaft |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Series | 150 Series |
| Service Factor | 1 |
| Style | C, F |
| Torque | 580 lbs.-in. |
| Type | Right Angle Spiral Single Reduction Style C F |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
Product Variants
| Product | Model | Output Dia. | Output Torque | Output Speed | Max. Input Hp | Input Hp @ 1750 Rpm | Torque | Output Shaft Direction | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-00813 | 1" | 500 lbs.-in. to 1000 lbs.-in. | 1750 RPM | - | 16 hp | 580 lbs.-in. | Double | A, B | €1,256.44 | |
 |
0220-00846 | 5/8" | 250 lbs.-in. to 500 lbs.-in. | 1725 RPM | 8 1/5 hp | 8 1/5 hp | 299 lbs.-in. | Double | A, B | €1,090.39 | |
 |
0220-00834 | 5/8" | 0 lbs.-in. to 250 lbs.-in. | 2300 RPM | 7 1/5 hp | 7 1/5 hp | 195 lbs.-in. | Double | A, B | €1,176.83 | |
 |
0220-00845 | 1" | 0 lbs.-in. to 250 lbs.-in. | 2300 RPM | 7 1/5 hp | 7 1/5 hp | 195 lbs.-in. | Left Or Right | C, F | €1,176.83 | |
 |
0220-00833 | 1" | 0 lbs.-in. to 250 lbs.-in. | - | 7 1/5 hp | 7 1/5 hp | 195 lbs.-in. | Left Or Right | D, E | €1,176.83 | |
 |
0220-00827 | 1" | 0 lbs.-in. to 250 lbs.-in. | 2300 RPM | 7 1/5 hp | 7 1/5 hp | 195 lbs.-in. | Double | G | €1,576.82 | |
 |
0220-00838 | 5/8" | 0 lbs.-in. to 250 lbs.-in. | 2300 RPM | 7 1/5 hp | 7 1/5 hp | 195 lbs.-in. | Double | Gg | €2,112.38 |
