HUB CITY 0220-00308 Bevel Gear Drive, 2.19 HP, 0.6245 Inch I.D, 0.625 Inch O.D, Aluminum
Item: AK7EPCModel: 0220-00308
7 In Stock
250 lbs.-in.
1750 RPM
Left/Right
Ships within 2 days via
€925.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear Drive |
| Dimensions | 2" |
| Efficiency | 97.5% |
| Gear Drive Size | AD2 |
| Gear Ratio | 1:1 |
| Gear Type | Spiral Bevel |
| Housing Height | 2.005" |
| Housing Length | 4 11/25" |
| Housing Material | Aluminum |
| Housing Width | 3 13/32" |
| Hp | 2 19/100 hp |
| Input Dia. | 0.6245" |
| Input Hp | 2 19/100 hp |
| Input Hp @ 1750 Rpm | 2.19 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Length | 1 1/2" |
| Input Max. Speed | 1750 RPM |
| Input Style | Shaft |
| Input Type | Shaft |
| Lubrication Type | Conventional Oil |
| Material | Cast Aluminum |
| Mounting Type | Surface |
| No. Of Gear Reductions | 1 |
| Output Dia. | 0.6245" |
| Output Max. Speed | 1750 RPM |
| Output Rpm | 1750 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 0 lbs.-in. to 250 lbs.-in. |
| Output Type | Shaft |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Series | AD2 Series |
| Service Factor | 1 |
| Style | C, F |
| Torque Rating | 78.7 lbs.-in. |
| Type | Right Angle Spiral Single Reduction Style C F |
Shipping Info:
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Gear Ratio | Hp | Gear Type | Max. Input Hp | Housing Material | Output Type | Material | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

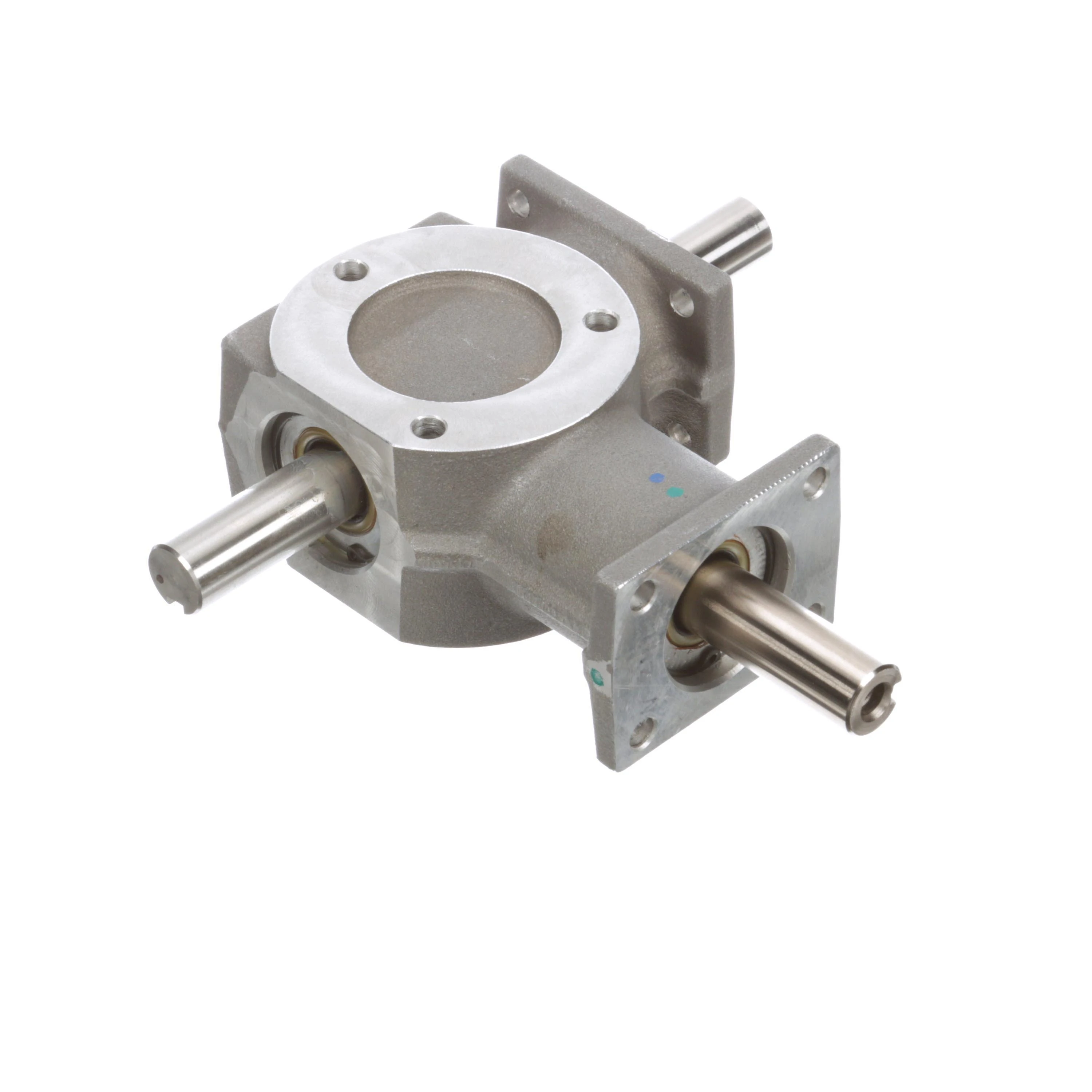

0220-00304 | 2:1 | 1 7/100 hp | Spiral Bevel | - | Aluminum | Shaft | Cast Aluminum | Surface | €1,315.31 | |
 |
0220-00305 | - | - | Spiral Bevel | - | Aluminum | - | - | - | €1,043.90 | |
 |
0220-00302 | 1:1 | 2 19/100 hp | Spiral Bevel | - | Aluminum | Shaft | Cast Aluminum | Surface | €925.19 | |
 |
0220-00309 | - | - | Spiral Bevel | - | Aluminum | - | - | - | €1,104.87 | |
 |

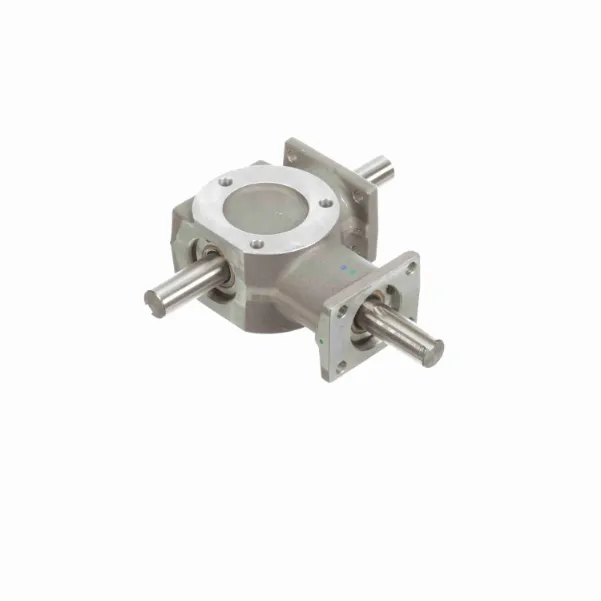

0220-00301 | - | - | Spiral Bevel | 2.19 hp | Aluminum | - | - | - | €925.19 |
