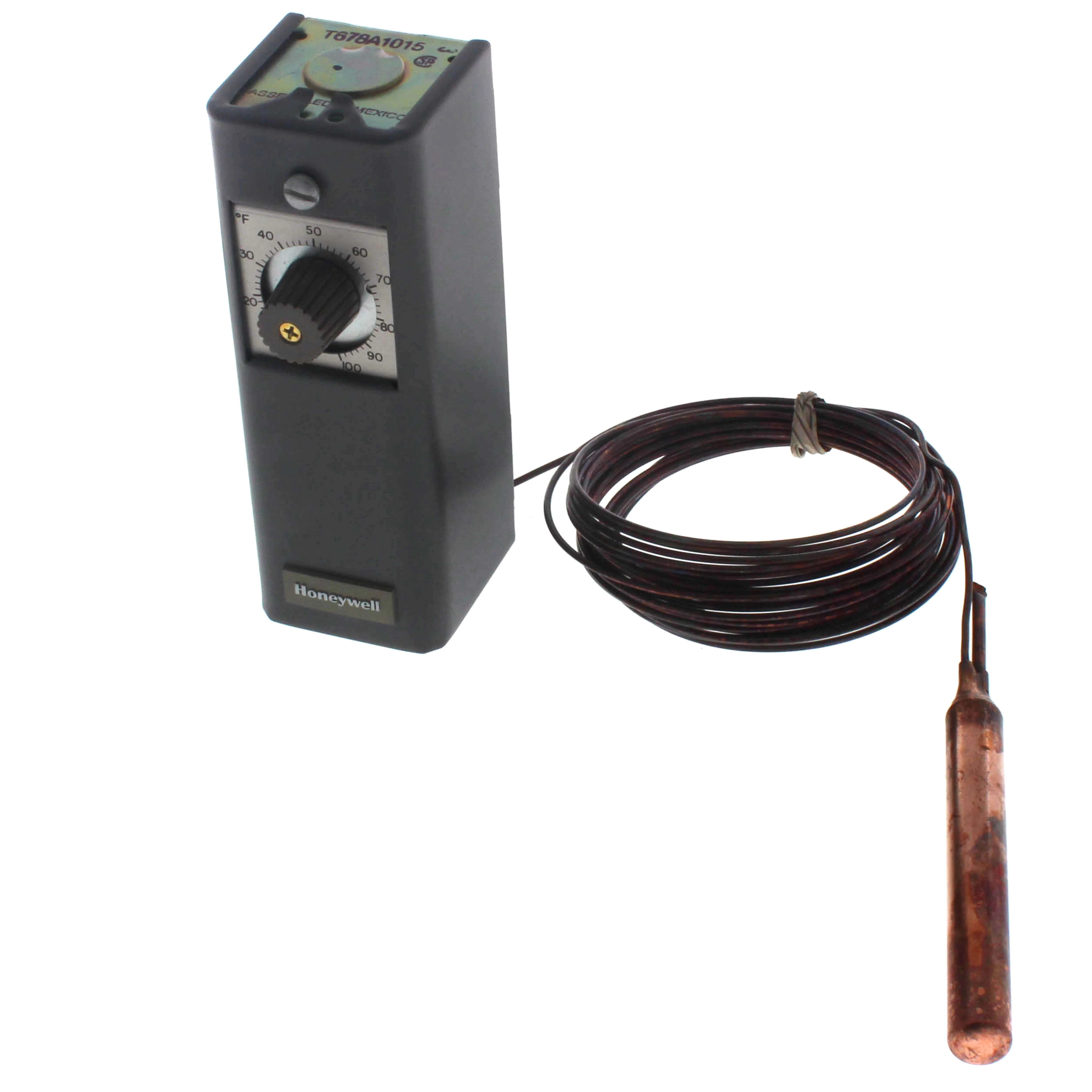

HONEYWELL T678A1015 Line Volt Mechanical Thermostat, 1H/1C
Item: CJ2RNAModel: T678A1015Cross Ref: 278Y80
7 In Stock
Ships within 2 days via
10.00% off
€894.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat And Cool |
| Bulb Diameter | 1/2" |
| Bulb Length | 4 1/4" |
| Capillary Length | 20 ft. |
| Changeover Type | Manual |
| Compatible System Type | Boilers, Ducts, Pipes, Tanks |
| Contact Rating | 120-277V AC |
| Contact Rating Resistive @ 120v | 8A |
| Control Type | Exposed Dial |
| Defrost Termination | 0°F to 100°F |
| Differential Type | Adjustable |
| Electrical Connection Type | Hardwired |
| Enclosure Color | Gray |
| Enclosure Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps @ 120v Ac | 8A |
| Full Load Amps @ 240v Ac | 5.1A |
| Inductive Amps @ 120v | 8A |
| Inductive Amps @ 240v | 5A |
| Locked Rotor Amps @ 120v | 48A |
| Locked Rotor Amps @ 240v | 30.6A |
| Maximum Control Temperature | 100°F |
| Maximum Operating Temperature | 125°F |
| Minimum Control Temperature | 0°F |
| Minimum Operating Temperature | 55°F |
| Mounting Direction | Horizontal, Vertical |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Switches | 2 |
| Operating Temperature Range | 55°F to 125°F |
| Overall Depth | 2 5/8" |
| Overall Height | 5 5/8" |
| Pilot Duty Rating | 125 VA @ 120-277V AC |
| Sensor Location | Remote |
| Sensor Type | Hydraulic Capillary Bulb Copper |
| Switch Action | Open/Close On Rise |
| Switch Type | SPDT |
| Temp. Differential | 3°F to 10°F |
| Temperature Scale | Fahrenheit, Celsius |
| Thermostat Type | Indoor Single Stage Controls |
| Voltage | 120-277V AC |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 14.29 |
| Ship length (cm) | 6.67 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
Product Variants
| Product | Model | Application | Number Of Heating Stages | Switch Type | Switch Action | Number Of Cooling Stages | Number Of Switches | Voltage | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

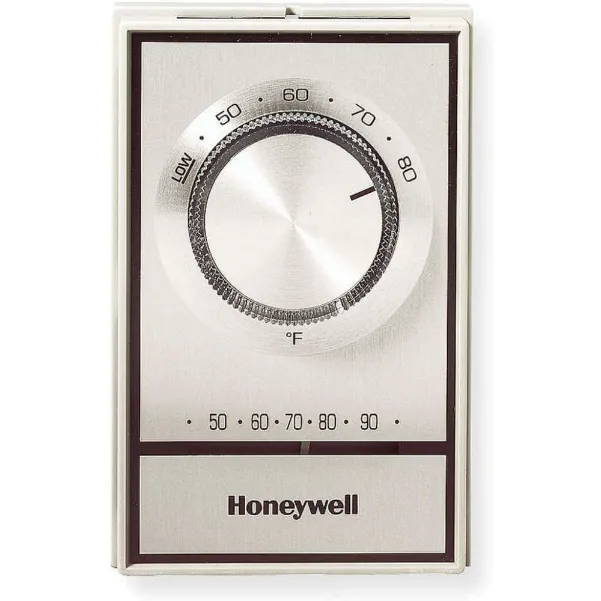

T498A1778 | Heat Only | 1 | SPST | Open On Rise | - | 1 | 120-277V AC | 1 15/16" | €119.43 | |
|
T498B1512 | Heat Only | 1 | DPST | Open On Rise | - | 1 | 120-277V AC | 1 15/16" | €120.64 | |
 |

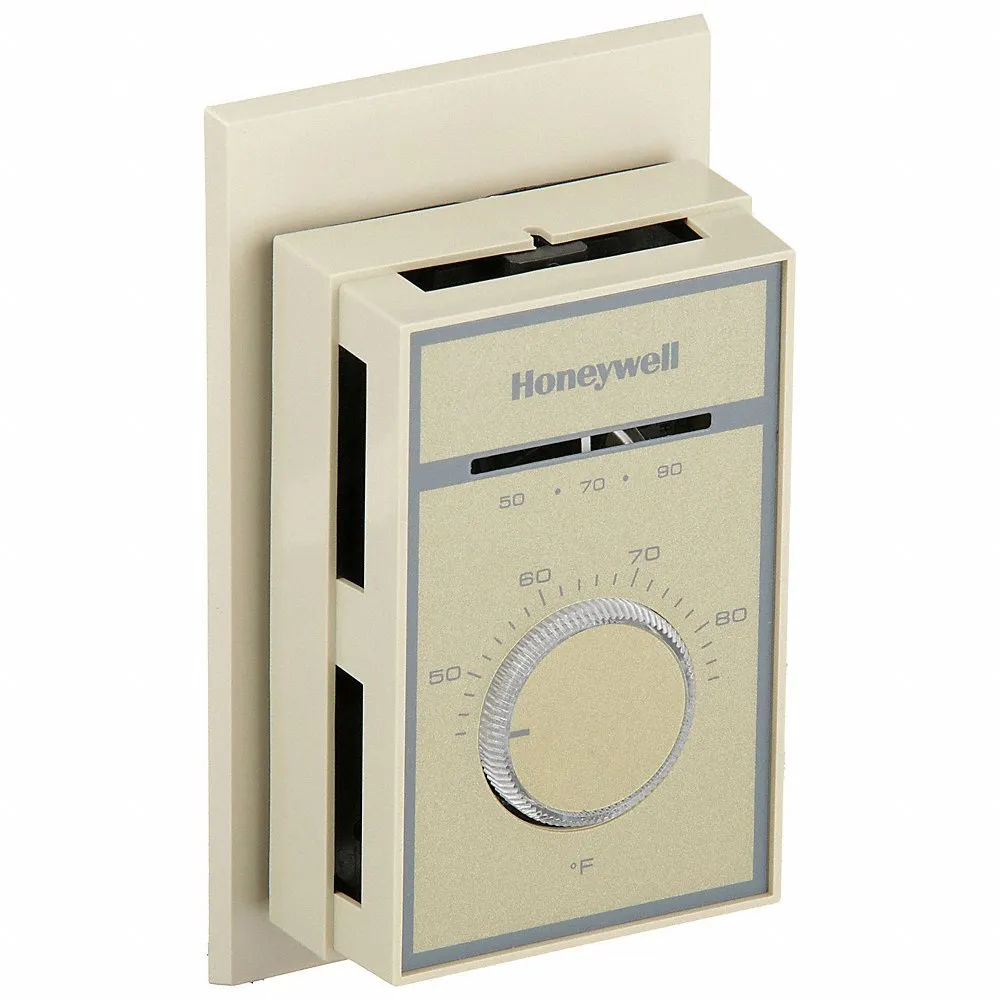

T651A3018/U | Heat And Cool | 1 | SPDT | Open/Close On Rise | 1 | 1 | 120-277V AC | 1 13/16" | €364.28 | |
 |

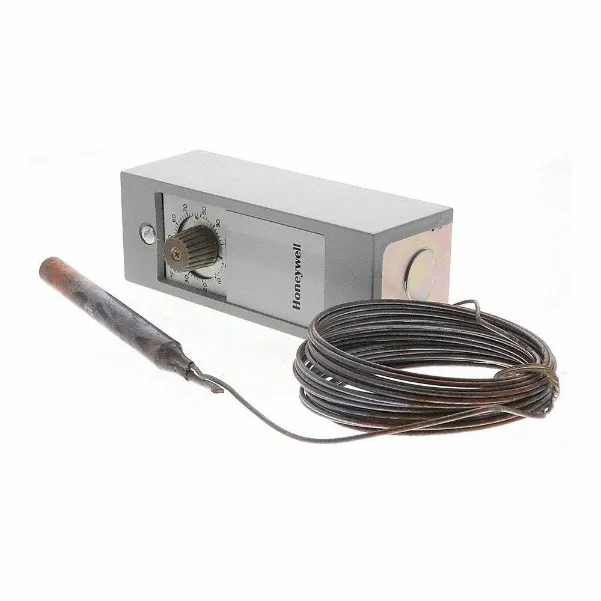

T675A1565 | Heat And Cool | - | SPDT | Open/Close On Rise | - | 1 | 120-240V AC | 2 5/8" | €735.73 | |
 |

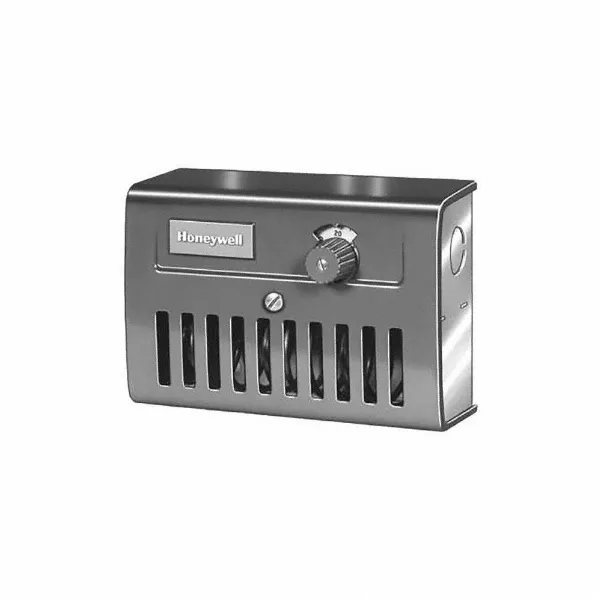

T631C1103/U | Heat Or Cool | 1 | SPDT | Open/Close On Rise | 1 | 1 | 24-277V AC | 2 7/8" | €581.71 |
