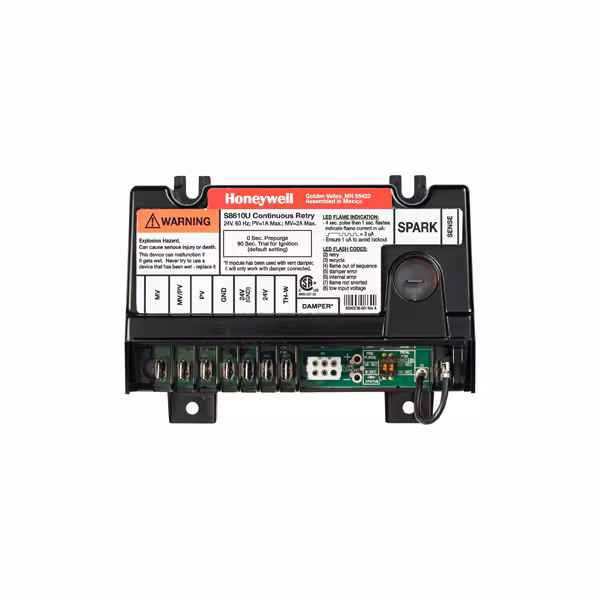

HONEYWELL S8610U3009 Intermittent Pilot Mod 1-2 Rod Control
Item: AB3GFQModel: S8610U3009Cross Ref: 1RZZ2
7 In Stock
Ships within 2 days via
10.00% off
€284.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Intermittent Pilot Module |
| Application | Remote Sensing, Single Rod/Dual Rod |
| Automatic Reset Time | 5 min. |
| Control Voltage | 24V AC |
| Control Volts | 24 |
| Depth | 2 5/8" |
| Flame Sensor Current Output | 1 µA |
| For Fuel Type | LP, Natural Gas |
| Frequency | 60 Hz |
| Gas Type | Liquid Propane, Natural Gas |
| Height | 3.938" |
| Ignition Cycle Time | 90 Sec. (Spark) |
| Includes | Damper Connection With Automatic Vent Damper Plug |
| Lock Out Time | 15 sec. |
| Main Valve Current Output | 24A |
| Maximum Operating Temperature | 165°F |
| Minimum Operating Temperature | -40°F |
| Number Of Retries | 3 |
| Operating Temperature Range | -40°F to +165°F |
| Pre-purge Time | 30 sec. |
| Product Type | Intermittent Pilot Ignitor |
| Replacement For Oem Brand | Camstat, Fenwal, Honewell, HSC, Penn-Johnson, Robertshaw |
| Replacement Type | Universal |
| Thermostat Anticipator Setting | Thermostat Anticipator |
| Type | Intermittent Pilot Ignition |
| Width | 5.437" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 16 |
| Ship width (cm) | 11.18 |
| HS code | 8419909580 |
| Country of Origin | MX |
Product Details:
- Bracket (Universal)
- Electrical Ratings (24 VAC)
- Insulator Mounting Locator (Universal)
- Lockout Time (Sec.) (15 Or 90)
- Operation Description (One Or Two Rod Intermittent Pilot Control With Continuous Retry Trial Time With Configurable Lockout Timing Of 15 Or 90 Seconds And Configurable Prepurge Of 30 seconds or no prepurge)
- Prepurge Time (Up to 30 Sec.)
- Retries (Continuous)
