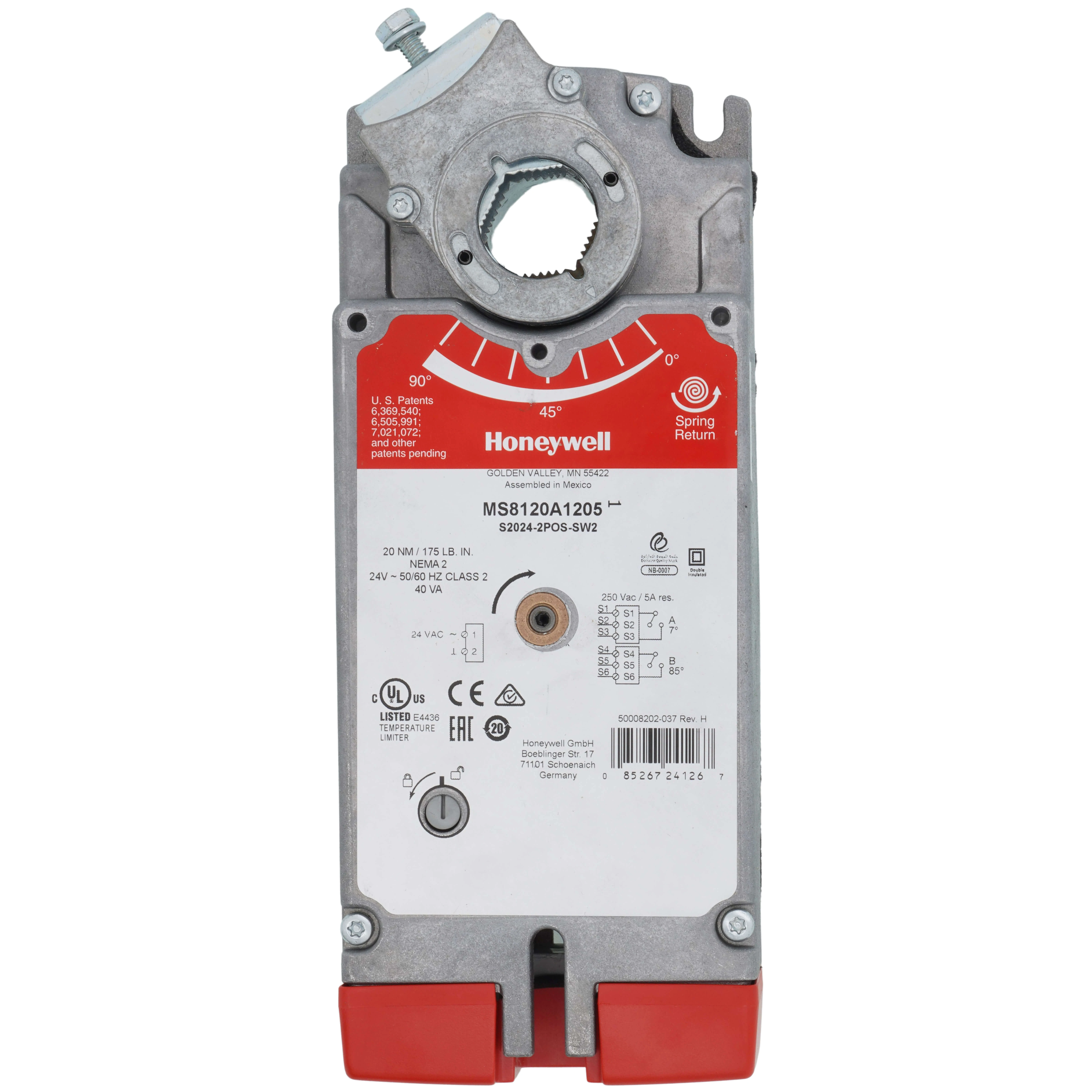

HONEYWELL MS8120A1205 Electric Actuator, -40 Deg. to 140 Deg. F, 175 Inch-Lbs, 24 VAC/DC, SPST
Item: CD3YJWModel: MS8120A1205Cross Ref: 278Y26
7 In Stock
Ships within 2 days via
10.00% off
€949.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Actuator |
| Ambient Temp. Range | -40°F to +140°F |
| Application | Damper and Valve |
| Contact Form | SPST |
| Control Signal | On/Off |
| Depth | 2 15/16" |
| Electrical Connection | Enclosed Screw Terminal Strip |
| Electrical Connection Type | Screw Terminals |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 9 3/4" |
| Includes | 2 Internal Auxiliary Switches |
| Input Voltage | 24V AC |
| Ip Rating | IP54 |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Direct Mount |
| Nema Rating | 2 |
| Number Of Auxiliary Switches | 2 |
| Output Signal | Not Applicable |
| Overall Depth | 3" |
| Overall Height | 9 3/4" |
| Overall Width | 4" |
| Power Consumption | 40 VA |
| Product Type | Actuator |
| Rated Torque | 175 lbs.-in. |
| Return Action | Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | Self Centering Clamping |
| Spring Return | Spring Return |
| Stroke Deg. | 95 +/-3 |
| Stroke Degree | 95° |
| Switch Type | SPST |
| Time To Close | 45 sec. |
| Timing | 20 sec. to 45 sec. |
| Width | 3 15/16" |
Shipping Info:
| Ship weight (kg) | 1.48 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
Product Variants
| Product | Model | Overall Height | Height | Price | |
|---|---|---|---|---|---|
 |
M7284A1004/U | 6 1/2" | 6.437" | €2,862.96 | |
 |
M7284C1000/U | 6 1/2" | 6.437" | €3,138.98 | |
 |
MN7505A2001 | 5 1/4" | 5 9/32" | €473.71 | |
 |
MN6105A1011 | 5 1/4" | - | €344.33 | |
 |
MS8120F1200 | 10 3/4" | 10 11/16" | €1,136.68 | |
 |
MS8105A1130 | 7 1/2" | - | €634.92 | |
|
MN7220A2205 | 8 3/4" | 8 25/32" | €1,029.60 |
