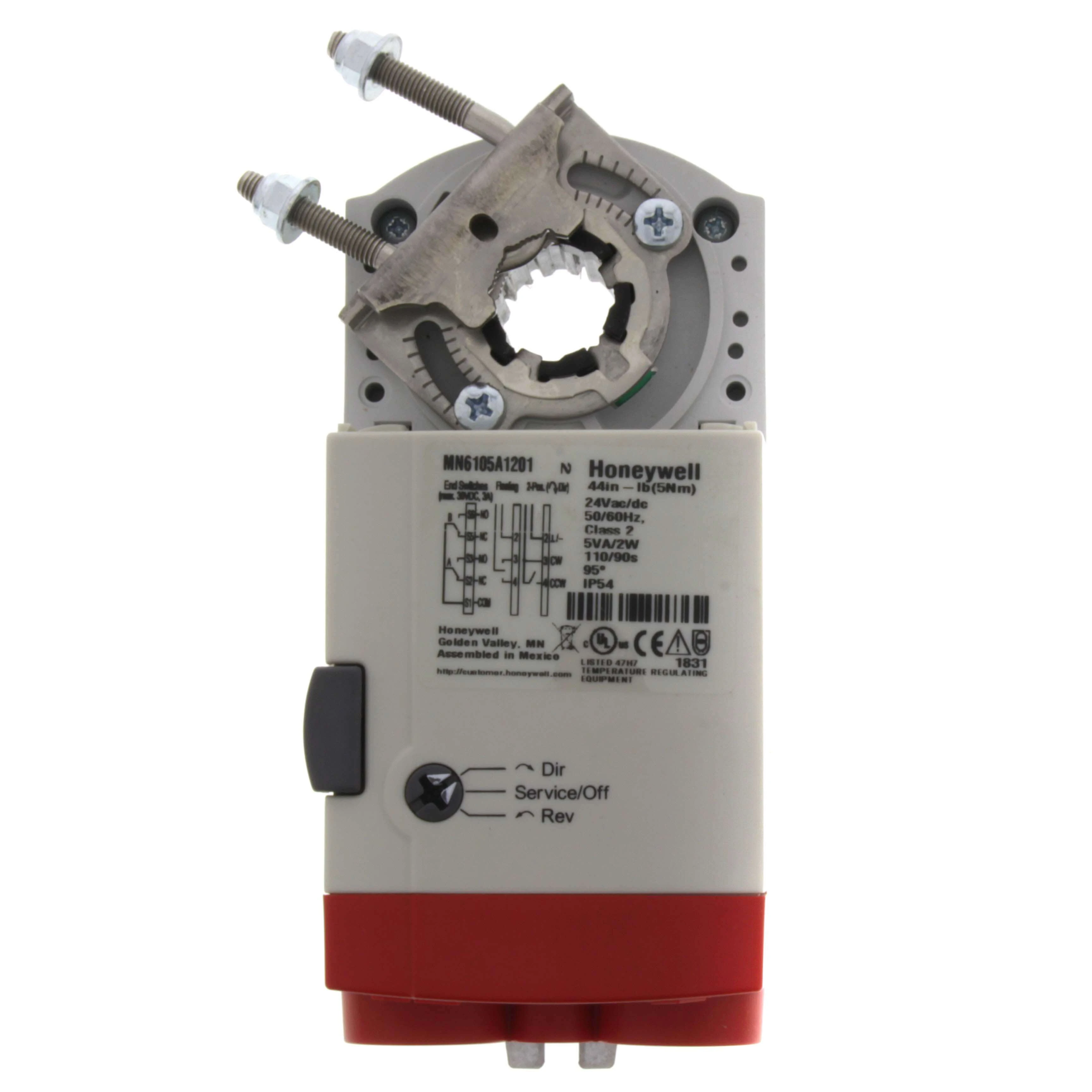

HONEYWELL MN6105A1201 Electric Actuator, Direct Mount, Floating/On/Off, 44 Inch lbs. Torque, 24V AC/DC
Item: CJ2BLPModel: MN6105A1201Cross Ref: 278Y22
7 In Stock
Ships within 2 days via
10.00% off
€458.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Actuator |
| Application | Damper |
| Contact Form | SPDT |
| Control Signal | Floating Point |
| Depth | 2 7/16" |
| Electrical Connection Type | Hardwired |
| For Use With | Air Handlers, Air Units, Louvers, Ventilation Flaps |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 5 9/32" |
| Includes | Cap Fittings, Mounting Hardware, Screws, Shaft Adapter, Water-Tight Strain-Relief Cable Fittings |
| Input Voltage | 24V AC |
| Ip Rating | IP54 |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -5°F |
| Mounting Type | Direct Mount |
| Nema Rating | 2 |
| Number Of Auxiliary Switches | 2 |
| Output Signal | Not Applicable |
| Overall Depth | 2 1/2" |
| Overall Height | 5 1/4" |
| Overall Width | 2 5/8" |
| Power Consumption | 5 VA |
| Product Type | Actuator |
| Rated Torque | 44 lbs.-in. |
| Return Action | Non-Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | U Bolt Clamp |
| Signal Type | Floating Point |
| Stroke Degree | 95° |
| System Application | Air Handlers, Air Units, Dampers, Louvers, Ventilation Flaps |
| Time To Close | 95 sec. |
| Valve Application | Damper |
| Width | 2 19/32" |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.67 |
| Country of Origin | DE |
