HONEYWELL ML6161B2024/U Non Spring Return Damper Actuator, 90 Second, 1.8VA
Item: AC2APCModel: ML6161B2024/UCross Ref: 2HEZ5
7 In Stock
Ships within 2 days via
10.00% off
€302.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Actuator |
| Ambient Temp. Range | +20°F to +125°F |
| Application | Damper |
| Contact Form | SPDT |
| Control Signal | On/Off, Floating Point |
| Depth | 2 1/2" |
| Electrical Connection Type | Screw Terminals |
| Electrical Connections | Screw Terminal |
| Includes | 4074Eny Bag Assembly |
| Input Voltage | 24V AC |
| Maximum Operating Temperature | 125°F |
| Minimum Operating Temperature | 20°F |
| Mounting Type | Direct Mount |
| Nema Rating | 1 |
| Number Of Auxiliary Switches | 2 |
| Overall Depth | 2 1/2" |
| Overall Height | 5 1/2" |
| Overall Width | 3 1/2" |
| Power Consumption | 1.8 VA |
| Product Type | Actuator |
| Rated Torque | 35 lbs.-in. |
| Return Action | Non-Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | 2 Set Screws, Aluminum Hub |
| Signal Type | Floating |
| Spring Return | No |
| Stroke Deg. | 90 |
| Stroke Deg. | 90° |
| Switch Type | SPDT |
| System Application | Dampers, Valves |
| Time To Close | 90 sec. |
| Timing | 90 sec. |
| Torque | 35 lbs.-in. |
| Type | Direct Coupled Nonspring Return |
| Width | 3.38" |
Shipping Info:
| Ship weight (kg) | 0.73 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 10.92 |
| HS code | 8501402040 |
| Country of Origin | MX |
Product Details:
- Honeywell ML6161B2024 non-spring return damper actuator for use with SPDT / floating thermostats and building automation controls
- Superior A/C synchronous submotor for consistent timing and long life
- Manual declutch lever for override protection
- Two position setscrews for easy installation
- Directly mounted on 3/8 or 1/2 inch square or round damper shafts
Product Variants
| Product | Model | Ambient Temp. Range | Spring Return | Depth | Torque | Power Consumption | Mounting Type | Timing | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

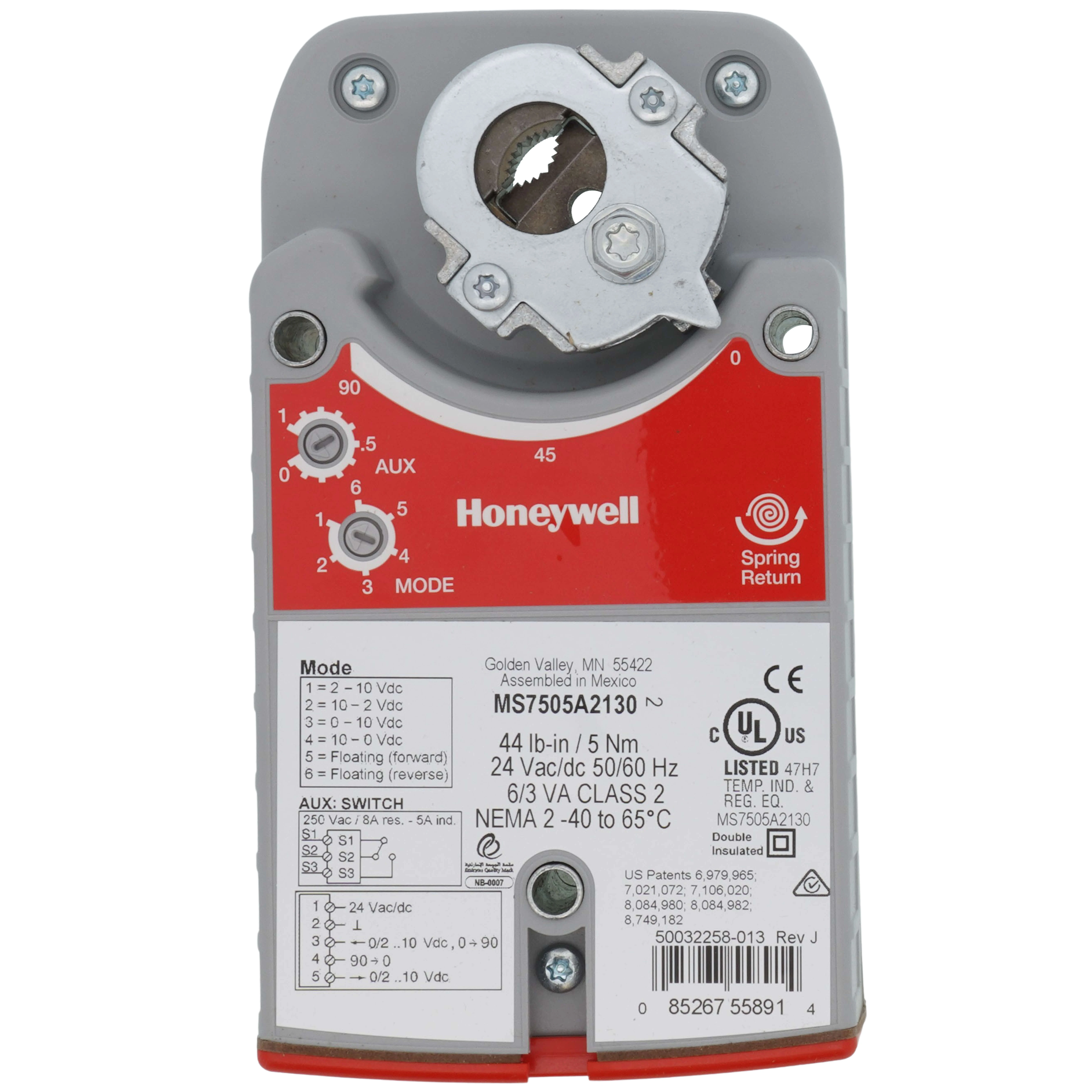

MS7505A2130/U | -22°F to +149°F | Yes | 3.156" | 44 lbs.-in. | 7.5 VA | Direct Mount | 90 sec. | 7 1/2" | €808.20 |
