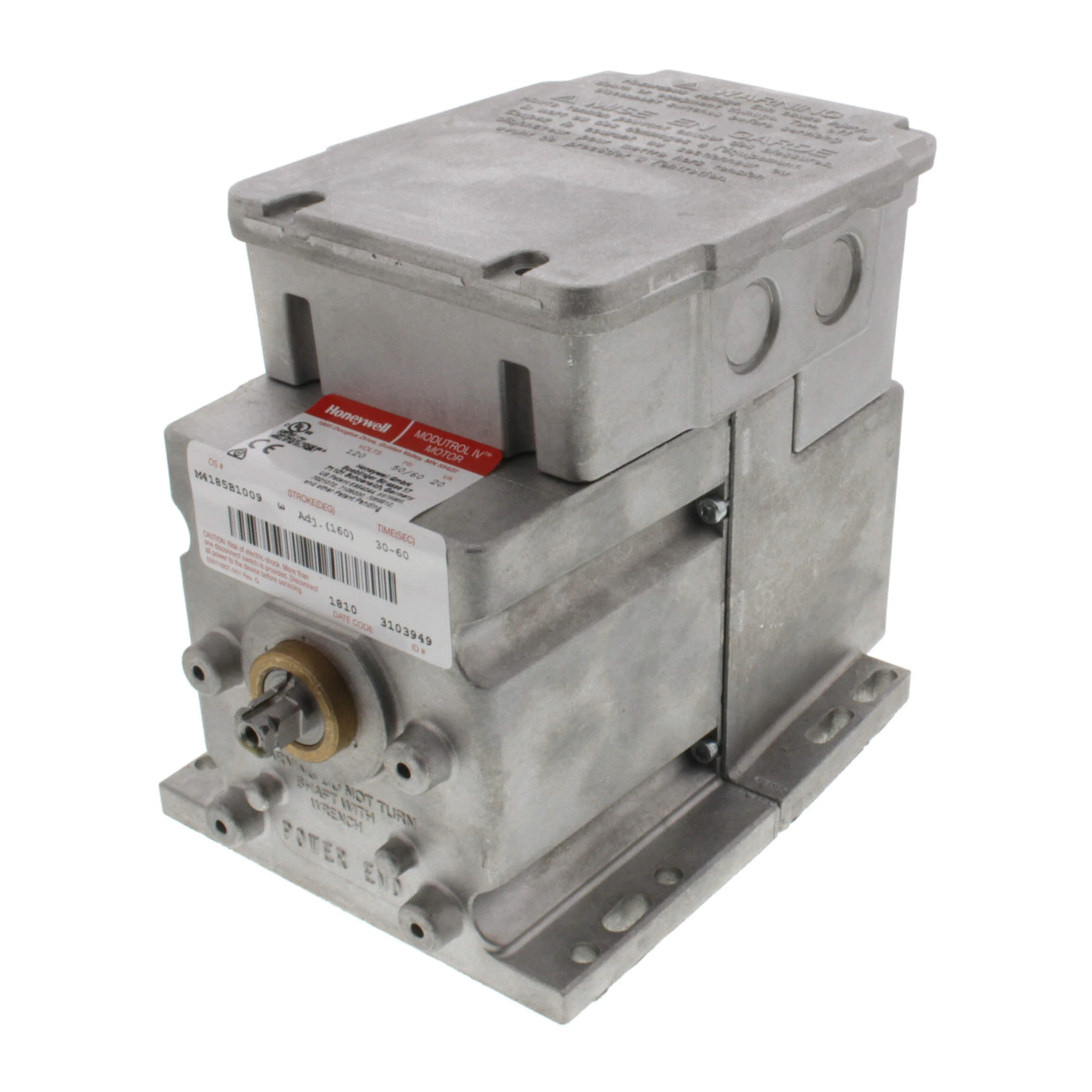

HONEYWELL M4185B1009/U Electric Actuator, Foot Mounted, Spring Return, On/Off, 60 Inch lbs. Torque AC
Item: CJ2BLDModel: M4185B1009/UCross Ref: 33P703
7 In Stock
Ships within 2 days via
10.00% off
€3,048.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Actuator |
| Application | Damper and Valve |
| Contact Form | SPDT |
| Control Signal | On/Off |
| Electrical Connection Type | Hardwired |
| Housing Material | Aluminum |
| Includes | Transformer |
| Input Voltage | 120V AC |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Foot Mount |
| Nema Rating | 3 |
| Number Of Auxiliary Switches | 1 |
| Overall Depth | 8 3/4" |
| Overall Height | 6 1/2" |
| Overall Width | 5 1/2" |
| Power Consumption | 20 VA |
| Power Rating | 25 W |
| Product Type | Rotary Actuator |
| Rated Torque | 60 lbs.-in. |
| Return Action | Spring Return |
| Shaft Rotation | CW |
| Shaft Type | Double Ended |
| Stroke Degree | 160° |
| System Application | Dampers, Valves |
| Time To Close | 60 sec. |
Shipping Info:
| Ship weight (kg) | 4.12 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Height | Price | |
|---|---|---|---|---|---|
 |
M7284A1004/U | 6 1/2" | 6.437" | €2,862.96 | |
 |
M7284C1000/U | 6 1/2" | 6.437" | €3,138.98 | |
 |
MN7505A2001 | 5 1/4" | 5 9/32" | €473.71 | |
 |
MN6105A1011 | 5 1/4" | - | €344.33 | |
 |
MS8120F1200 | 10 3/4" | 10 11/16" | €1,136.68 | |
 |
MS8105A1130 | 7 1/2" | - | €634.92 | |
|
MN7220A2205 | 8 3/4" | 8 25/32" | €1,029.60 |
