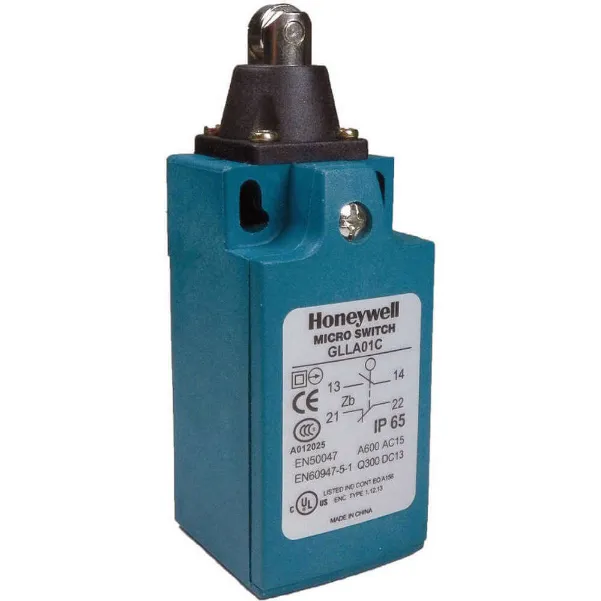

HONEYWELL GLLA01C Global Limit Switch Top Actuator Spdt
Item: AA4MWMModel: GLLA01CCross Ref: 12U919
7 In Stock
Ships within 2 days via
10.00% off
€57.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Global Limit Switch |
| Ac Contact Rating | 10A @ 300V |
| Actuator Length | 1.89" |
| Actuator Length - Limit Switch | 1.89" |
| Actuator Location | Top |
| Actuator Style | Roller Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Actuator Type | Roller plunger |
| Basic Actuator Style | Plunger |
| Basic Actuator Style (limit Switch) | Plunger |
| Body Configuration | Non Plug In |
| Body Depth | 1.22" |
| Body Height | 2.44" |
| Body Height - Limit Switch | 2 11/25" |
| Body Material | Plastic |
| Body Material Type | Non-Metallic |
| Body Style | Miniature |
| Body Style - Limit Switch | Miniature |
| Body Width | 1 1/5" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Connection Size | 12.7 mm |
| Contact Form | 1NO/1NC |
| Current Rating - Nominal | 10A |
| Dc Contact Rating | 10A @ 250V |
| Depth | 3.844" |
| Differential Travel | 0.06" |
| Differential Travel Length | 0.06" |
| Directional Movement | Linear |
| Display Qty | 1 |
| Electrical Connection | Screw Terminals |
| Head Action | Spring Return, Standard |
| Ip Rating | IP66 |
| Limit Switch Style | General Purpose Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole Diameter - New | 0.17" |
| Mounting Hole Horizontal Center To Center Distance | 22 mm |
| Mounting Hole Spacing - Limit Switch | 0.87" |
| Mounting Style | Surface |
| Movement | Linear |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13 |
| Number Of Mounting Holes | 2 |
| Operating Force | 2.22 lbs. |
| Operating Temp. Range | +14°F to +176°F |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | 14°F |
| Operating Torque - Maximum | 2.22 lbs.-in. |
| Over Travel Length | 0.118" |
| Overtravel - New | 3/25" |
| Pre-travel Length | 0.11" |
| Pretravel | 0.11" |
| Roller Material | Plastic |
| Series | GLL Series |
| Stem Thread - Limit Switch | No Stem |
| Width | 1 1/5" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 5.08 |
| HS code | 8536509055 |
| Country of Origin | CN |
Product Variants
| Product | Model | Actuator Style | Basic Actuator Style (limit Switch) | Movement | Roller Material | Contact Form | Ac Contact Rating | Electrical Connection | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

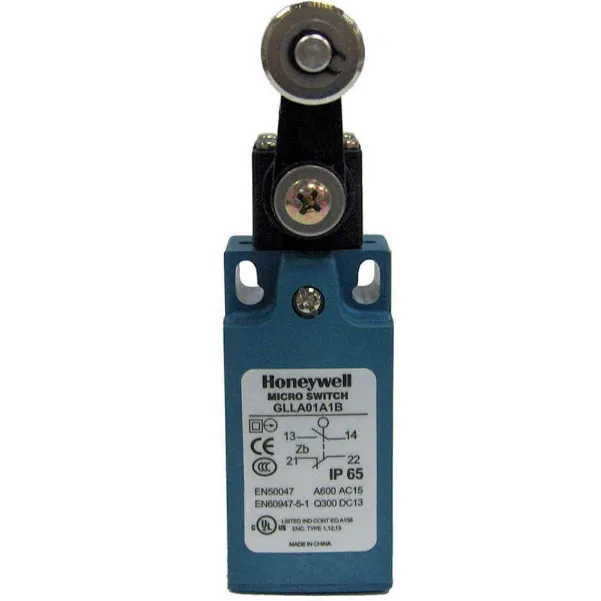

GLLA01A1B | Roller Lever Plunger | Rotary | CW/CCW | Steel | 1NO/1NC | 10A @ 300V | Screw Terminals | IP66 | €53.50 | |
 |

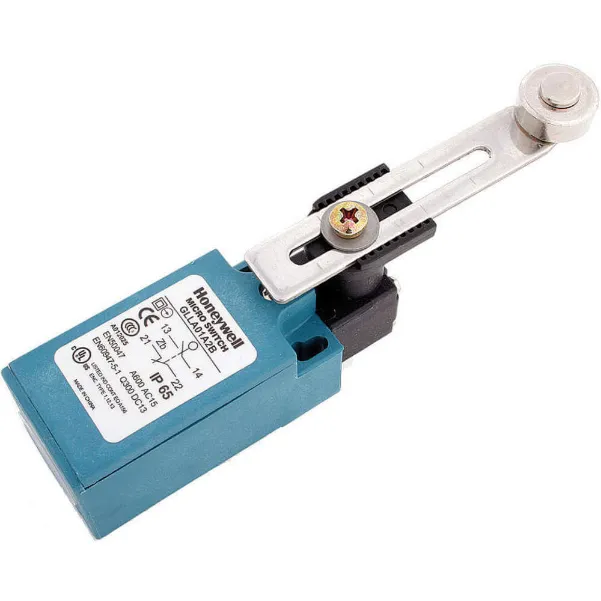

GLLA01A2B | Roller Lever Plunger | Rotary | CCW/CW | - | 1NO/1NC | 10A @ 300V | Screw Terminals | IP66 | €66.91 | |
 |

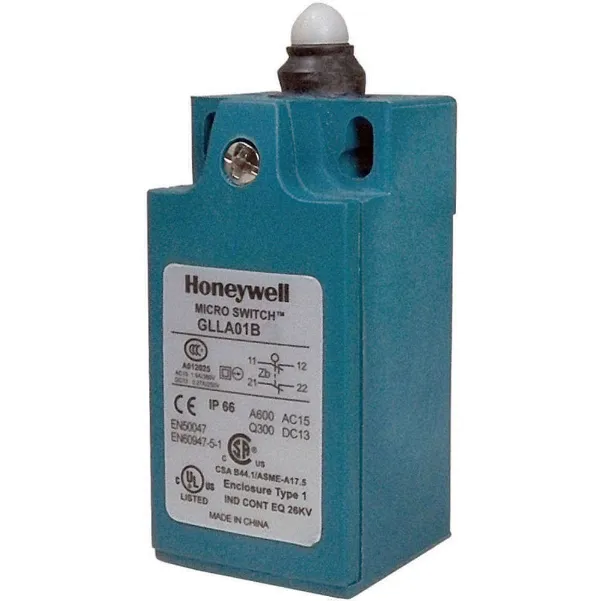

GLLA01B | - | Plunger | - | - | 1NO/1NC | 10A @ 300V | Screw Terminals | IP66 | €49.00 |
