HONEYWELL GLAA20A2A Snap Action Limit Switch, DPDT, Side Rotary w/ Roller
Item: AA4MWVModel: GLAA20A2ACross Ref: 12U926
7 In Stock
Ships within 2 days via
10.00% off
€270.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Global Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Style | Roller Lever Plunger |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Actuator Type | Roller Lever |
| Basic Actuator Style | Rotary |
| Basic Actuator Style (limit Switch) | Rotary |
| Body Configuration | Non Plug In |
| Body Construction | Die Cast Zinc |
| Body Depth | 1.65" |
| Body Height | 3.23" |
| Body Height - Limit Switch | 3.23" |
| Body Material | Metal |
| Body Style | Standard |
| Body Style - Limit Switch | Standard |
| Body Width | 1.65" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form | 2NO/2NC |
| Current Rating - Nominal | 10A |
| Dc Contact Rating | 10A @ 250V |
| Depth | 1.65" |
| Differential Travel | 8° |
| Differential Travel Length | 12° |
| Directional Movement | CCW/CW |
| Electrical Connection | Screw Terminals |
| Head Action | Spring Return, Standard |
| Height | 3.23" |
| Ip Rating | IP67 |
| Limit Switch Style | General Purpose Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole Diameter | 0.21" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Spacing - Limit Switch | 2.36" x 1.18" |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Style | Surface |
| Movement | CW/CCW |
| Nema Enclosure Rating | NEMA 1, NEMA 4, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 4, NEMA 12, NEMA 13 |
| Number Of Mounting Holes | 4 |
| Operating Position | 26° |
| Operating Temp. Range | -13°F to +185°F |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -13°F |
| Operating Torque - Maximum | 2.9 lbs.-in. |
| Operator Configuration | Adjustable |
| Over Travel Length | 59° |
| Overtravel | 59° |
| Pre-travel Length | 26° |
| Pretravel | 26° |
| Roller Dia. | 3/4" |
| Roller Material | Nylon |
| Roller Width | 1/4" |
| Series | GLA Series |
| Stem Thread - Limit Switch | No Stem |
| Width | 1.65" |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.84 |
| HS code | 8536509055 |
| Country of Origin | US |
Product Details:
- Honeywell GLAA20A2A limit switch for use with conveyors, doors, lifts, valves and railroad locomotive equipment
- Features a side rotary actuator with a dual-bearing design for preventing side loading and a removable contact block to facilitate easy wiring
- Equipped with LED pilot lights for trip indication
- Meets EN50041 standards
Product Variants
| Product | Model | Actuator Style | Roller Dia. | Movement | Body Style | Boot Sealed Actuator | Roller Material | Basic Actuator Style (limit Switch) | Roller Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLAA20A2B | Roller Lever Plunger | 3/4" | CW/CCW | Standard | No | Steel | Rotary | - | €302.87 | |
 |
GLAA20C | Roller Plunger | 12.4 mm | Linear | Standard | No | Steel | Plunger | 0.19" | €421.37 | |
 |

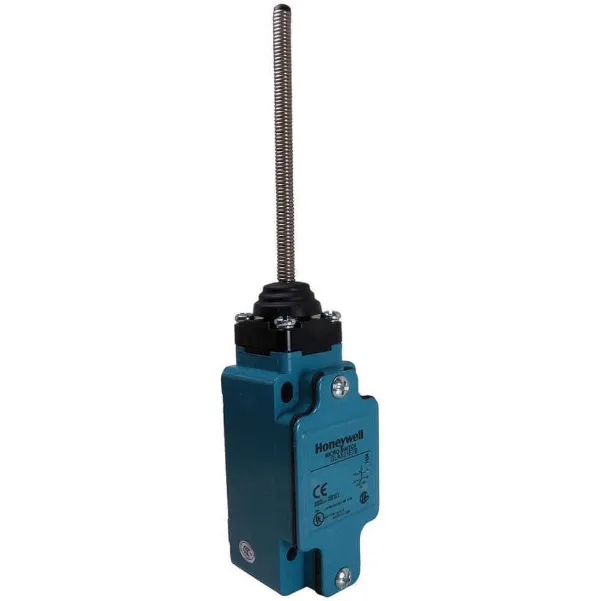

GLAA20K8C | Cat Whisker, Wobble Stick | - | Wobble | X | No Boot Included | - | - | - | €638.12 |
