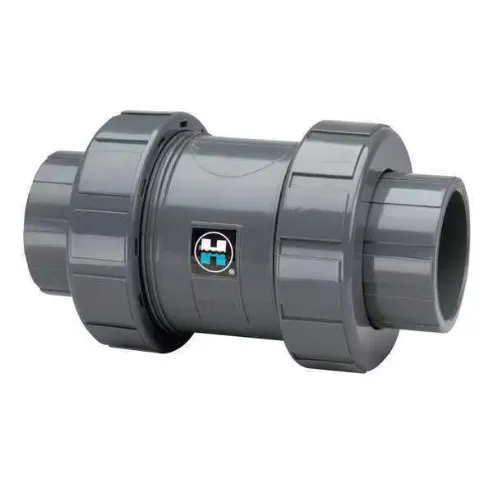

HAYWARD TC20100STE Check Valve Cpvc 1 Inch Skt/fnpt
Item: AE2ZHRModel: TC20100STECross Ref: 5AAW3
7 In Stock
Ships within 2 days via
10.00% off
€158.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| 3-a Compliance | Not Rated |
| Ball Material | CPVC |
| Body Material | CPVC |
| Check Mechanism | Ball |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | True Union Socket, NPT |
| Connection Type - Side 1 | Union Socket, Union NPT |
| Connection Type - Side 2 | Union Socket, Union NPT |
| Cracking Pressure | 3 psi |
| Flow Coefficient (cv) | 11 |
| Flow Rate | 18 GPM |
| For Media | Water |
| Includes Counterweight | No Counterweight |
| Length | 5 1/4" |
| Manufacturer Warranty | 3 yrs. |
| Material | CPVC |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Temp. | 190°F |
| Media Temperature Range | 34°F to 190°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Vertical |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 190°F |
| Operating Temperature - Minimum | 34°F |
| Overall Height | 3" |
| Overall Length | 5.25" |
| Pipe Size | 1" |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Silent Check | Standard |
| Size | 1" |
| Standards | Astm D1784 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | TC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 8.38 |
| HS code | 8481309000 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Type | Body Material | Pipe Size | Max. Temp. | Seat Material | Flow Rate | Cracking Pressure | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

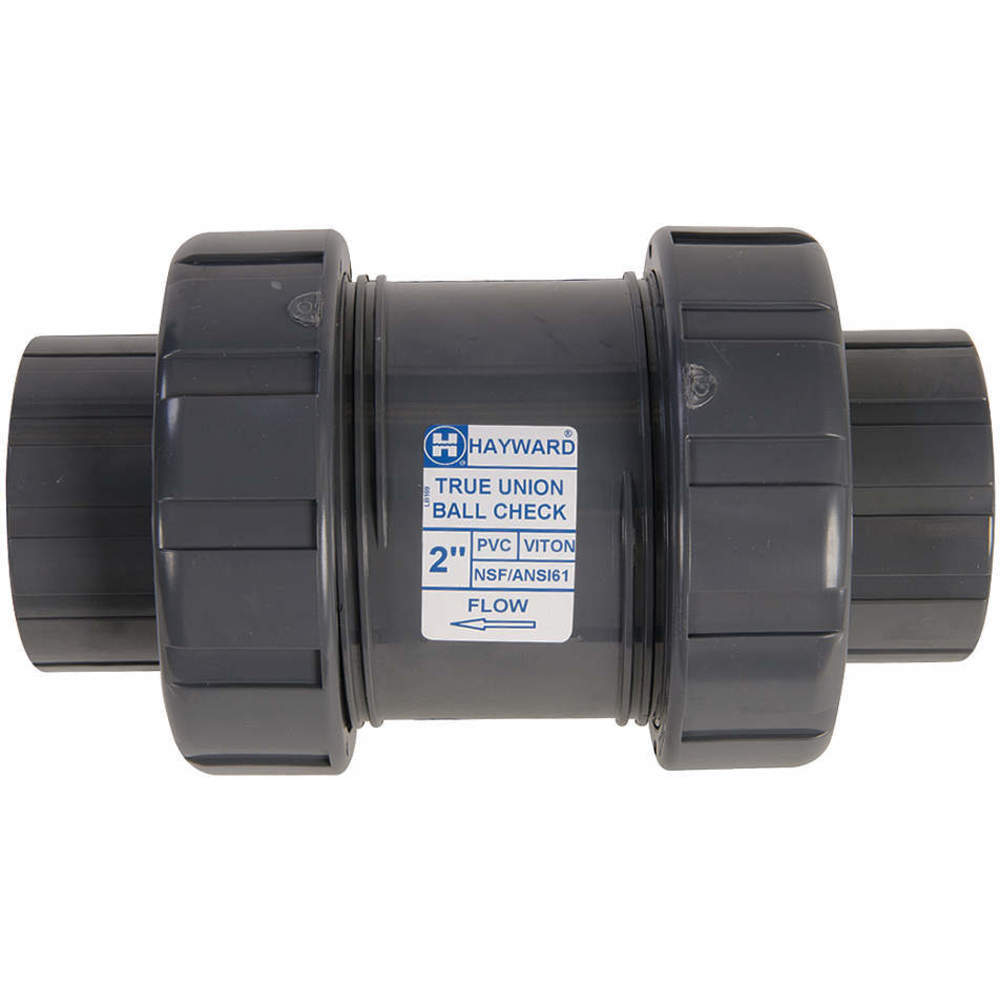

TC10025T | FNPT x FNPT | PVC | 1/4" | 140°F | FKM | 2 GPM | 3 psi | FKM | €77.92 | |
 |
TC10037T | FNPT x FNPT | PVC | 3/8" | 140°F | FKM | 4 GPM | 3 psi | FKM | €70.70 | |
|
TC10050ST | True Union Socket, NPT | PVC | 1/2" | 140°F | FKM | 6 GPM | 3 psi | FKM | €86.92 | |
|
TC10075ST | True Union Socket, NPT | PVC | 3/4" | 140°F | FKM | 10 GPM | 3 psi | FKM | €108.31 | |
|
TC10100ST | True Union Socket, NPT | PVC | 1" | 140°F | FKM | 18 GPM | 3 psi | FKM | €133.99 | |
|
TC10125ST | True Union Socket, NPT | PVC | 1 1/4" | 140°F | FKM | 30 GPM | 3 psi | FKM | €203.87 | |
|
TC10150ST | True Union Socket, NPT | PVC | 1 1/2" | 140°F | FKM | 40 GPM | 3 psi | FKM | €209.49 |
