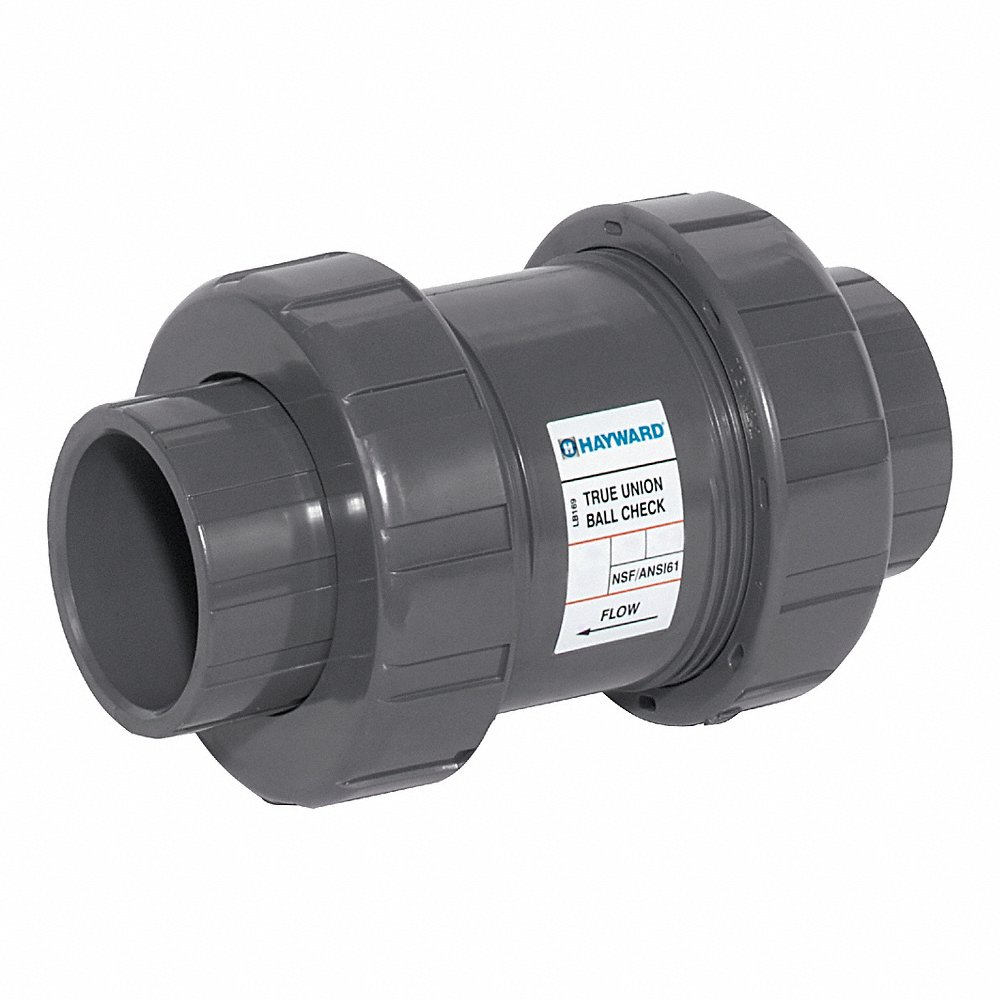

HAYWARD TC Series Check Valve
Filter
A
B
C
D
E
F
G
H| Style | Model | Connection Type | Body Material | Pipe Size | Max. Temp. | Seat Material | Flow Rate | Cracking Pressure | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TC2400F | Flanged | - | - | 190°F | Viton | 275 GPM | 3 psi | Viton | €3,032.94 | |
| A | TC2600F | Flange x Flange | CPVC | 6" | 190°F | FKM | 275 GPM | 3 psi | FKM | €4,092.63 | |
| A | TC2400FE | Flange x Flange | CPVC | 4" | 190°F | EPDM | 275 GPM | 3 psi | EPDM | €2,570.35 | |
| A | TC20200F | Flange x Flange | CPVC | 2" | 190°F | FKM | 70 GPM | 3 psi | FKM | €912.49 | |
| B | TC1300FE | Flange x Flange | PVC | 3" | 140°F | EPDM | 150 GPM | 3 psi | EPDM | €1,021.36 | |
| C | TC1600FE | Flange x Flange | PVC | 6" | 140°F | EPDM | 275 GPM | 3 psi | EPDM | €2,115.65 | |
| A | TC2300FE | Flange x Flange | CPVC | 3" | 190°F | EPDM | 150 GPM | 3 psi | EPDM | €1,434.19 | |
| A | TC2300SE | Flange x Flange | CPVC | 3" | 190°F | EPDM | 150 GPM | 3 psi | EPDM | €978.11 | |
| A | TC1400FE | Flange x Flange | PVC | 4" | 140°F | EPDM | 275 GPM | 3 psi | EPDM | €1,598.55 | |
| A | TC2600FE | Flange x Flange | CPVC | 6" | 190°F | EPDM | 275 GPM | 3 psi | EPDM | €3,645.33 | |
| A | TC20100F | Flange x Flange | CPVC | 1" | 190°F | FKM | 18 GPM | 3 psi | FKM | €368.11 | |
| C | TC1600F | Flange x Flange | PVC | 6" | 140°F | FKM | 275 GPM | 3 psi | FKM | €2,190.87 | |
| A | TC1300F | Flange x Flange | PVC | 3" | 140°F | FKM | 150 GPM | 3 psi | FKM | €1,065.44 | |
| C | TC1400F | Flange x Flange | PVC | 4" | 140°F | FKM | 275 GPM | 3 psi | FKM | €1,642.86 | |
| A | TC2300F | Flange x Flange | CPVC | 3" | 190°F | FKM | 150 GPM | 3 psi | FKM | €1,708.14 | |
| D | TC1250T | FNPT | - | - | 140°F | Viton | 100 GPM | 3 psi | Viton | €611.12 | |
| E | TC30100T | FNPT | - | - | 150°F | Viton | 18 GPM | 3 psi | Viton | €270.82 | |
| A | TC2400TE | FNPT | - | - | 190°F | EPDM | 275 GPM | 3 psi | EPDM | €1,748.71 | |
| E | TC30200T | FNPT x FNPT | Polypropylene | 2" | 150°F | FKM | 70 GPM | 3 psi | FKM | €618.03 | |
| A | TC2250TE | FNPT x FNPT | CPVC | 2 1/2" | 190°F | EPDM | 100 GPM | 3 psi | EPDM | €912.84 | |
| A | TC2300T | FNPT x FNPT | CPVC | 3" | 190°F | FKM | 150 GPM | 3 psi | FKM | €1,105.39 | |
| F | TC30050T | FNPT x FNPT | Polypropylene | 1/2" | 150°F | FKM | 6 GPM | 3 psi | FKM | €199.43 | |
| D | TC10025T | FNPT x FNPT | PVC | 1/4" | 140°F | FKM | 2 GPM | 3 psi | FKM | €77.92 | |
| G | TC10037T | FNPT x FNPT | PVC | 3/8" | 140°F | FKM | 4 GPM | 3 psi | FKM | €70.70 | |
| A | TC2300TE | FNPT x FNPT | CPVC | 3" | 190°F | EPDM | 150 GPM | 3 psi | EPDM | €911.76 | |
| A | TC1400TE | FNPT x FNPT | PVC | 4" | 140°F | EPDM | 275 GPM | 3 psi | EPDM | €986.23 | |
| A | TC2250T | FNPT x FNPT | CPVC | 2 1/2" | 190°F | FKM | 100 GPM | 3 psi | FKM | €1,071.32 | |
| A | TC1250TE | FNPT x FNPT | PVC | 2 1/2" | 140°F | EPDM | 100 GPM | 3 psi | EPDM | €562.48 | |
| E | TC30075T | FNPT x FNPT | Polypropylene | 3/4" | 150°F | FKM | 10 GPM | 3 psi | FKM | €227.15 | |
| A | TC1400T | FNPT x FNPT | PVC | 4" | 140°F | FKM | 275 GPM | 3 psi | FKM | €1,039.36 | |
| A | TC2400T | FNPT x FNPT | CPVC | 4" | 190°F | FKM | 275 GPM | 3 psi | FKM | €1,924.35 | |
| A | TC1300TE | FNPT x FNPT | PVC | 3" | 140°F | EPDM | 150 GPM | 3 psi | EPDM | €577.37 | |
| A | TC1300T | FNPT x FNPT | PVC | 3" | 140°F | FKM | 150 GPM | 3 psi | FKM | €622.87 | |
| E | TC30150T | FNPT x FNPT | Polypropylene | 1 1/2" | 150°F | FKM | 40 GPM | 3 psi | - | €465.43 | |
| A | TC1400SE | SKT | - | - | 140°F | EPDM | 275 GPM | - | EPDM | €986.23 | |
| A | TC20150ST | SKT x FNPT | CPVC | 1 1/2" | 190°F | FKM | 40 GPM | 3 psi | FKM | €306.08 | |
| A | TC1300S | Socket x Socket | PVC | 3" | 140°F | FKM | 150 GPM | 3 psi | FKM | €663.44 | |
| A | TC1250S | Socket x Socket | PVC | 2 1/2" | 140°F | FKM | 100 GPM | 3 psi | FKM | €613.28 | |
| A | TC2250SE | Socket x Socket | CPVC | 2 1/2" | 190°F | EPDM | 100 GPM | 3 psi | EPDM | €912.84 | |
| A | TC2400SE | Socket x Socket | CPVC | 4" | 190°F | EPDM | 275 GPM | 3 psi | EPDM | €1,748.71 | |
| A | TC2300S | Socket x Socket | CPVC | 3" | 190°F | FKM | 150 GPM | 3 psi | FKM | €1,105.39 | |
| A | TC1400S | Socket x Socket | PVC | 4" | 140°F | FKM | 275 GPM | 3 psi | FKM | €1,039.36 | |
| A | TC1300SE | Socket x Socket | PVC | 3" | 140°F | EPDM | 150 GPM | 3 psi | EPDM | €609.41 | |
| A | TC1250SE | Socket x Socket | PVC | 2 1/2" | 140°F | EPDM | 100 GPM | 3 psi | EPDM | €568.60 | |
| A | TC2250S | Socket x Socket | CPVC | 2 1/2" | 190°F | FKM | 100 GPM | 3 psi | FKM | €1,071.32 | |
| A | TC2400S | Socket x Socket | CPVC | 4" | 190°F | FKM | 275 GPM | 3 psi | FKM | €1,924.35 | |
| H | TC10200STE | True Union Socket, NPT | PVC | 2" | 140°F | EPDM | 70 GPM | 3 psi | EPDM | €251.57 | |
| A | TC10125ST | True Union Socket, NPT | PVC | 1 1/4" | 140°F | FKM | 30 GPM | 3 psi | FKM | €203.87 | |
| A | TC20100ST | True Union Socket, NPT | CPVC | 1" | 190°F | FKM | 18 GPM | 3 psi | FKM | €190.22 | |
| A | TC10050STE | True Union Socket, NPT | PVC | 1/2" | 140°F | EPDM | 6 GPM | 3 psi | EPDM | €82.08 | |
| A | TC20200STE | True Union Socket, NPT | CPVC | 2" | 190°F | EPDM | 70 GPM | 3 psi | EPDM | €377.48 | |
| A | TC10075STE | True Union Socket, NPT | PVC | 3/4" | 140°F | EPDM | 10 GPM | 3 psi | EPDM | €83.81 | |
| A | TC20100STE | True Union Socket, NPT | CPVC | 1" | 190°F | EPDM | 18 GPM | 3 psi | EPDM | €176.05 | |
| A | TC10100ST | True Union Socket, NPT | PVC | 1" | 140°F | FKM | 18 GPM | 3 psi | FKM | €133.99 | |
| A | TC20050ST | True Union Socket, NPT | CPVC | 1/2" | 190°F | FKM | 6 GPM | 3 psi | FKM | €129.43 | |
| A | TC10100STE | True Union Socket, NPT | PVC | 1" | 140°F | EPDM | 18 GPM | 3 psi | EPDM | €119.48 | |
| A | TC20050STE | True Union Socket, NPT | CPVC | 1/2" | 190°F | EPDM | 6 GPM | 3 psi | EPDM | €119.48 | |
| A | TC20125ST | True Union Socket, NPT | CPVC | 1 1/4" | 190°F | FKM | 30 GPM | 3 psi | FKM | €318.28 | |
| A | TC10150ST | True Union Socket, NPT | PVC | 1 1/2" | 140°F | FKM | 40 GPM | 3 psi | FKM | €209.49 | |
| A | TC20200ST | True Union Socket, NPT | CPVC | 2" | 190°F | FKM | 70 GPM | 3 psi | FKM | €417.98 | |
| A | TC20125STE | True Union Socket, NPT | CPVC | 1 1/4" | 190°F | EPDM | 30 GPM | 3 psi | EPDM | €298.68 |
