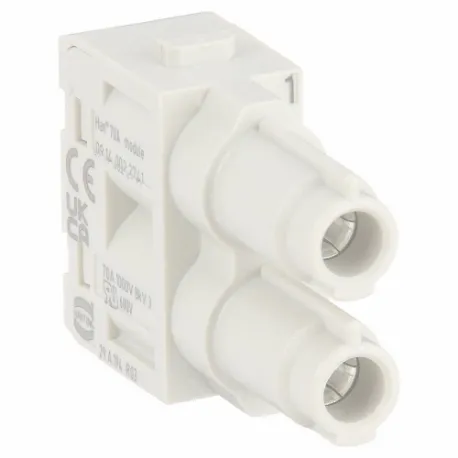

HARTING 09140022741 Industrial Rectangular Connector Insert, Screw, Female, 70 A Current Rating
Item: CR3TLKModel: 09140022741Cross Ref: 793X29
7 In Stock
Ships within 2 days via
10.00% off
€56.45 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert |
| Application | Industrial Connectors |
| Connection Type | Screw |
| Connector Gender | Female |
| Current Rating | 70A |
| Includes Poles | Yes |
| Insert Color | Gray |
| Insert Material | Polycarbonate |
| Max. Operating Temp. | 125°C |
| Maximum Contact Resistance | 0.5 M ohms |
| Min. Operating Temp. | -40°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Mating Cycles | 500 |
| Number Of Poles | 2 |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Series | HAN-MODULAR Series |
| Voltage Rating | 1000V |
| Wire Size | 6 sq. mm to 16 sq. mm |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Operating Temp. | Current Rating | Number Of Contacts | Size Designation | Connector Gender | Voltage Rating | Wire Size | Includes Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09140013011 | 85°C | - | - | - | Male | - | - | - | - | RFQ
|
 |
09140014623 | - | - | - | - | Male | - | - | No | €13.28 | |
 |
09140013111 | 85°C | - | - | - | Female | - | - | No | €16.25 | |
 |
09140010301 | 125°C | - | - | Modular Compact | - | - | - | - | - | RFQ
|
 |
09140023151 | 125°C | 100A | - | - | Female | 1000/600V | 10 sq. mm to 35 sq. mm | No | - | RFQ
|
 |
09140083101 | 125°C | 16A | 8 | - | Female | 400/600V | 0.14 sq. mm to 4 sq. mm | No | - | RFQ
|
 |
09140013101 | 125°C | 200A | - | - | Female | 600/800V | 25 sq. mm to 70 sq. mm | No | - | RFQ
|
