HARRINGTON NERP020LD-FG-20 Electric Chain Hoist with Trolley 20 feet 2.4HP
Get it by Tuesday, Aug 25
€19,408.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Chain Hoist |
| Amps @ Low Voltage | 2.4A |
| Amps Draw | 2.4A |
| Beam Height | 4.344" |
| Beam Height | 4-11/32" |
| Body Depth | 25" |
| Body Finish | Epoxy Painted |
| Body Length | 27 7/8" |
| Body Material | Aluminum |
| Body Width | 11 11/16" |
| Brake Type | DC Current |
| Capacity | 4000 lbs. |
| Chain Finish | Nickel Plated |
| Chain Grade | Grade 80 |
| Chain Material | Alloy Steel |
| Classification | H4 |
| Clutch | Friction |
| Clutch Type | Friction |
| Color | White |
| Configuration | Push Trolley |
| Control | Push Button Pendant |
| Control Cord | 16 ft. |
| Controller Cord Length | 16 ft. |
| Duty Classification | H4 - Heavy Duty |
| Features | Fda Approved Food Safe Oil, Grease And Lubricants |
| Finish | Epoxy Paint |
| Fits Brand | Harrington Hoists Inc |
| Fixed Lift Speed | Not Applicable |
| For Beam Flange Width | 3 7/32" to 6 1/32" |
| For Max. Beam Flange Width | 6 1/32" |
| For Max. Beam Height | Not Applicable |
| For Min. Beam Flange Width | 3 7/32" |
| For Min. Beam Height | 5" |
| For Outdoor Use | Yes |
| Head Room | 25" |
| Headroom Size | 25" |
| Housing Depth | 25" |
| Housing Length | 27 7/8" |
| Housing Width | 11.688" |
| Included Brake | Brake Included |
| Included Clutch | Clutch Included |
| Included Components | Chain Container, Pendant, Quick Disconnect Plugs On Pendant, Safety Latch Hook |
| Lift | 20 ft. |
| Lift Length | 20 ft. |
| Lift Speed | 2.5-14 FPM |
| Lifting Capacity | 4000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 25" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 4000 lbs. |
| Lubrication | Food Grade Oil |
| Max. Amps | 9.1A |
| Max. Lift Speed | 14 FPM |
| Max. Pulling Capacity | Not Applicable |
| Min. Between Hooks | 25" |
| Min. Lift Speed | 2.5 FPM |
| Min. Radius Curve | 59 3/32" |
| Min. Retracted Length | 25" |
| Motor Hp | 2 3/8 hp |
| Mounting Type | Push Trolley |
| No. Of Load Chains | 1 |
| No. Of Reeves | 1 |
| No. Of Speed | 2 |
| Operating Voltage | 208-230/460V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | IP65 |
| Phase | 3 |
| Reeving | 1 |
| Resistance Properties | Chip Resistant, Corrosion Resistant, Rust Resistant |
| Speed Programmability | Programmable By VFD |
| Starts Per Hour | 120, 240 |
| Thermal Protection | Included |
| Tonnage-lifting Capacity | 2 ton. |
| Trolley Wheel Dia. | 3 23/64" |
| Trolley Wheel Material | Steel |
| Wheel Material | Stainless Steel |
| Wheel Tread Dia. | 3.359" |
| Wheel Tread Dia. | 3-23/64" |
Shipping Info:
| Ship weight (kg) | 93.15 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 53.34 |
| HS code | 8425110000 |
Product Variants
| Product | Model | Motor Hp | Lifting Capacity | Lift Speed | Body Finish | Lifting Hook Opening Width | Body Depth | Body Width | Headroom Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

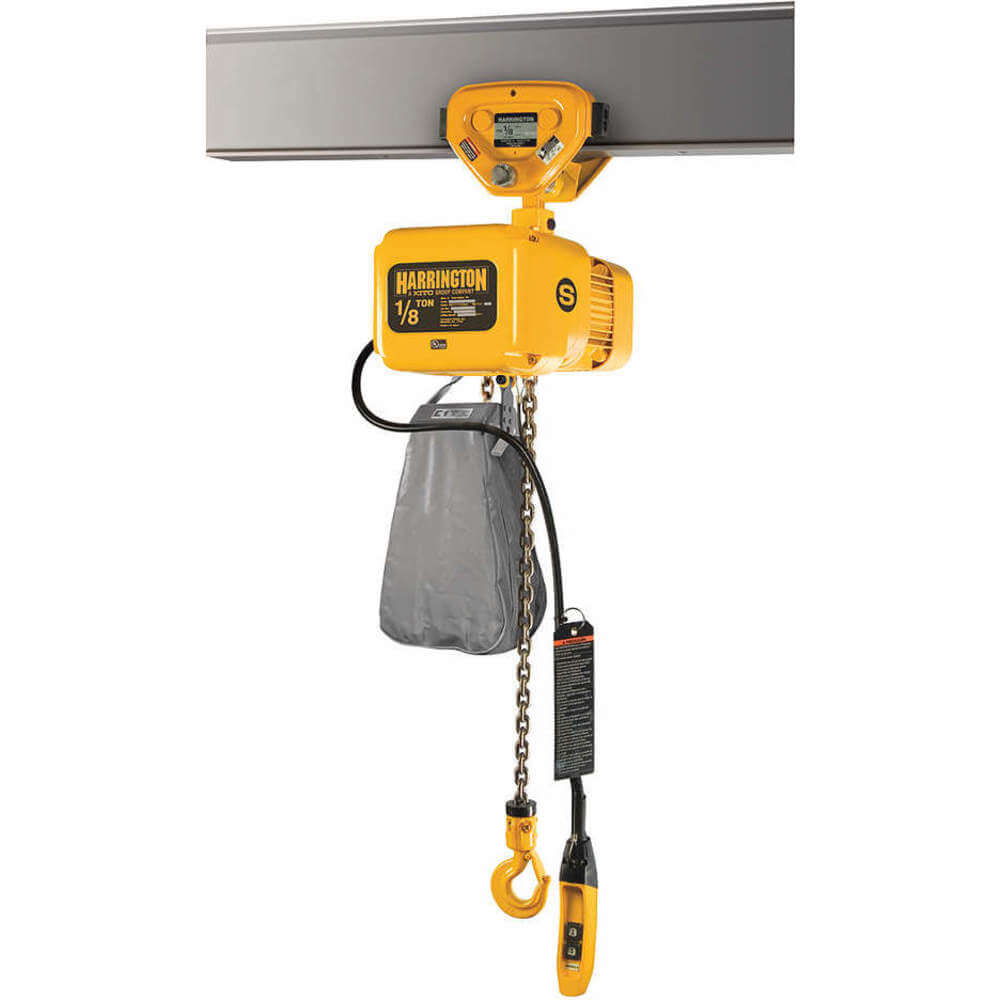

NERP001H-20 | 3/4 hp | 250 lbs. | 55 FPM | Enamel | 1 3/32" | 6 5/8" | 12 5/8" | 15 19/32" | €4,497.85 | |
 |
NERP001HD-20 / 460v | 3/4 hp | 250 lbs. | 9-55 FPM | Enamel | 1 3/32" | 6 5/8" | 12 5/8" | 15 19/32" | €5,182.00 | |
|
NERP001HD-20 / 230v | 3/4 hp | 250 lbs. | 9-55 FPM | Enamel | 1 3/32" | 6 5/8" | 12 5/8" | 15 5/8" | €5,110.63 | |
 |
NERP003H-20 | 1 1/4 hp | 500 lbs. | 53 FPM | Enamel | 1 3/32" | 7 1/2" | 13 11/16" | 16 5/16" | €5,043.42 | |
 |
NERP003HD-20 / 460v | 1 1/4 hp | 500 lbs. | 9-53 FPM | Enamel | 1 3/32" | 7 1/2" | 13 11/16" | 16 5/16" | €5,874.33 | |
|
NERP003HD-20 / 230v | 1 1/4 hp | 500 lbs. | 9-53 FPM | Enamel | 1 3/32" | 7 1/2" | 13 11/16" | 16 5/16" | €5,874.33 | |
|
NERP003S-20 | 3/4 hp | 500 lbs. | 36 FPM | Enamel | 1 3/32" | 6 5/8" | 13 11/16" | 15 19/32" | €3,883.47 |
