HARRINGTON NERM100SD-L-10 / 460v Electric Chain Hoist 20000 Lb. 10 Feet
Get it by Friday, Aug 21
€42,146.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Chain Hoist |
| Amps Draw | 8.3A |
| Beam Height | 6 7/8" |
| Beam Height | 6-7/8" |
| Body Depth | 10 1/2" |
| Body Finish | Enamel |
| Body Length | 28 7/8" |
| Body Material | Aluminum |
| Body Width | 13 1/4" |
| Brake Type | DC Current |
| Capacity | 20000 lbs. |
| Chain Finish | Nickel Plated |
| Chain Grade | Grade 80 |
| Chain Material | Alloy Steel |
| Classification | H4 |
| Clutch | Friction Clutch |
| Clutch Type | Friction Clutch |
| Color | Yellow |
| Configuration | Motorized Trolley |
| Control | Push Button Pendant |
| Control Cord | 6 ft. |
| Controller Cord Length | 6 ft. |
| Duty Classification | H4 - Heavy Duty |
| Features | Dual Speed Trolley Vfd, Rubber Bumpers, Side Guide Rollers |
| Finish | Electrostatic Enamel |
| Fixed Lift Speed | Not Applicable |
| For Beam Flange Width | 5 1/2" to 8 21/32" |
| For Max. Beam Flange Width | 8 21/32" |
| For Max. Beam Height | Not Applicable |
| For Min. Beam Flange Width | 5 1/2" |
| For Min. Beam Height | 6 29/32" |
| For Outdoor Use | Yes |
| Head Room | 46 1/2" |
| Headroom Size | 46 1/2" |
| Hoist Ip Rating | IP55 |
| Housing Depth | 10 1/2" |
| Housing Length | 28 7/8" |
| Housing Width | 13 1/4" |
| Included | Chain Container, Guardian Smart Brake, Motorized Trolley |
| Included Brake | Brake Included |
| Included Clutch | Clutch Included |
| Included Components | Chain Container, Pendant, Quick Disconnect Plugs On Pendant, Rubber Bumpers, Safety Latch Hook |
| Lift | 10 ft. |
| Lift Length | 10 ft. |
| Lift Speed | 3.5-11 FPM |
| Lifting Capacity | 20000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 3 3/16" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 20000 lbs. |
| Lubrication | Oil Bath |
| Material | Die Cast Aluminum |
| Max. Amps | 17.3A |
| Max. Lift Speed | 11 FPM |
| Max. Pulling Capacity | Not Applicable |
| Min. Between Hooks | 46 1/2" |
| Min. Lift Speed | 3.5 FPM |
| Min. Radius Curve | 98 13/32" |
| Min. Retracted Length | 46 1/2" |
| Motor Hp | 4 3/4 hp |
| Mounting Type | Motorized Trolley |
| No. Of Load Chains | 1 |
| No. Of Reeves | 4 |
| No. Of Speed | 2 |
| Operating Voltage | 460V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | IP65 |
| Phase | 3 |
| Reeving | 4 |
| Resistance Properties | Corrosion Resistant |
| Speed Programmability | Programmable By VFD |
| Thermal Protection | Included |
| Tonnage-lifting Capacity | 10 ton. |
| Trolley Ip Rating | IP55 |
| Trolley Speed | 40 FPM |
| Trolley Wheel Dia. | 6 9/10" , 6.9" |
| Trolley Wheel Material | Steel |
Shipping Info:
| Ship weight (kg) | 410.4 |
| Ship height (cm) | 139.7 |
| Ship length (cm) | 104.14 |
| Ship width (cm) | 152.4 |
| HS code | 8425110000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Lifting Capacity | Motor Hp | Lift Speed | Lifting Hook Opening Width | Speed Programmability | Operating Voltage | Body Depth | Body Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NERM100L-L-10 | 20000 lbs. | 4 3/4 hp | 5.5 FPM | 3 3/16" | Non Programmable | 208-230/460V AC | 10 1/2" | 13 1/4" | €31,308.81 | |
|
NERM100LD-L-10 / 460v | 20000 lbs. | 4 3/4 hp | 2-5.5 FPM | 3 3/16" | Programmable By VFD | 460V AC | 10 1/2" | 13 1/4" | €34,069.67 | |
|
NERM100LD-L-10 / 230v | 20000 lbs. | 4 3/4 hp | 2-5.5 FPM | 3 3/16" | Programmable By VFD | 230V AC | 10 1/2" | 13 1/4" | €34,069.67 | |
|
NERM100S-L-10 | 20000 lbs. | 4 3/4 hp | 11 FPM | 3 3/16" | Non Programmable | 208-230/460V AC | 10 1/2" | 13 1/4" | €37,155.61 | |
|
NERM100SD-L-10 / 230v | 20000 lbs. | 4 3/4 hp | 3.5-11 FPM | 3 3/16" | Programmable By VFD | 230V AC | 10 1/2" | 13 1/4" | €42,146.34 | |
 |

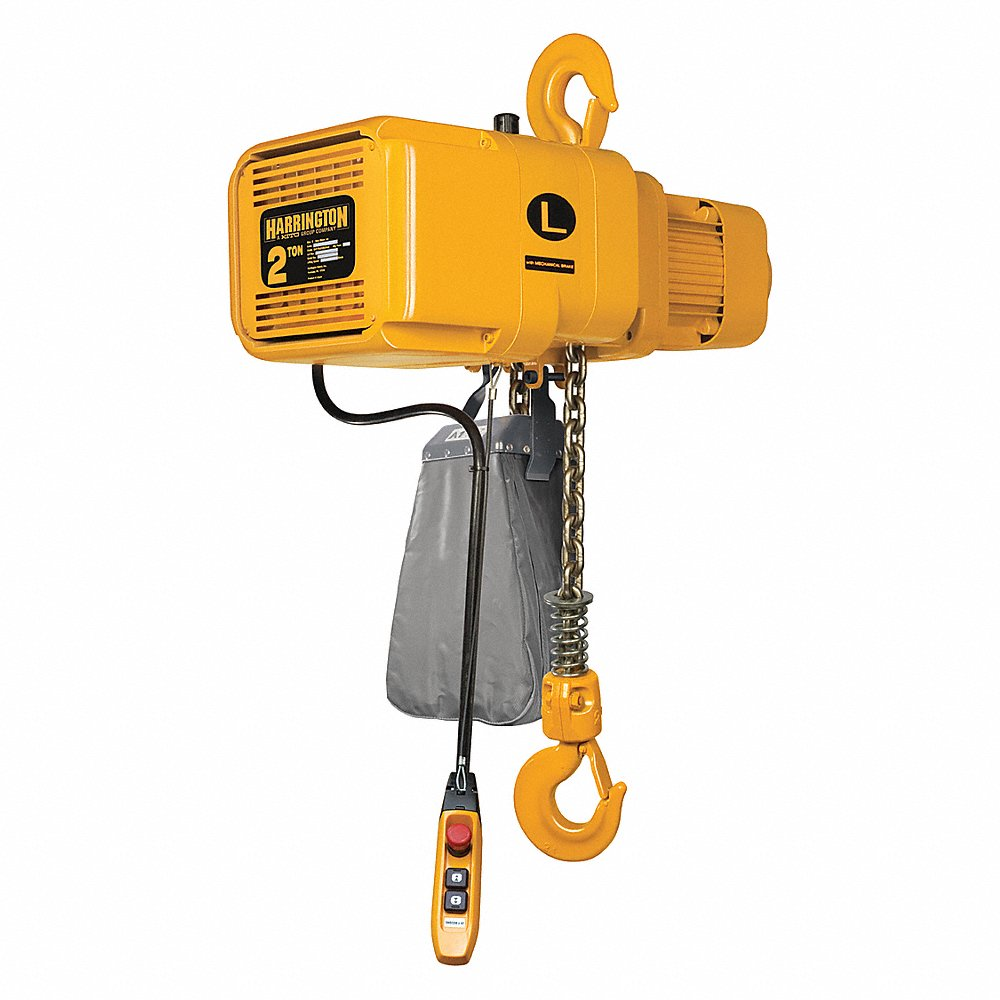

NERM020CD-L-10 / 230V | 4000 lbs. | 1 1/4 hp | 1-7 FPM | 1 1/2" | Programmable By VFD | 230V AC | 8 5/16" | 5 13/32" | €12,792.94 | |
 |
NERM020CD-L-10 / 460V | 4000 lbs. | 1 1/4 hp | 1-7 FPM | 1 1/2" | Programmable By VFD | 460V AC | 8 5/16" | 5 13/32" | €12,792.94 |
