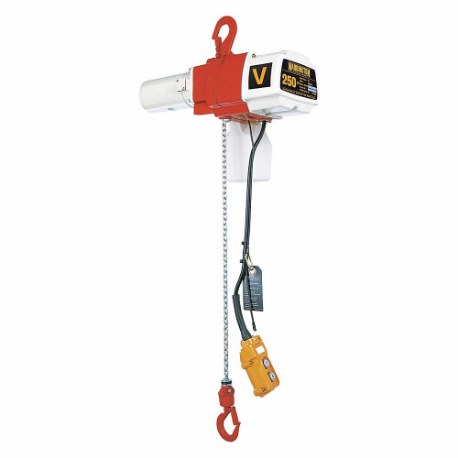

HARRINGTON ED250V-10 Electric Chain Hoist, 250 Lb Load Capacity, 2 Speeds, 120 Volt, 16/26 Fpm, 0.4 Hp, H2
Get it by Friday, Dec 19
10.00% off
€3,092.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Chain Hoist |
| Amps @ Low Volts | 6A |
| Body Depth | 13 13/32" |
| Body Finish | Powder Coated |
| Body Length | 14 5/8" |
| Body Material | Aluminum |
| Body Width | 8 1/8" |
| Brake Type | Weston Style Load Brake |
| Chain Finish | Nickel Plated |
| Classification | H2 |
| Clutch | Friction Clutch |
| Clutch Type | Friction Clutch |
| Color | White, Orange |
| Control | Push Button Pendant |
| Control Cord | 7 ft. |
| Control Type | Push Button Pendant |
| Controller Cord Length | 7 ft. |
| Duty Classification | H2 Light Duty |
| Features | Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Smart Speed Technology, Standard Double-Braking System |
| Finish | Powder Coated |
| Fits Brand | Harrington Hoists Inc |
| Fixed Lift Speed | Not Applicable |
| For Max. Beam Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| For Minimum Beam Height | Not Applicable |
| Headroom | 12 13/32" |
| Headroom Size | 12 13/32" |
| Hoist Ip Rating | IP54 |
| Hoist Mount | Hook With No Trolley |
| Housing Depth | 13 13/32" |
| Housing Length | 14 5/8" |
| Housing Width | 8.109" |
| Includes | Chain Container |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift | 10 ft. |
| Lift Speed | 16-26 FPM |
| Lifting Capacity | 250 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 250 lbs. |
| Lubrication | Grease |
| Manufacturers Warranty Length | 1 yr. |
| Max Current Draw | 6A |
| Maximum Lift Speed | 26 FPM |
| Maximum Lifting Length | 10 ft. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 12 13/32" |
| Min. Radius Curve | Not Applicable |
| Minimum Lift Speed | 16 FPM |
| Minimum Retracted Length | 12 13/32" |
| Motor Hp | 3/8 hp |
| Mount Type | Hook Mounted No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Number Of Speeds | Variable |
| Operating Voltage | 120V AC |
| Overload Protection Included | No |
| Phase | 1 |
| Reeving | 1 |
| Resistance Properties | Wear Resistant |
| Speed Programmability | Programmable By Internal Controls |
| Starts And Stops Per Hour | 120 |
| Sub-brand | Single Phase Electric Hoist |
| Thermal Protection | No |
| Tonnage - Lifting Capacity | 0.125 ton. |
| Trolley Wheel Dia. | Not Applicable |
| Trolley Wheel Material | Not Applicable |
Shipping Info:
| Ship weight (kg) | 12.87 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Motor Hp | Phase | Duty Classification | Lifting Capacity | Mount Type | Mounting Type | Lift Length | Body Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ED1000V-10 | 3/4 hp | 1 | H2 - Light Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Powder Coated | €5,615.24 | |
| ED1000V-15 | 3/4 hp | 1 | H2 - Light Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Powder Coated | €6,824.43 | |
| NER005L-10 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005L-20 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005L-15 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005S-20 | 1 1/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,967.00 | |
| NER005S-15 | 1 1/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,967.00 |
