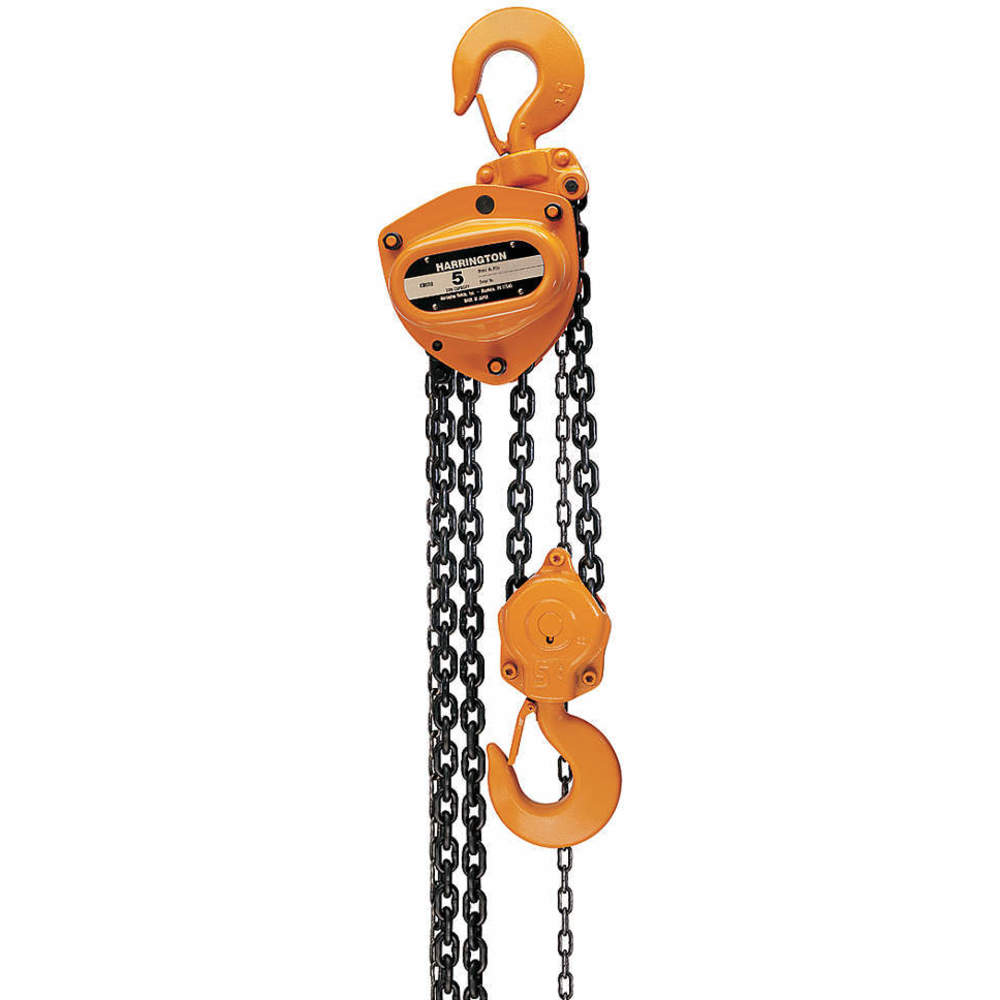

HARRINGTON CB025-8 Steel Hand Chain Hoist 2500 Lb 8 Feet
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Steel Hand Chain Hoist |
| Body Depth | 7 19/32" |
| Body Material | Steel |
| Body Width | 9 3/16" |
| Brake Type | Weston Style |
| Chain Grade | Grade 100 |
| Chain Material | Manganese Alloy |
| Color | Yellow |
| Depth | 7.609" |
| Features | Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, MainteNaNce-Free Slip Clutch |
| For Max. Beam Flange Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Min. Beam Flange Height | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| Headroom | 16 1/2" |
| Hoist Overload Protection | Yes |
| Hook Opening | 1 5/8" |
| Housing Depth | 7 1/2" |
| Housing Length | 15 1/2" |
| Housing Width | 9 1/4" |
| Included Components | Safety Latch Hooks |
| Includes | Slip Clutch |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Length | 15 1/2" |
| Lever Length | Not Applicable |
| Lift Length | 8 ft. |
| Lifting Capacity | 5000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1 19/32" |
| Lifting Hook Type | Hook With Safety Latch |
| Load Capacity | 2500 lbs. |
| Manufacturers Warranty Length | 2 yrs. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 16 1/2" |
| Minimum Retracted Length | 16 1/2" |
| Mount Type | Hook Mounted - No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Operating Position | Vertical |
| Overload Protection | Yes |
| Overload Protection Included | Yes |
| Power Source | Manual |
| Pull Force To Lift Rated Load | 66 lbs. |
| Pull To Lift Rated Load | 66 lbs. |
| Pull To Lift Rated Load | 66 lb. |
| Resistance Properties | Abrasion Resistant, Corrosion Resistant |
| Tonnage - Lifting Capacity | 2.5 ton. |
| Width | 9.203" |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 26.67 |
| HS code | 8425190000 |
Product Variants
| Product | Model | Lifting Capacity | Pull Force To Lift Rated Load | Headroom | Lifting Hook Opening Width | Body Width | Body Depth | Depth | Min. Between Hooks | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB010-8 | 2000 lbs. | 58 lbs. | 11 19/32" | 1 3/32" | 6 5/16" | 6 13/32" | 6.406" | 11 1/2" | €708.58 |
