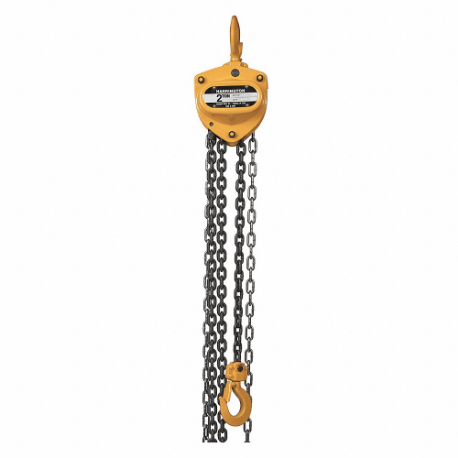

HARRINGTON CB020-10 Manual Chain Hoist, 4000 lb Load Capacity, 72 lb Pull to Lift Rated Load
Get it by Tuesday, Feb 17
10.00% off
€2,268.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Manual Chain Hoist |
| Body Depth | 7 3/16" |
| Body Material | Steel |
| Body Width | 8" |
| Brake Type | Weston Style |
| Chain Grade | Grade 100 |
| Chain Material | Manganese Alloy |
| Color | Yellow |
| Features | Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch |
| Headroom | 14 13/16" |
| Hoist Lift | 10 ft. |
| Hoist Mount | Hook Mounted No Trolley |
| Hoist Overload Protection | Yes |
| Hook Opening | 1 1/2" |
| Housing Depth | 7 1/4" |
| Housing Length | 14 3/4" |
| Housing Width | 8" |
| Included Components | Safety Latch Hooks |
| Includes | 8-1/2 ft. Hand Chain |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift Length | 10 ft. |
| Lifting Capacity | 4000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1 13/32" |
| Lifting Hook Type | Hook With Safety Latch |
| Load Capacity | 4000 lbs. |
| Manufacturers Warranty Length | 2 yrs. |
| Maximum Lifting Length | 10 ft. |
| Min. Between Hooks | 14 3/4" |
| Minimum Retracted Length | 14 13/16" |
| Mount Type | Hook Mounted No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Overload Protection Included | Yes |
| Pull Force To Lift Rated Load | 72 lbs. |
| Pull To Lift Rated Load | 72 lbs. |
| Resistance Properties | Abrasion Resistant, Corrosion Resistant |
| Sub-brand | Manual Hand Chain Hoist |
| Tonnage - Lifting Capacity | 2 ton. |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Headroom | Lifting Hook Opening Width | Overload Protection Included | Body Material | Body Width | Body Depth | Color | Lift Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CF005-10 | 12 13/16" | 1 3/32" | No | Die-Cast Aluminum | 5 29/32" | 5 13/32" | Yellow | 10 ft. | €450.26 | |
| CF005-15 | - | - | - | - | - | - | - | 15 ft. | €589.89 | |
| CF005-20 | 12 13/16" | 1 3/32" | No | Die-Cast Aluminum | 5 29/32" | 5 13/32" | Yellow | - | €722.50 | |
| CF010-10 | 14 19/32" | 1 3/32" | No | Die-Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 10 ft. | €519.36 | |
| CF010-15 | 14 19/32" | 1 3/32" | No | Die-Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 15 ft. | €643.11 | |
| CF010-20 | 14 19/32" | 1 3/32" | No | Die-Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 20 ft. | €779.86 | |
| CF015-10 | 17 5/16" | 1 5/16" | No | Die-Cast Aluminum | 8" | 6" | Yellow | 10 ft. | €808.64 |
